Rear Quarter Glass: Removal

Remove the glass in the same procedure as for windshield glass.

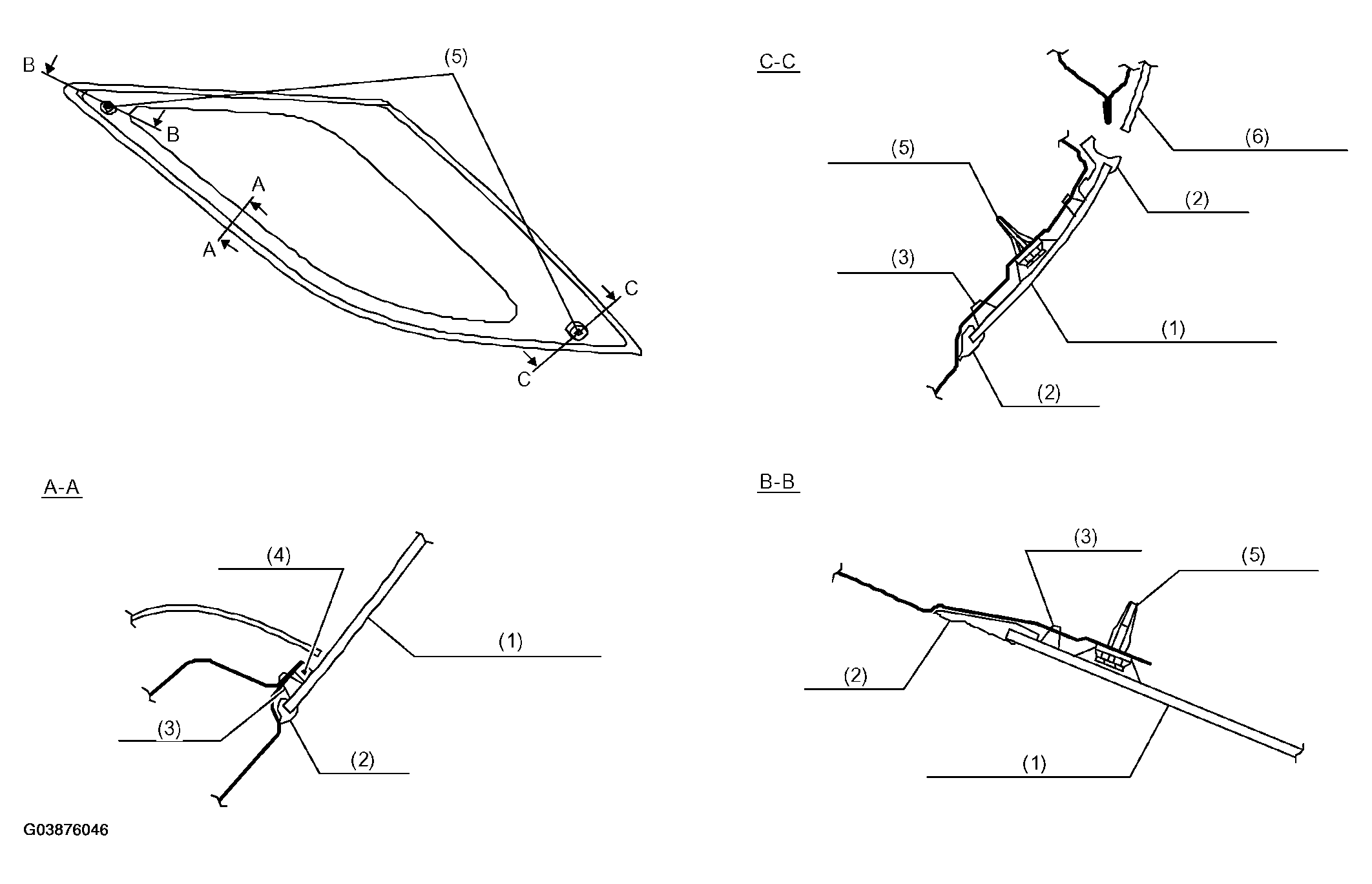

Fig 1: Removing Rear Quarter Glass

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Rear quarter glass
2. Molding
3. Adhesive
4. Dam rubber
5. Locating pin
6. Rear gate glass
