Horn Relay: Inspection

Measure the horn relay resistance between terminals (indicated in table below) when connecting the terminal No. 4 to battery positive terminal and terminal No. 3 to battery ground cable.

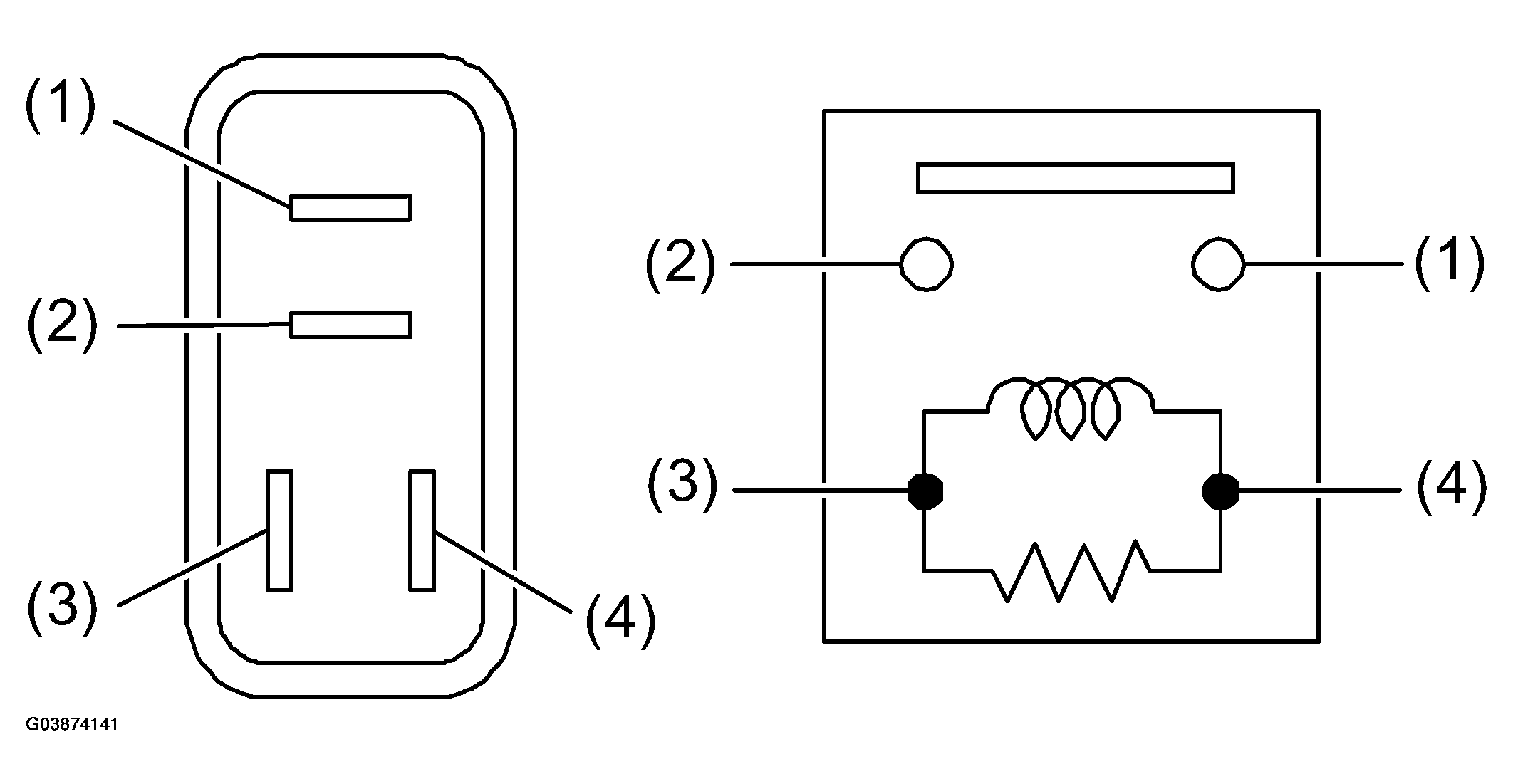

Fig 1: Horn Relay Circuit Diagram
G03874141Courtesy of SAAB-SCANIA OF AMERICA, INC.
HORN RELAY RESISTANCE SPECIFICATIONS

Current Terminal No. Standard
Flow 1 and 2 Less than 1 O
No Flow More than 1 MO
