Horn Switch: Inspection

Measure the resistance between horn switch terminal and airbag module bracket.

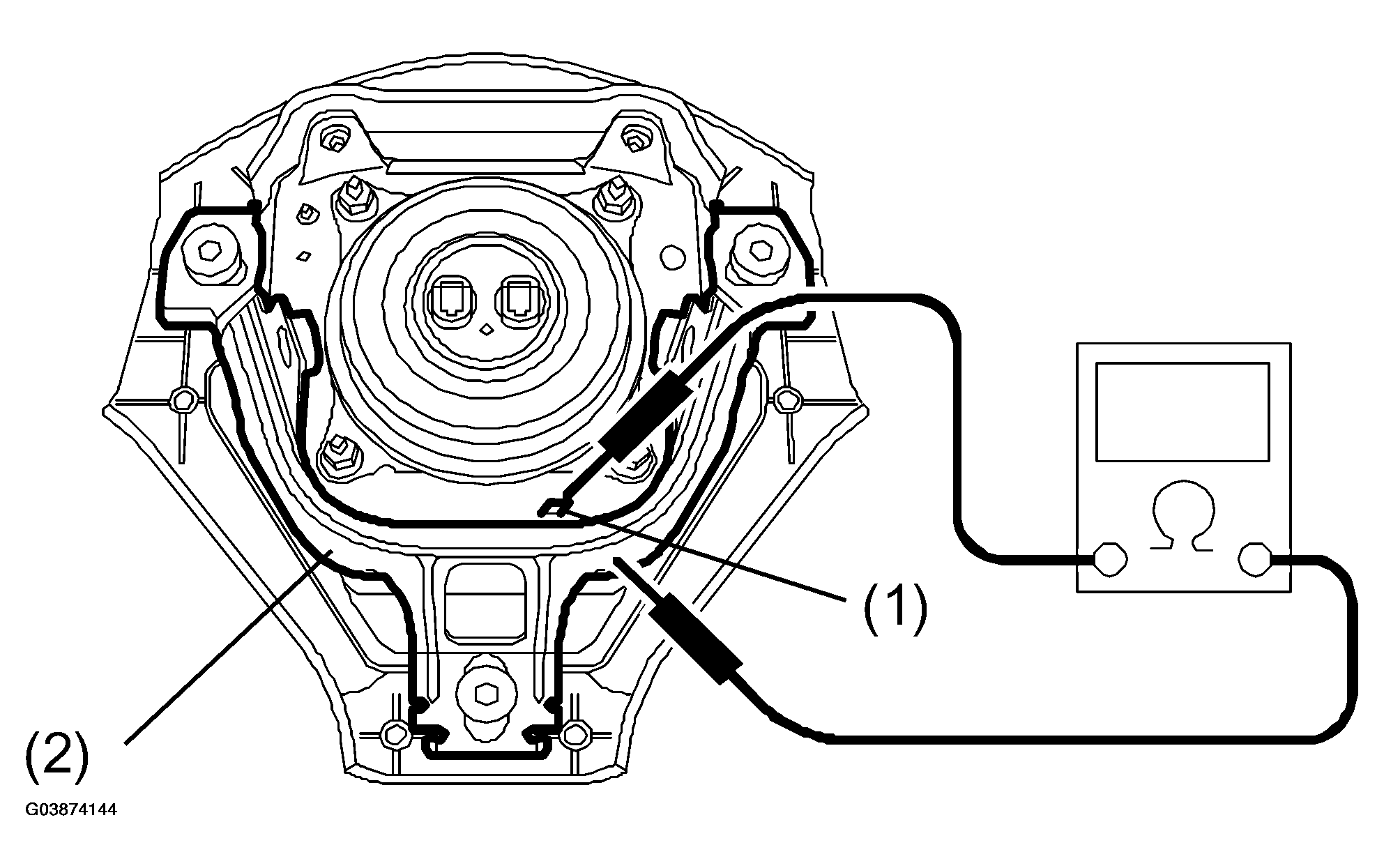

Fig 1: Measuring Resistance Between Horn Switch Terminal And Airbag Module Bracket
G03874144Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Horn switch terminal
  2. Airbag module bracket
RESISTANCE SPECIFICATIONS

Switch position Terminal No. Resistance
When airbag module bracket is pushed. Horn switch terminal and Airbag module bracket Less than 1 O
When airbag module bracket is not pushed. More than 1 M O
