Repair and Diagnosis: Electrical: Horns: Adjustment/Replacement/Inspection: Horn: Inspection

With 12 V direct current supplied between horn terminal and case ground, check that the horn sounds properly.

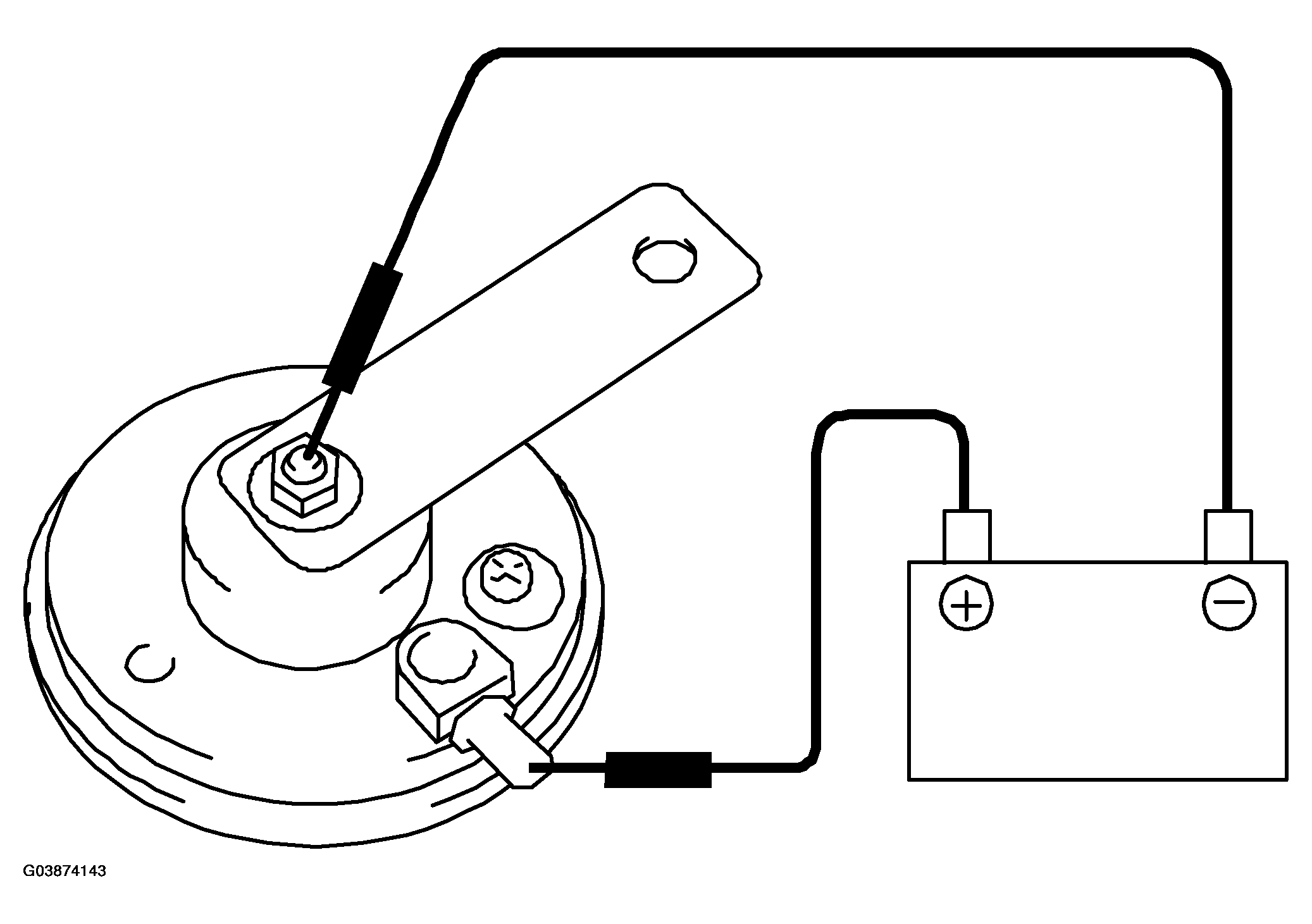

Fig 1: Checking Horn Sounds

Courtesy of SAAB-SCANIA OF AMERICA, INC.
