Oil Pump: Removal

Disconnect the ground cable from battery.

Remove the pulley belt cover.

Loosen the belt tension adjusting bolt and generator securing bolt, and then remove the power steering pump V-belt.

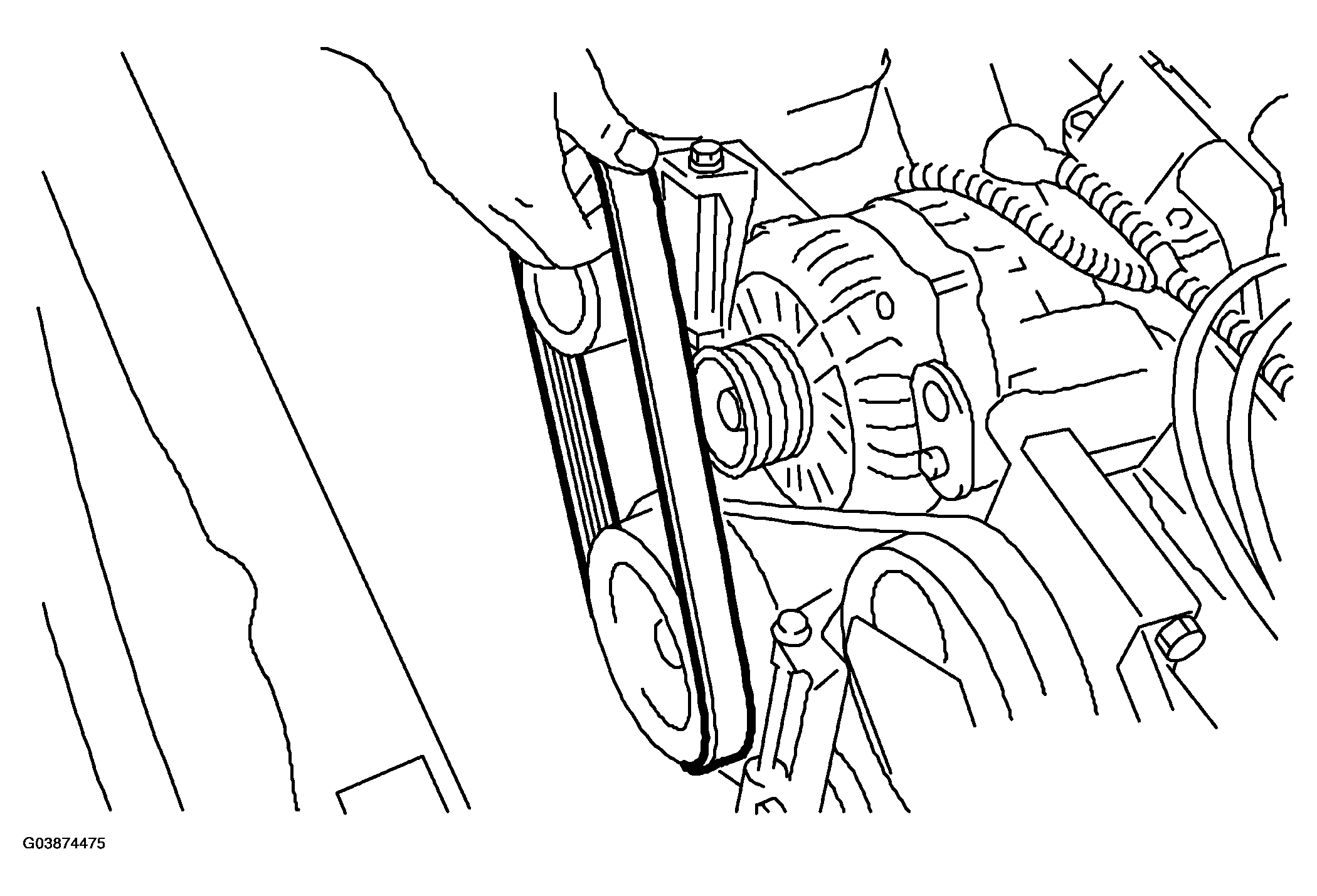

Fig 1: Removing Power Steering Pump V-Belt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector from power steering pump switch.

Disconnect the pipe C and suction hose from oil pump.

IMPORTANT:

Do not allow fluid from the hose end to come into contact with pulley belt.
To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

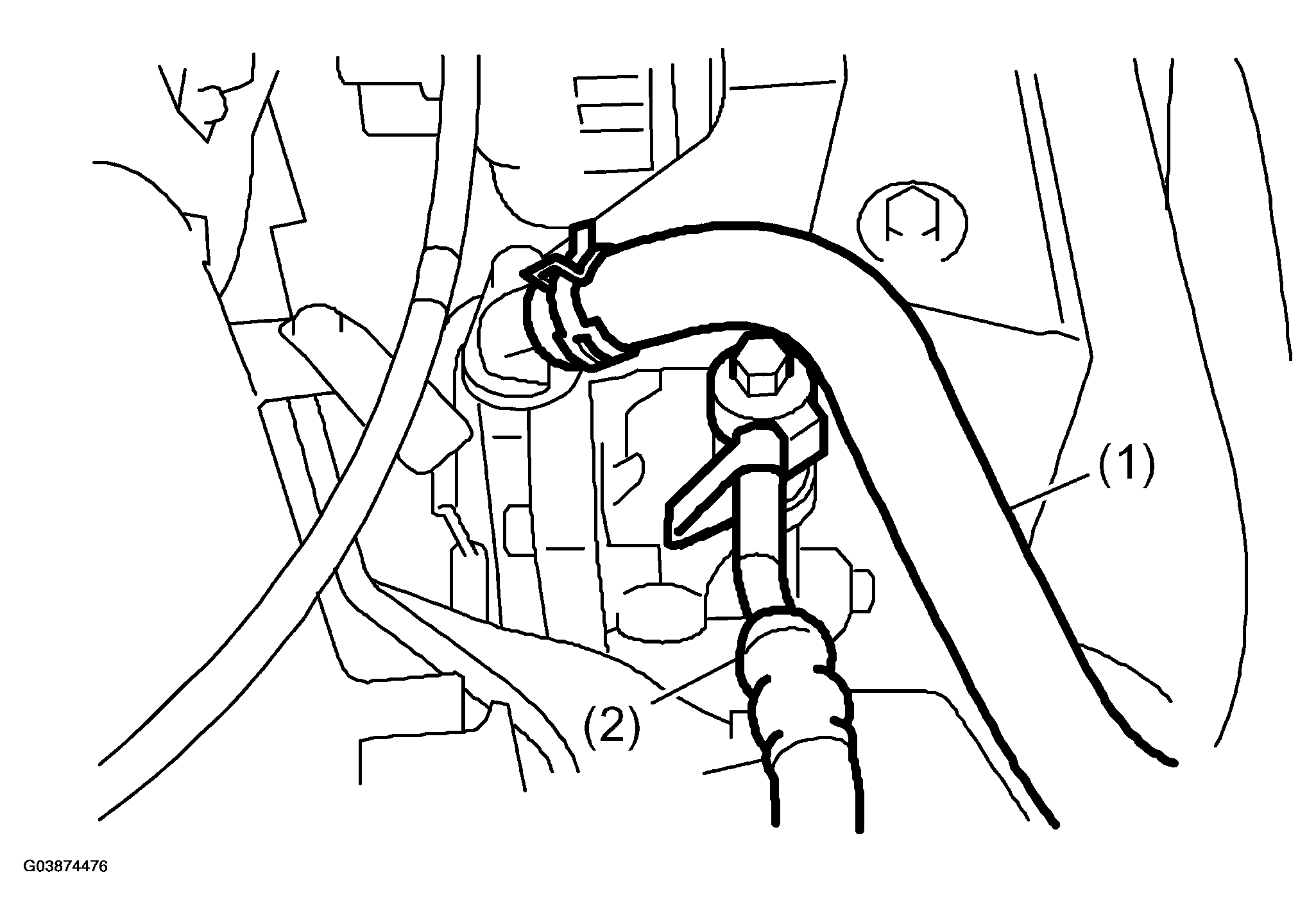

Fig 2: Disconnecting Pipe C And Suction Hose From Oil Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts which install the power steering pump bracket.

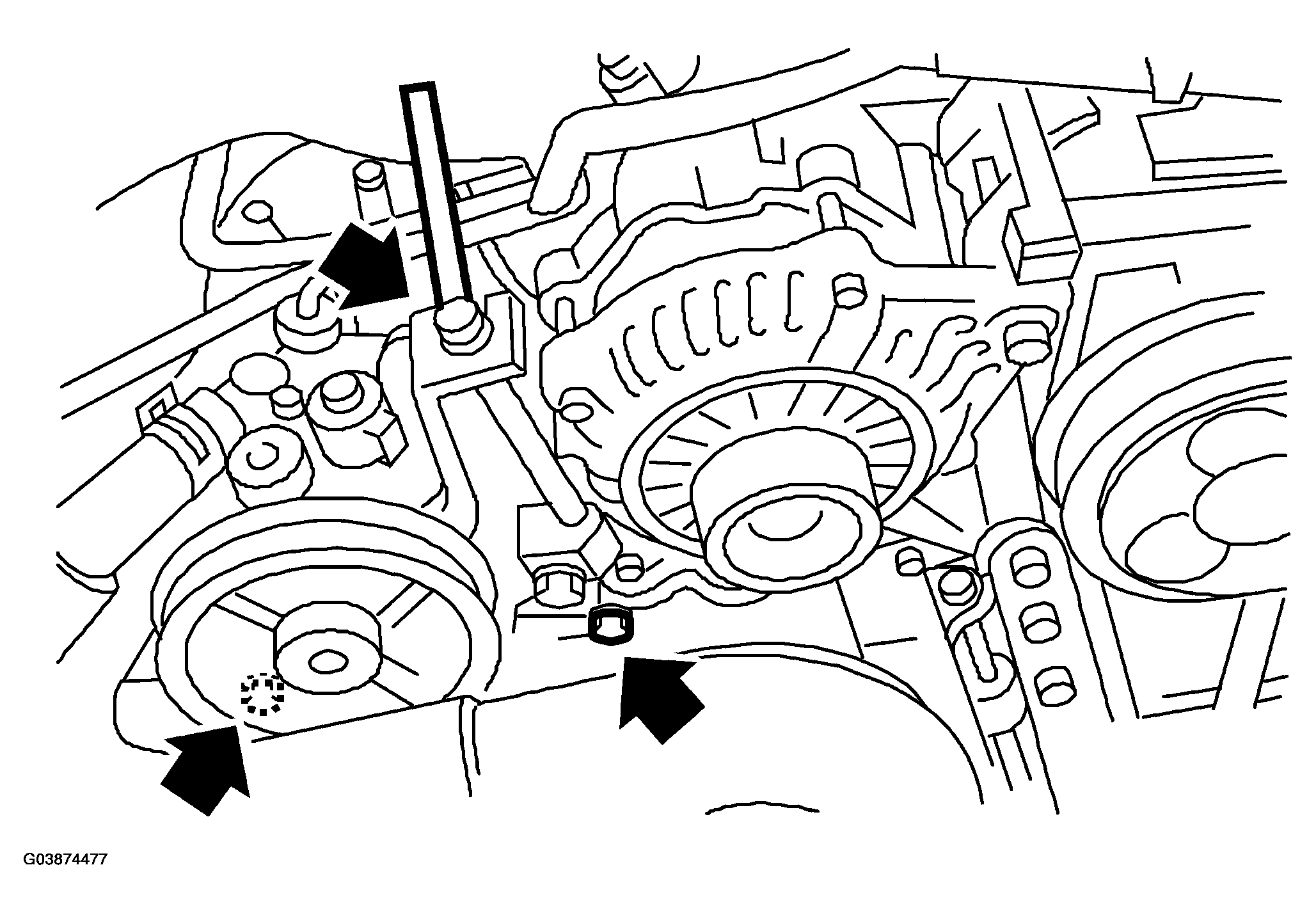

Fig 3: Removing Bolts Which Install Power Steering Pump Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Place the oil pump bracket in a vise, remove the two bolts from front side of oil pump.

IMPORTANT: Do not place the oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

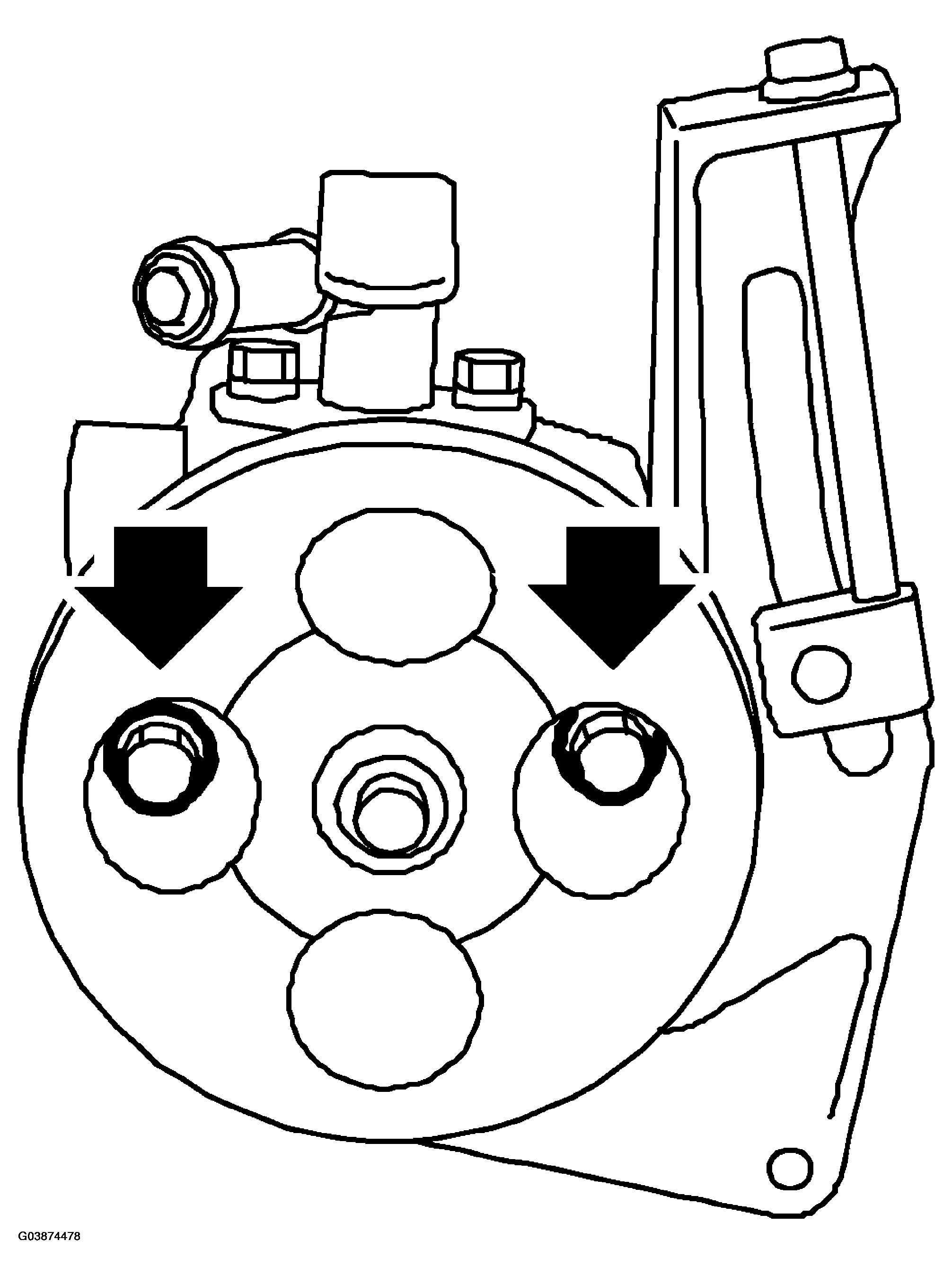

Fig 4: Removing Bolts From Front Side Of Oil Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolt from the rear side of oil pump.

Disassemble the oil pump and bracket by inserting a flat tip screwdriver as shown in the figure.

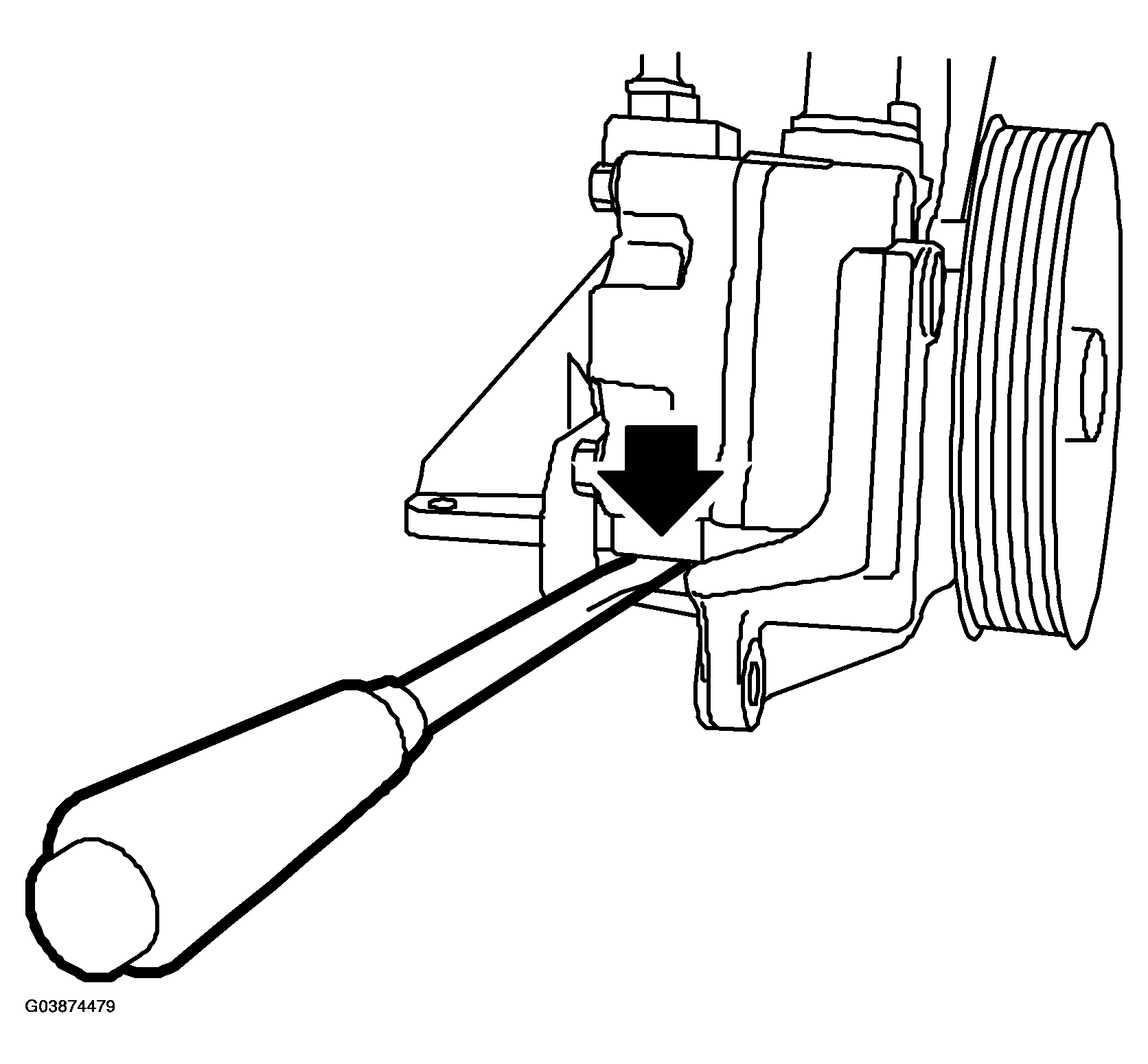

Fig 5: Disassembling Oil Pump And Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.
