Reservoir Tank: Installation
Install the reservoir tank to bracket.
Connect the pipes D to return hose and suction hose to oil pump.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

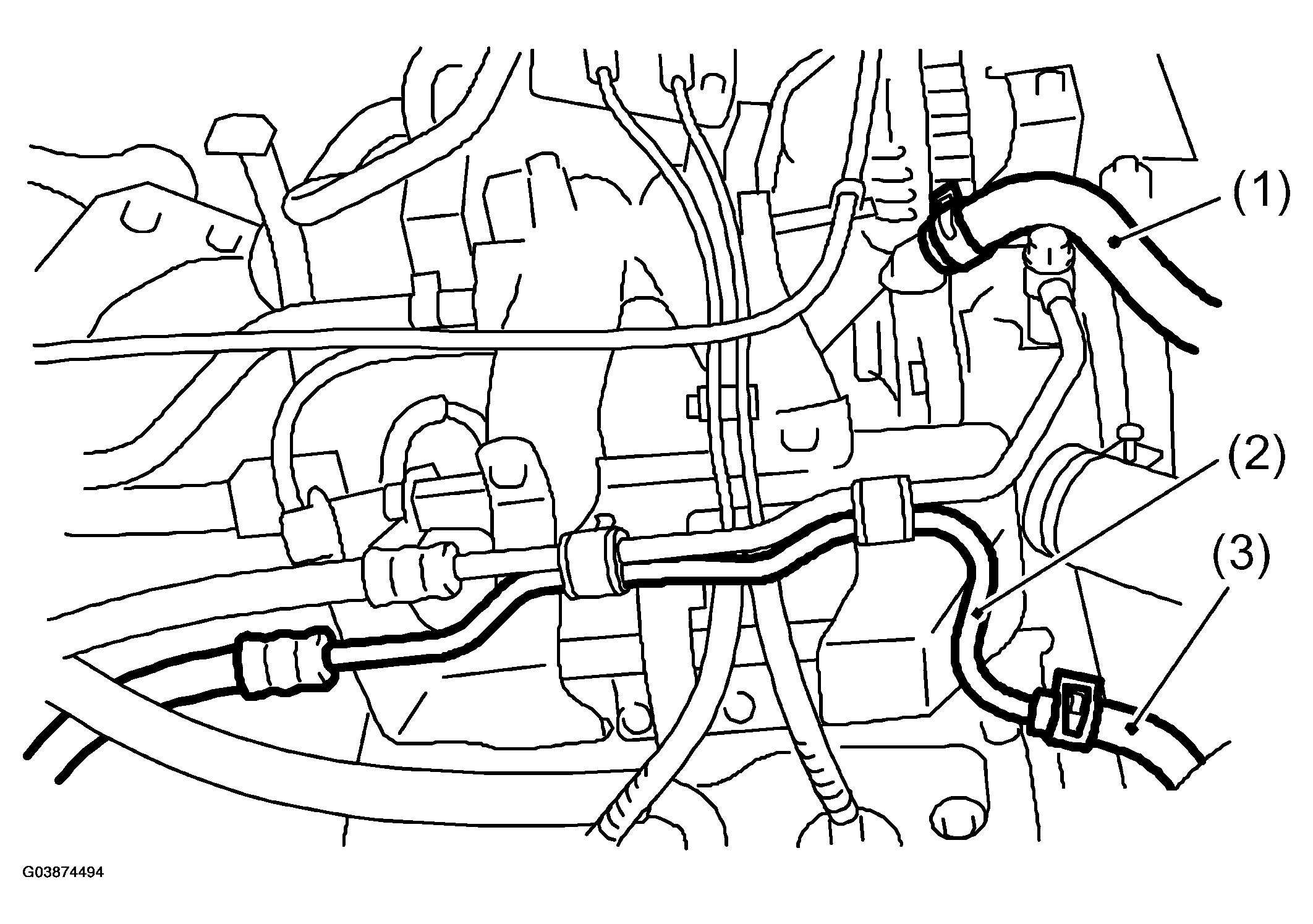

- Suction hose
- Pipe D
- Return hose
Feed the power steering fluid to the specified level.
