Clutch Fluid: Inspection

Park the vehicle on a level surface.

Inspect the fluid level using scale on the outside of the reservoir tank. If the level is below "MIN", add fluid to bring it up to "MAX", and also inspect for leakage.

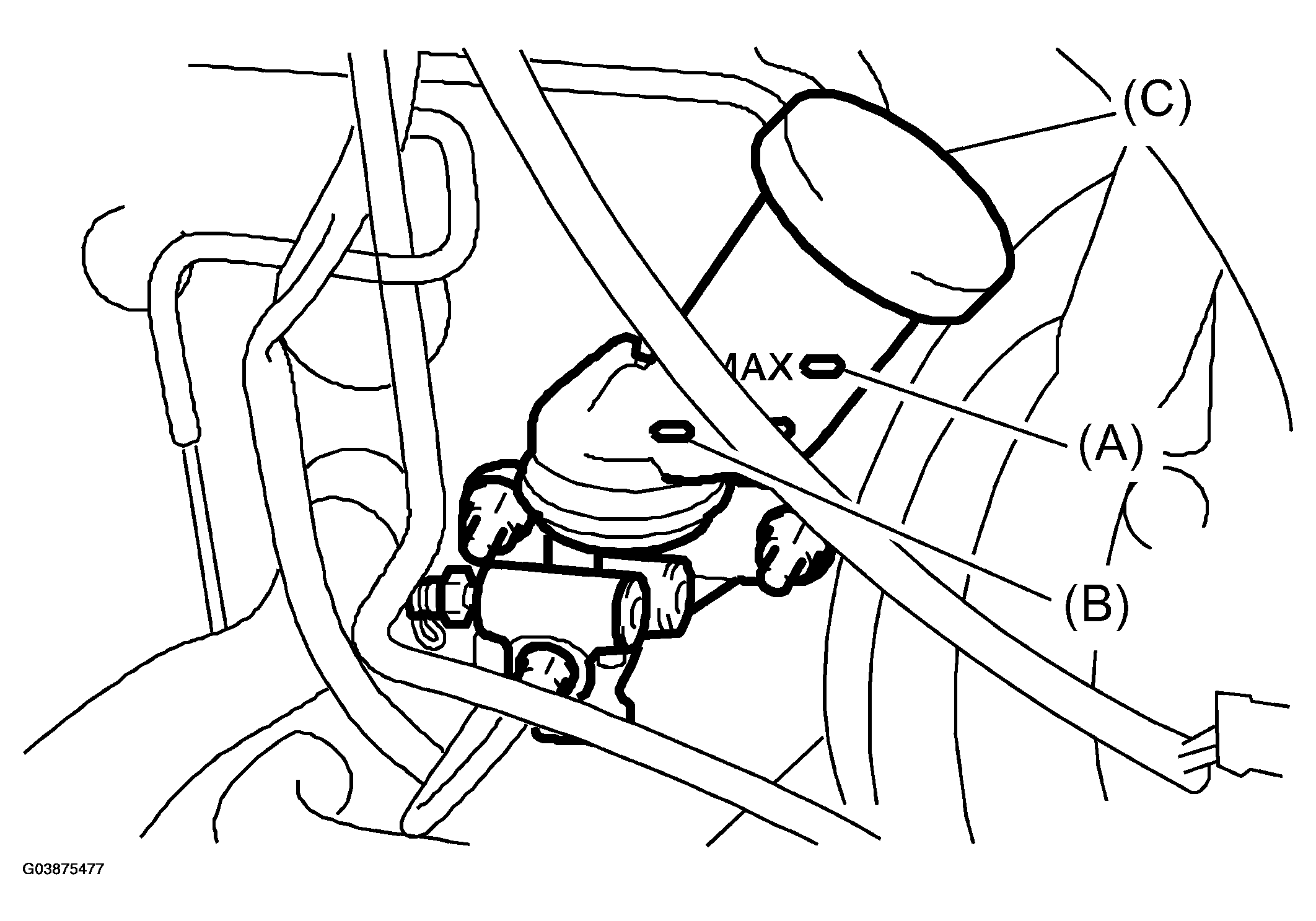

Fig 1: Inspecting Fluid Level

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Max. level
2. Min. level
3. Reservoir tank
