Clutch Switch: Adjustment

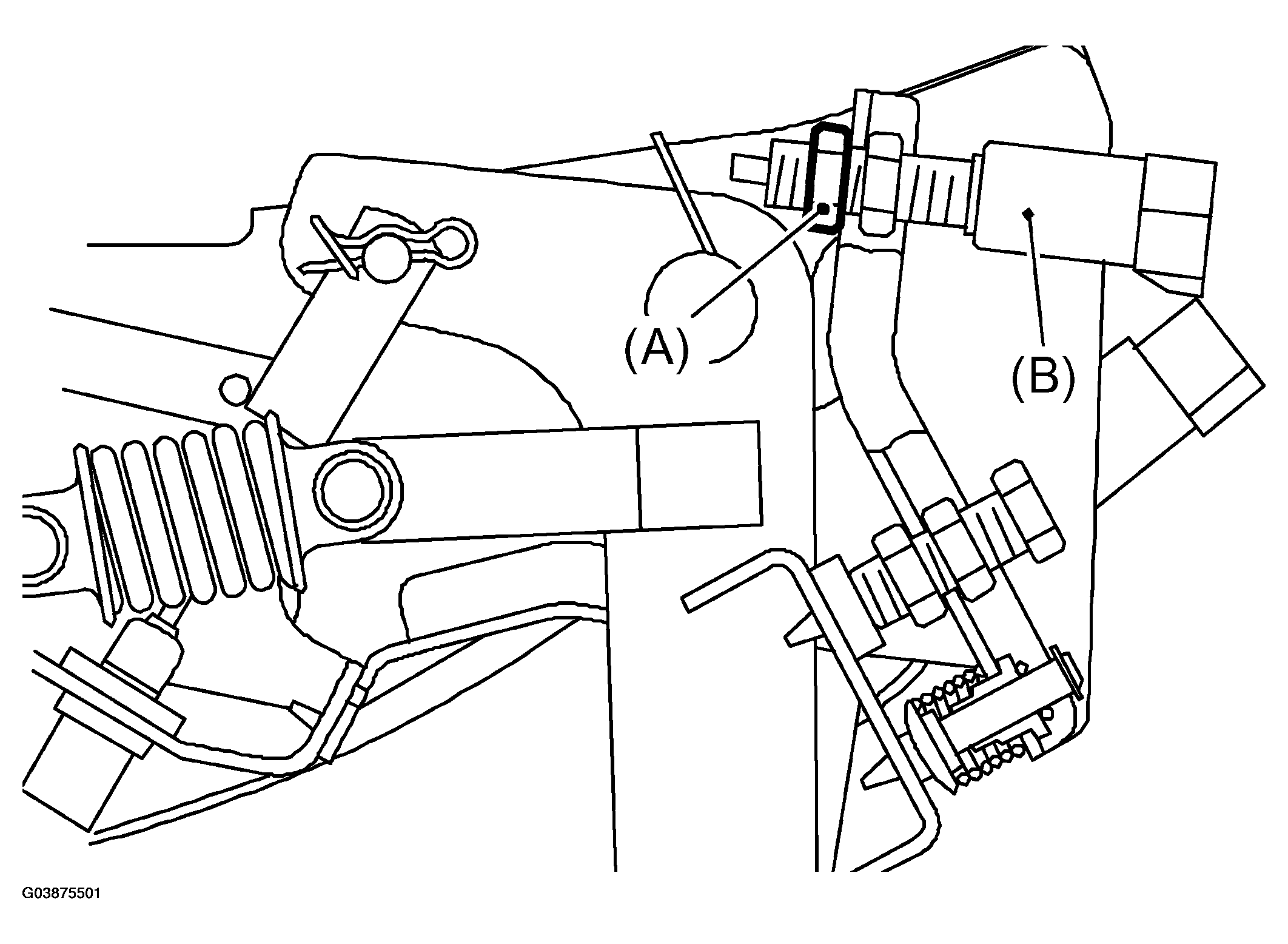

Loosen the clutch switch mounting lock nut (Starter interlock).

1. Lock nut
2. Clutch switch (Starter interlock)

Fully depress the clutch pedal.

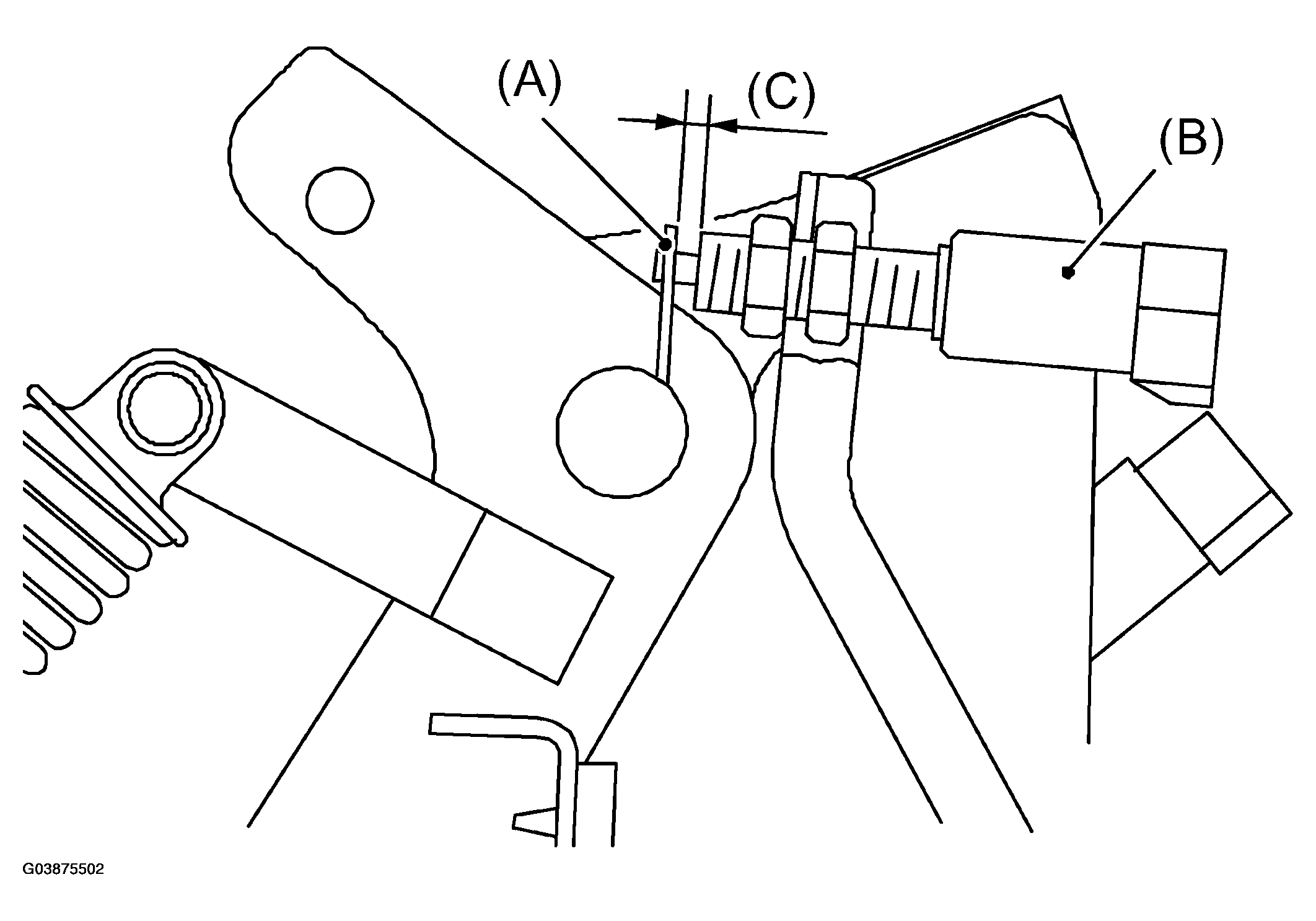

Adjust the clutch pedal plate and clutch switch so that the gap between them is 3 - 3.5 mm (0.12 - 0.14 in).

1. Plate
2. Clutch switch (Starter interlock)
3. 3 - 3.5 mm (0.12 - 0.14 in)

Tighten the lock nut.

Tightening torque:

8 Nm (0.8 kgf-m, 5.9 ft-lb)
