Master Cylinder: Removal

Thoroughly drain the brake fluid from reservoir tank.

Remove the snap pin, clevis pin and separate the push rod of master cylinder from clutch pedal.

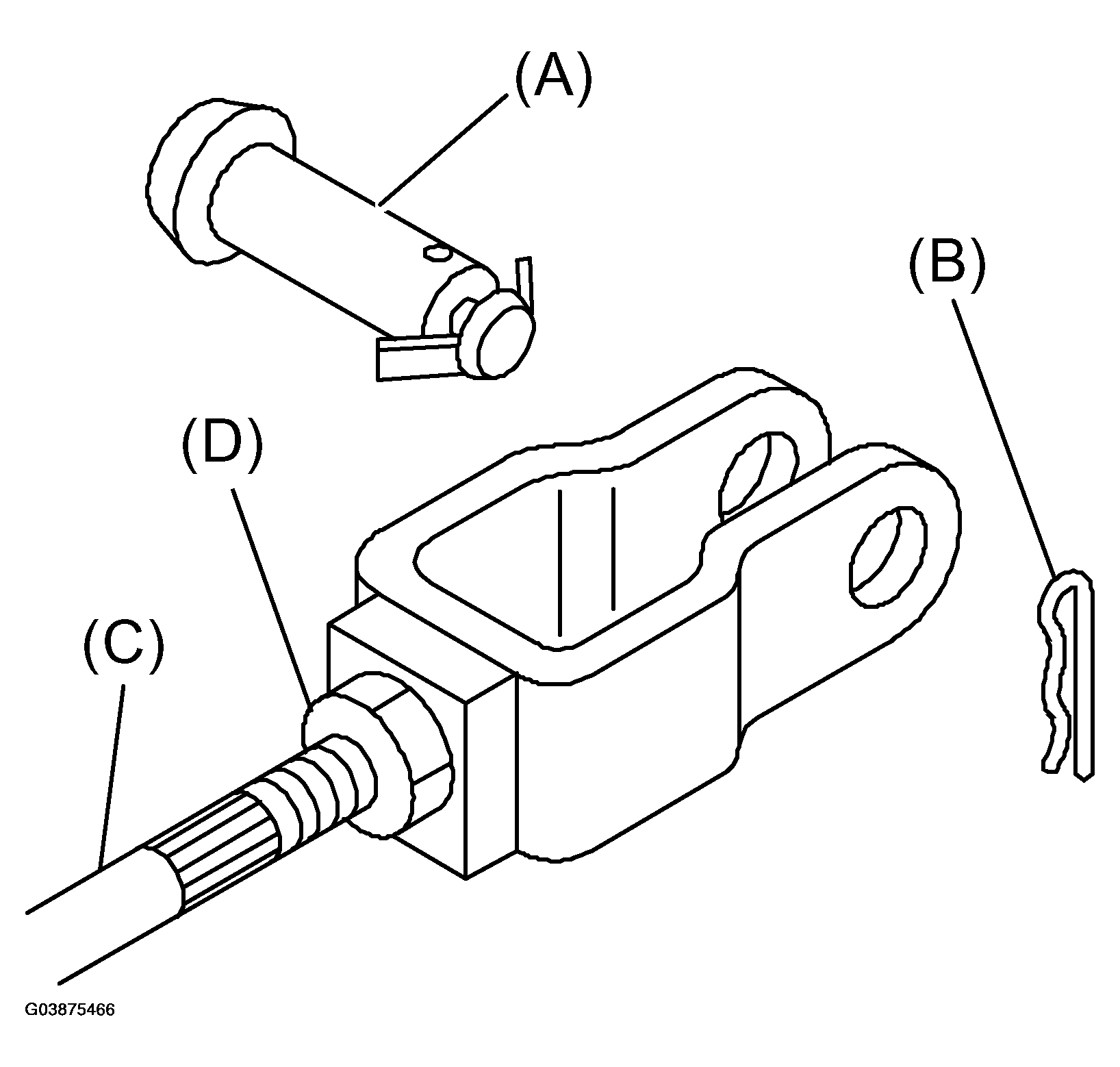

Fig 1: Separating Push Rod Of Master Cylinder From Clutch Pedal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Clevis pin
Snap pin
Push rod
Lock nut

Remove the air intake chamber (Saab 9-2X 2.5i Linear).

Remove the intercooler (Saab 9-2X 2.0T Aero).

Disconnect the clutch pipe from master cylinder.

Remove the master cylinder and reservoir tank as a unit.

IMPORTANT: Be extremely careful not to spill brake fluid. Brake fluid split on the vehicle body will harm the paint surface; wipe it off quickly if split.

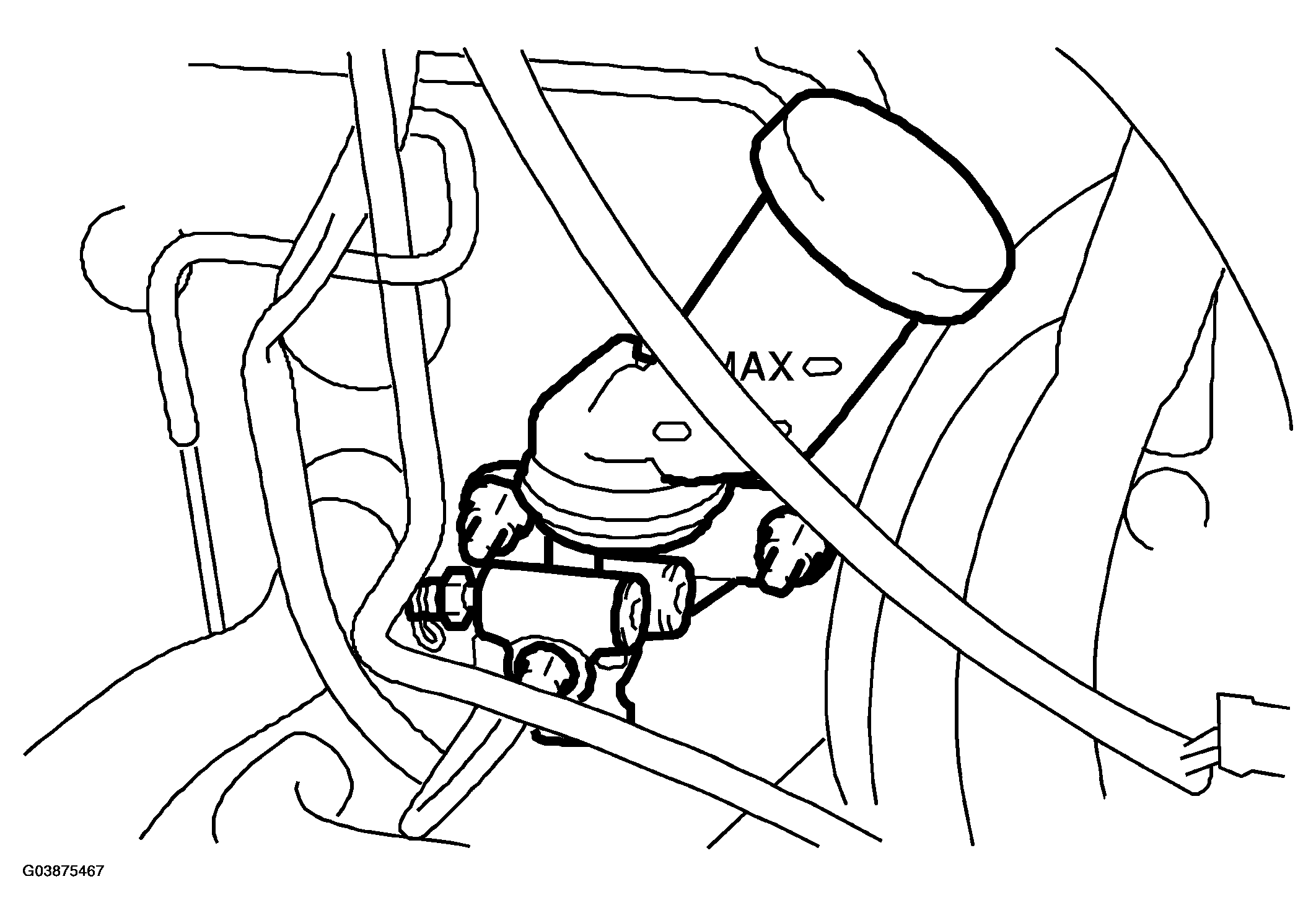

Fig 2: Removing Master Cylinder And Reservoir Tank

Courtesy of SAAB-SCANIA OF AMERICA, INC.
