Master Cylinder

Saab 9-2X 2.5i Linear

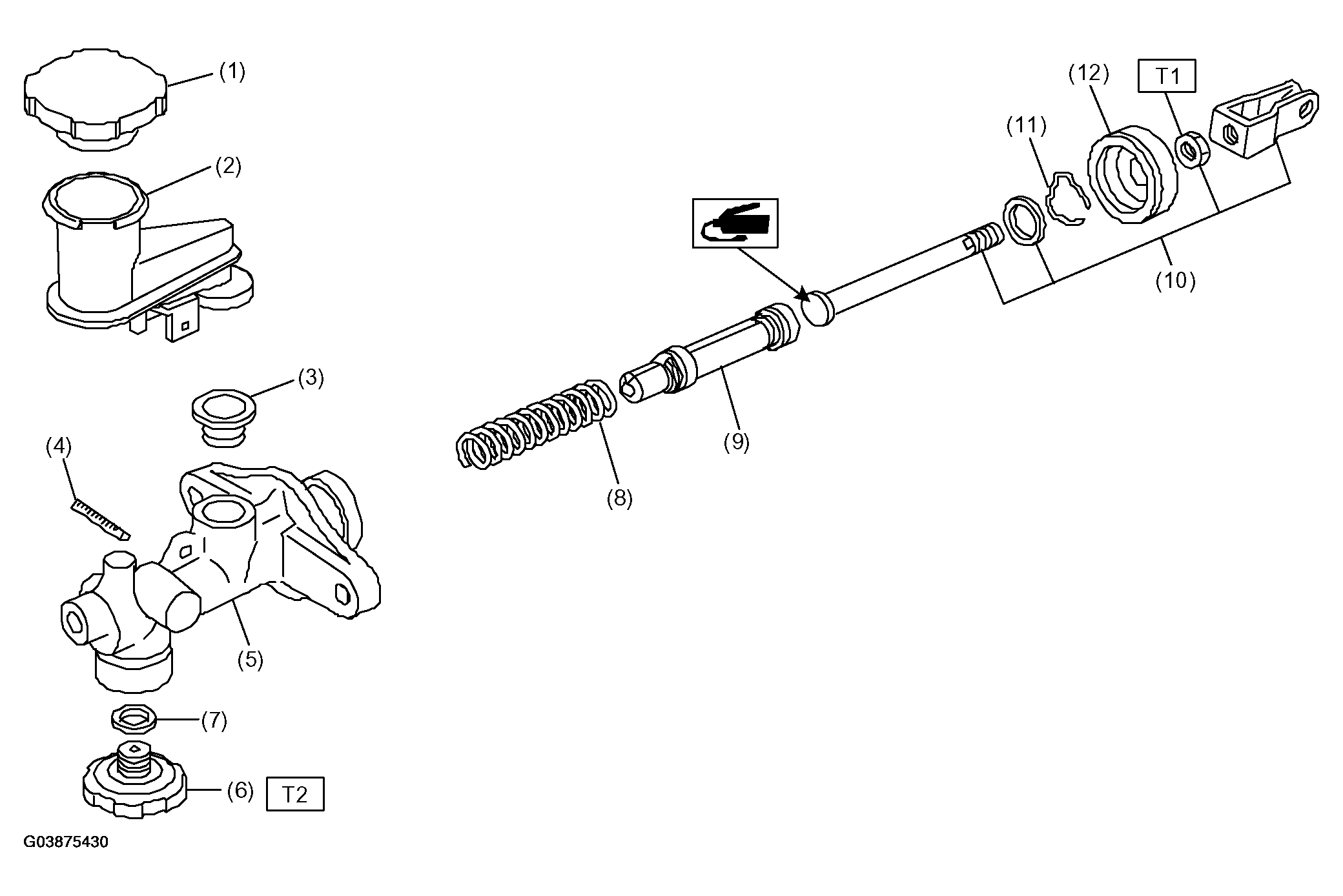

Fig 1: Identifying Master Cylinder Components (Saab 9-2X 2.5i Linear)
G03875430Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Reservoir cap
  2. Reservoir tank
  3. Oil seal
  4. Straight pin
  5. Master cylinder
  6. Clutch damper
  7. Gasket
  8. Return spring
  9. Piston
  10. Push rod ASSY
  11. Piston stop ring
  12. Cylinder boot

Tightening torque: Nm (kgf-m, ft-lb)

T1: 10 (1.0, 7)

T2: 46.6 (4.75, 34.4)

Saab 9-2X 2.0T Aero

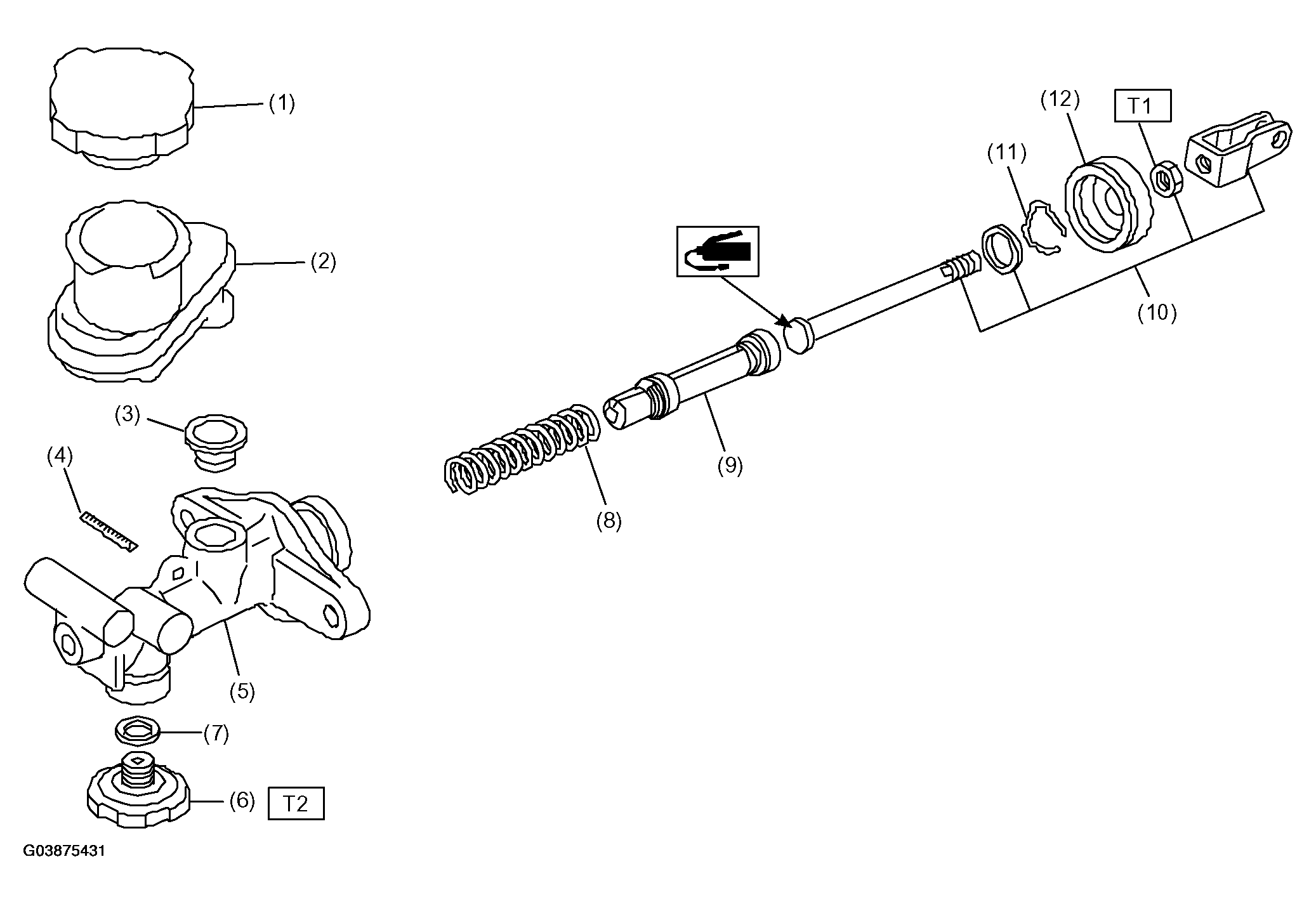

Fig 2: Identifying Master Cylinder Components (Saab 9-2X 2.0T Aero)
G03875431Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Reservoir cap
  2. Reservoir tank
  3. Oil seal
  4. Straight pin
  5. Master cylinder
  6. Clutch damper
  7. Gasket
  8. Return spring
  9. Piston
  10. Push rod ASSY
  11. Piston stop ring
  12. Cylinder boot

Tightening torque: Nm (kgf-m, ft-lb)

T1: 10 (1.0, 7)

T2: 46.6 (4.75, 34.4)
