Differential Case Assembly

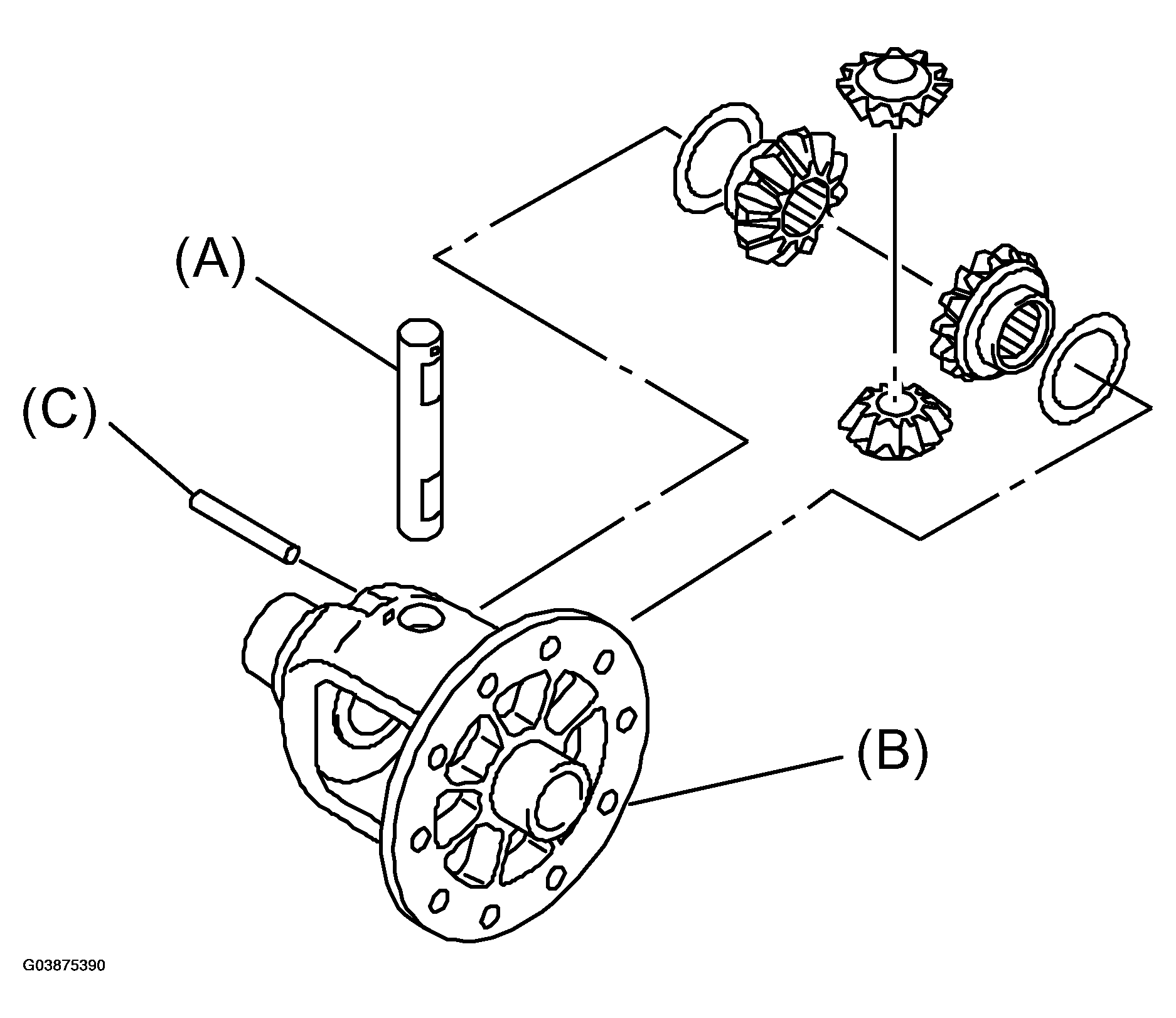

Install the bevel gear and bevel pinion together with washers, and insert pinion shaft.
NOTE:
Face the chamfered side of washer toward gear.
- Bevel pinion
- Bevel gear
- Pinion shaft

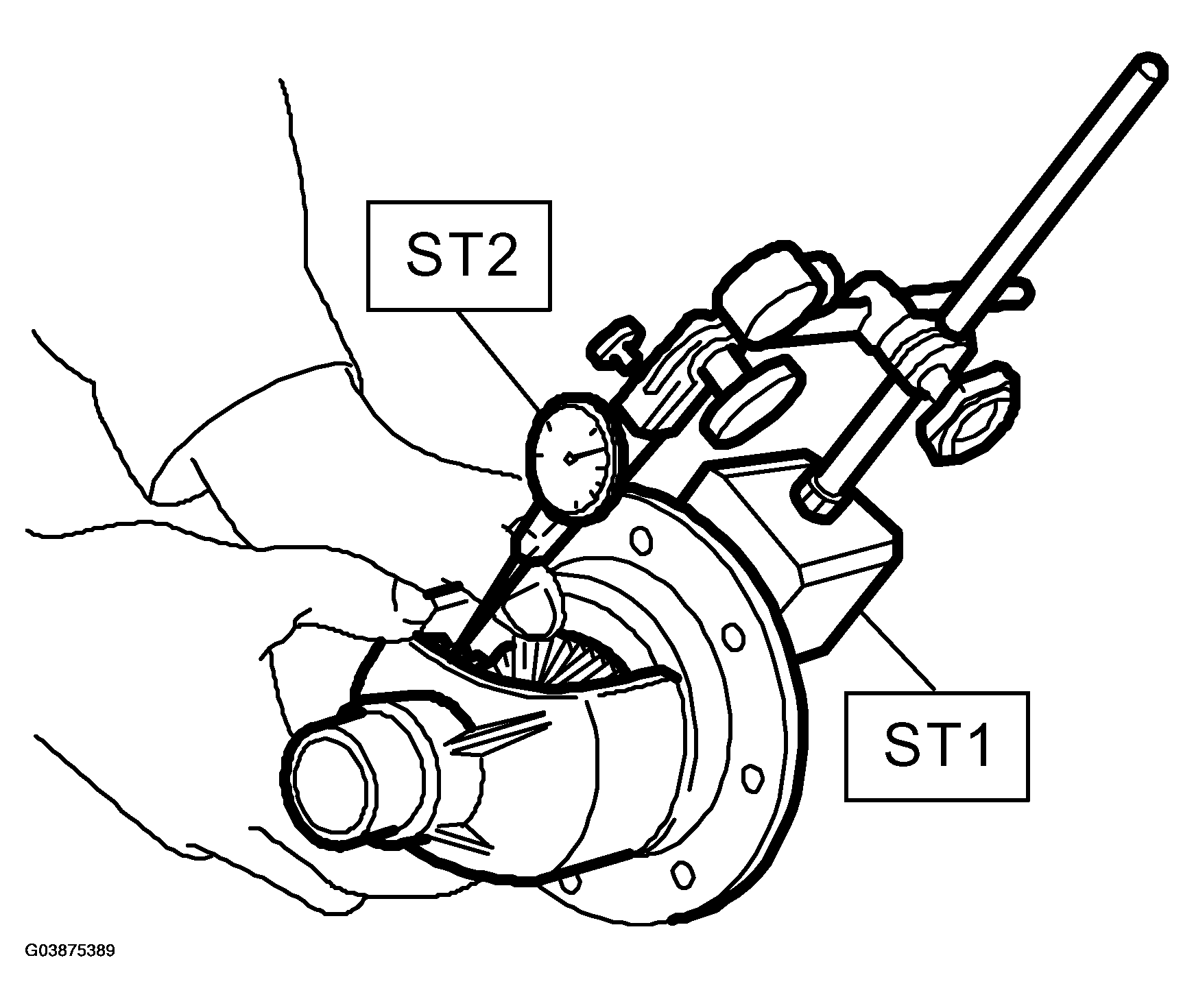

Measure the backlash between bevel gear and pinion. If it is not within specifications, install a suitable washer to adjust it.
NOTE:
Be sure the pinion gear tooth contacts adjacent gear teeth during measurement.
ST1 32005094 MAGNET BASE
ST2 32005095 DIAL GAUGE
Standard backlash:
0.13 - 0.18 mm (0.0051 - 0.0071 in)

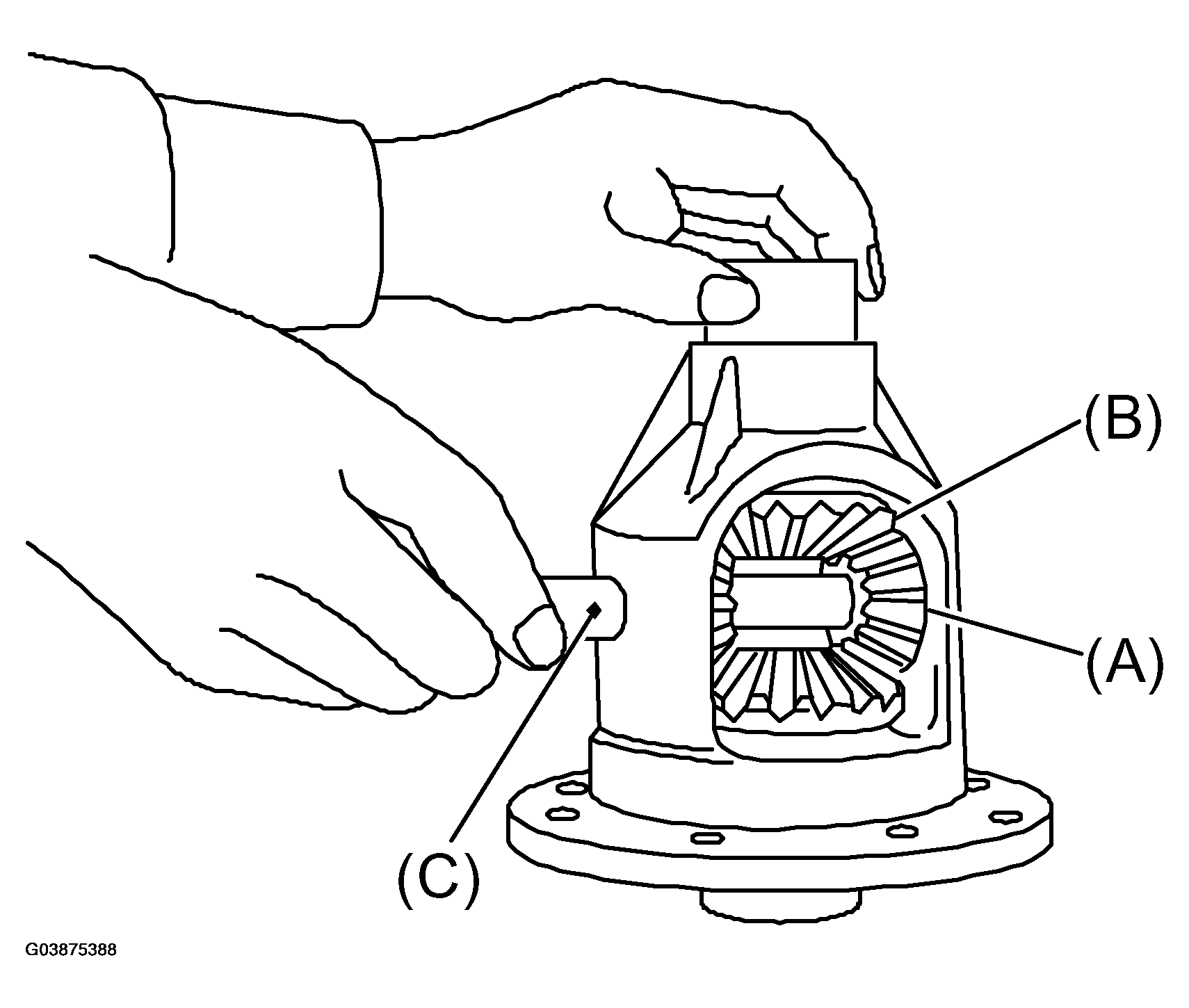

Align the pinion shaft and differential case at their holes, and drive the straight pin into holes from the hypoid driven gear side, using ST.
NOTE:
Lock the straight pin after installing.
ST 32005181 REMOVER
- Pinion shaft
- Differential case
- Straight pin

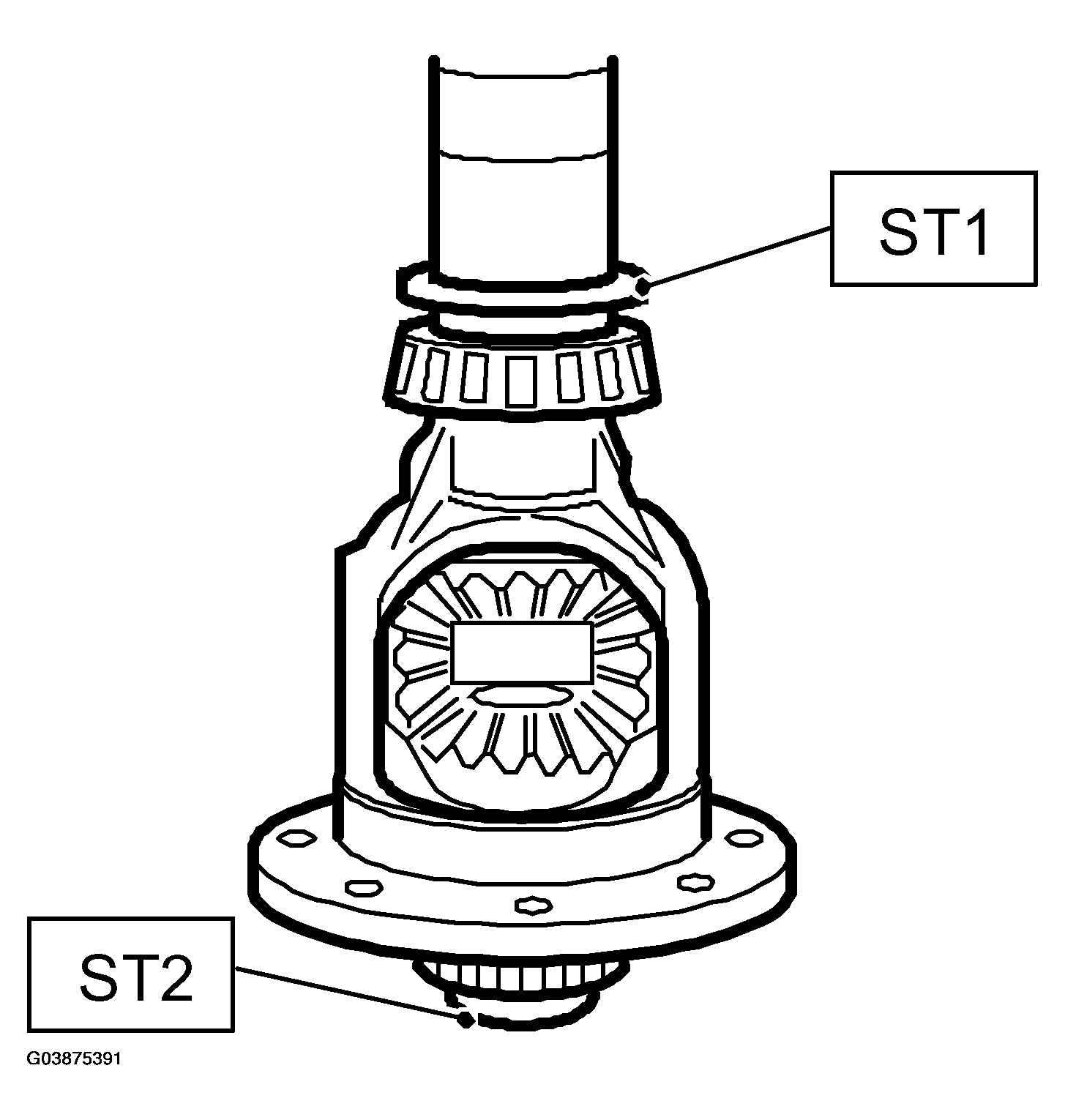

Install the roller bearing to differential case.
NOTE:
- Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Be careful because the roller bearing outer races are used as a set.
ST1 32005130 BUSH 1-2 INSTALLER
ST2 32005065 ADAPTER

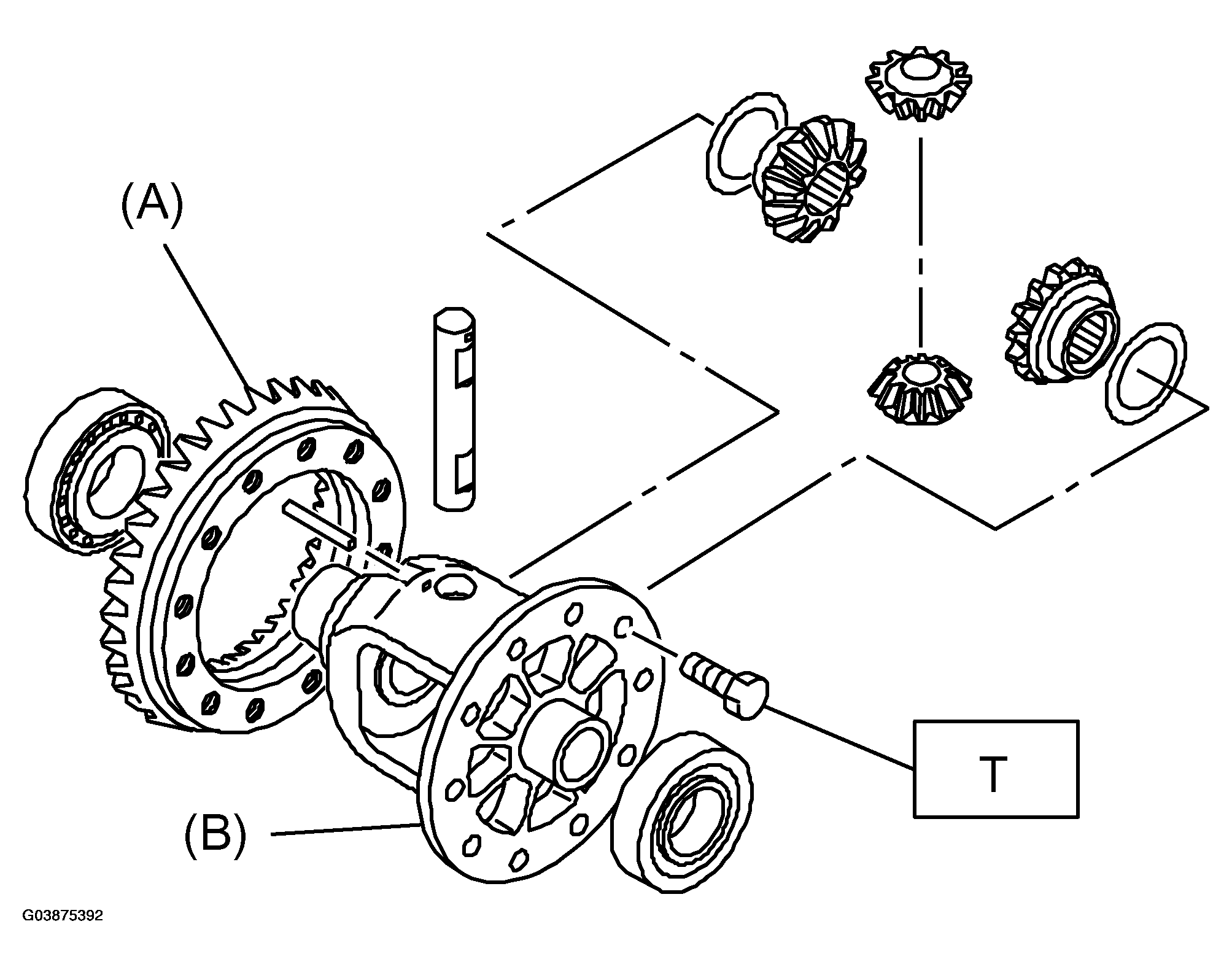

Install the hypoid driven gear to differential case using twelve bolts.
Tightening torque:
T: 62 Nm (6.3 kgf-m, 45.6 ft-lb)
- Hypoid driven gear
- Differential case
