Differential Case Assembly

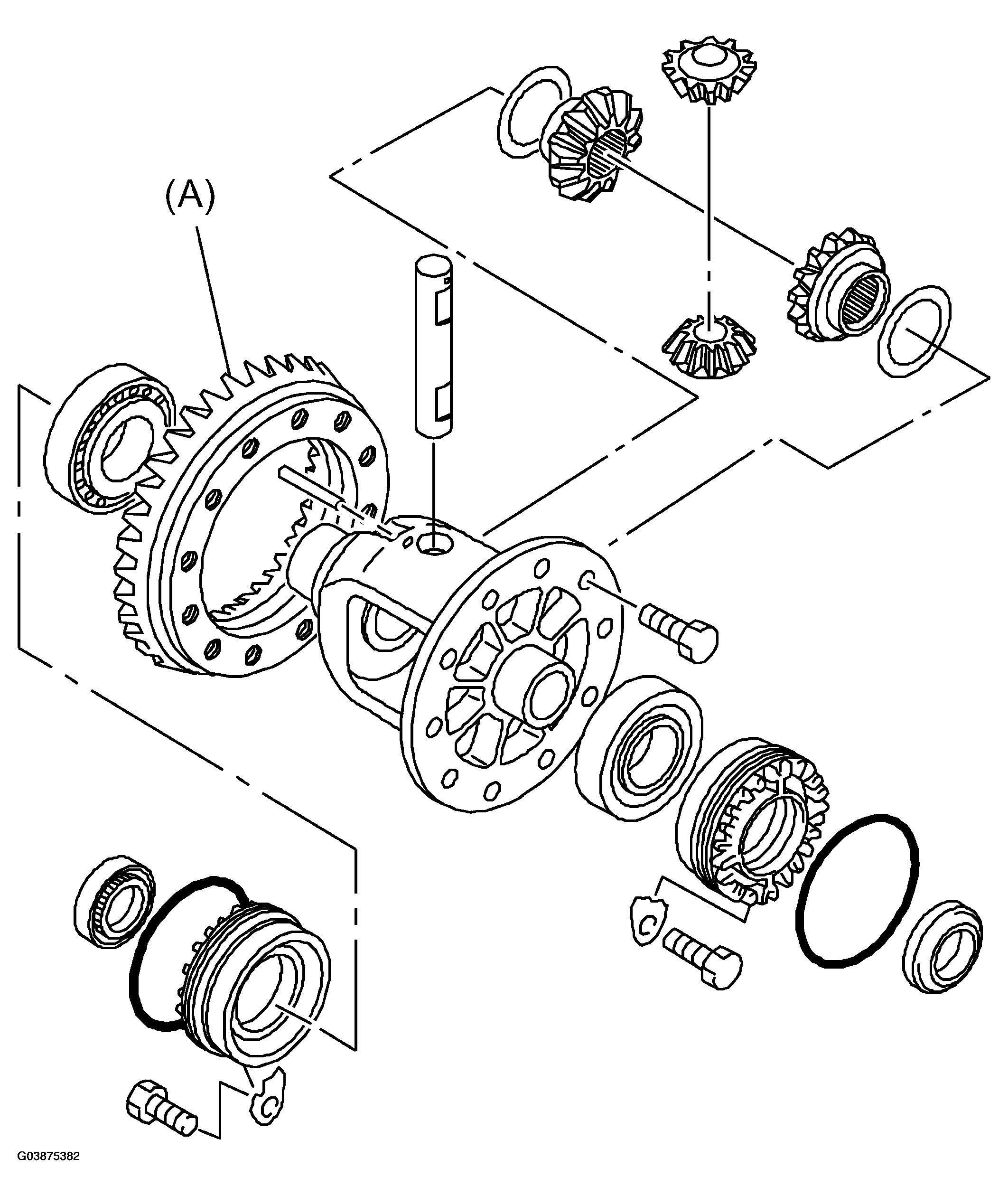

Loosen the twelve bolts and remove the hypoid driven gear.

Fig 1: Removing Hypoid Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

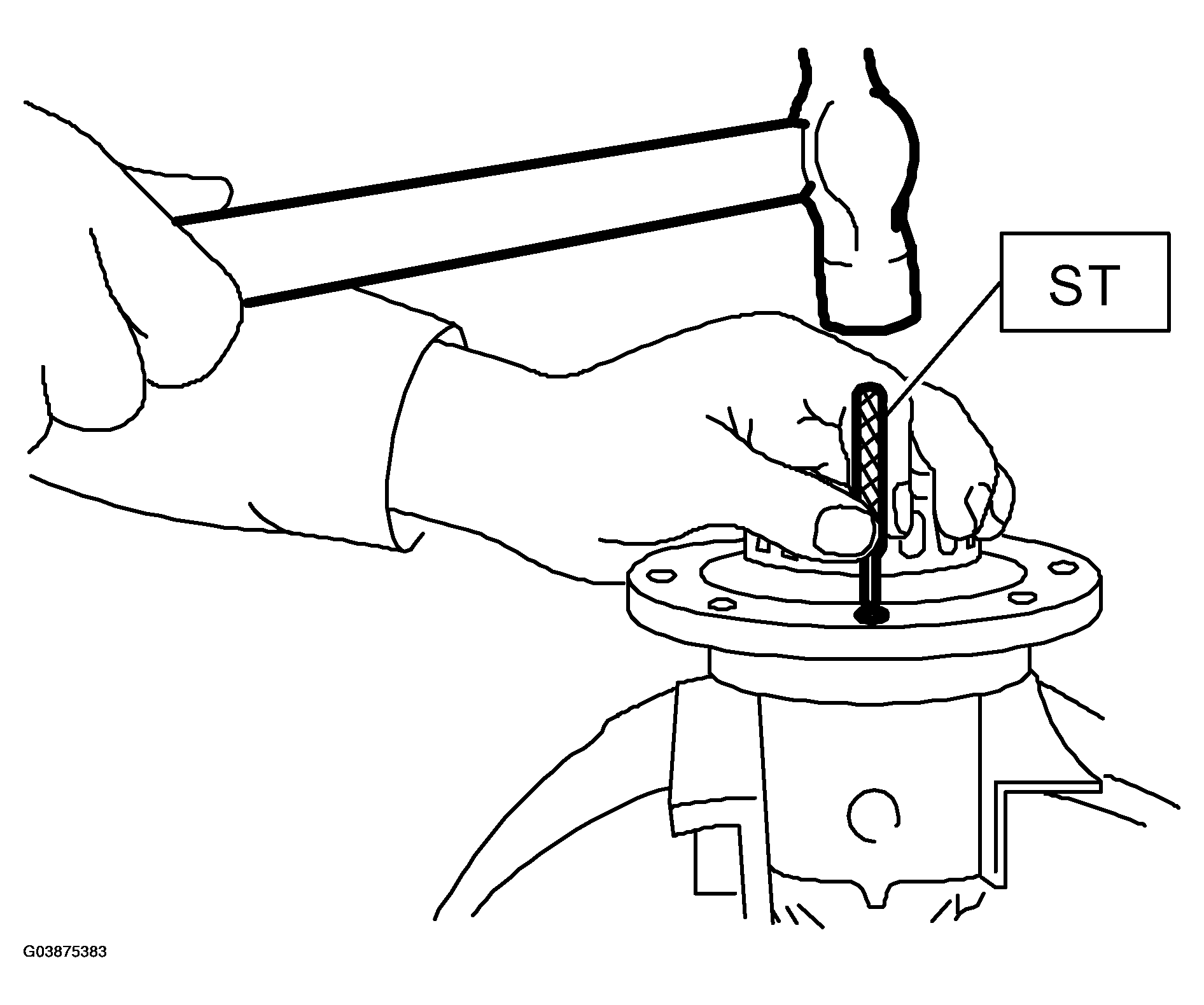

Drive out the straight pin from differential assembly toward hypoid driven gear.

ST 32005181 REMOVER

Fig 2: Removing Straight Pin From Differential Assembly Toward Hypoid Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

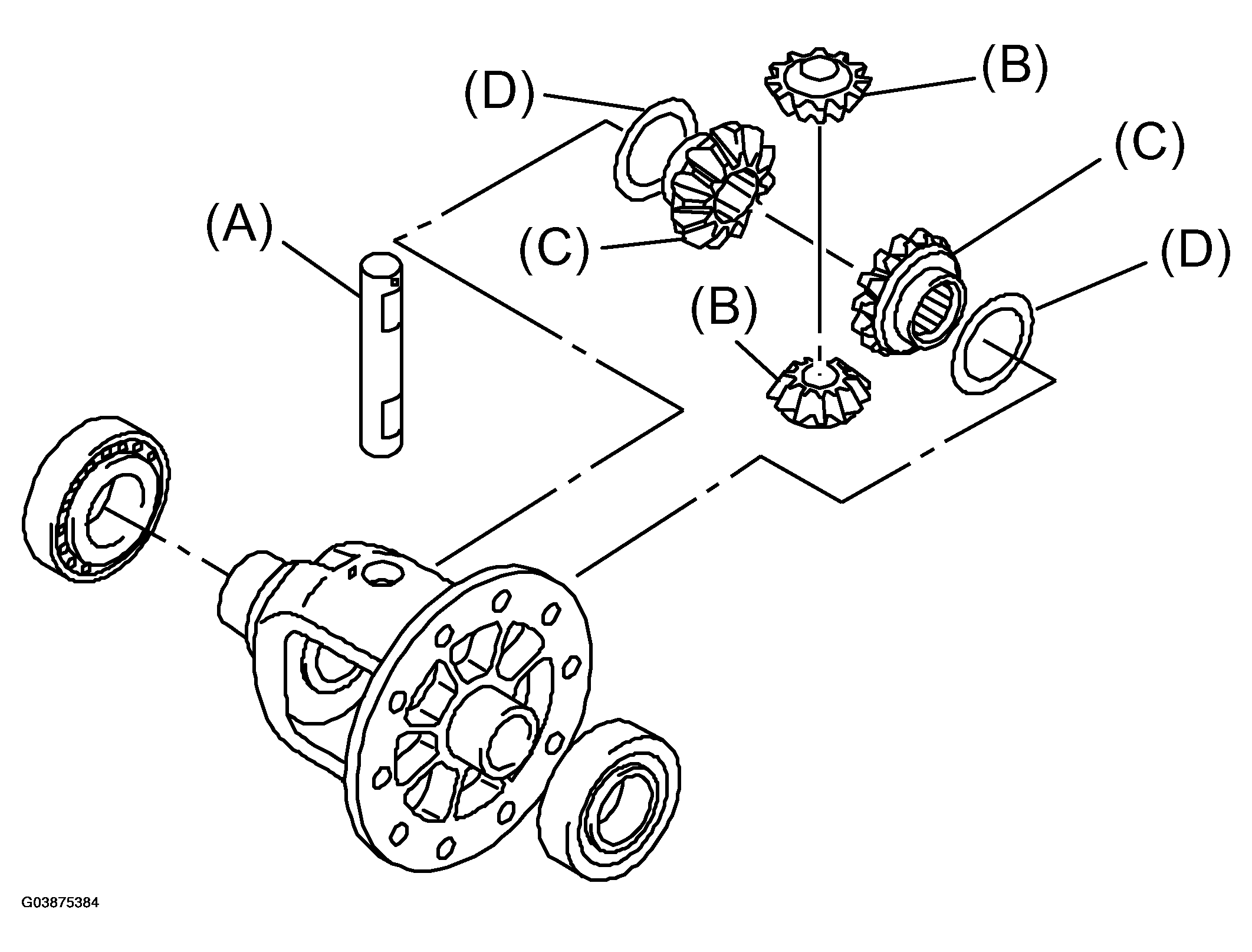

Pull out the pinion shaft, and remove the differential bevel pinion and gear and washer.

Fig 3: Removing Differential Bevel Pinion And Gear And Washer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

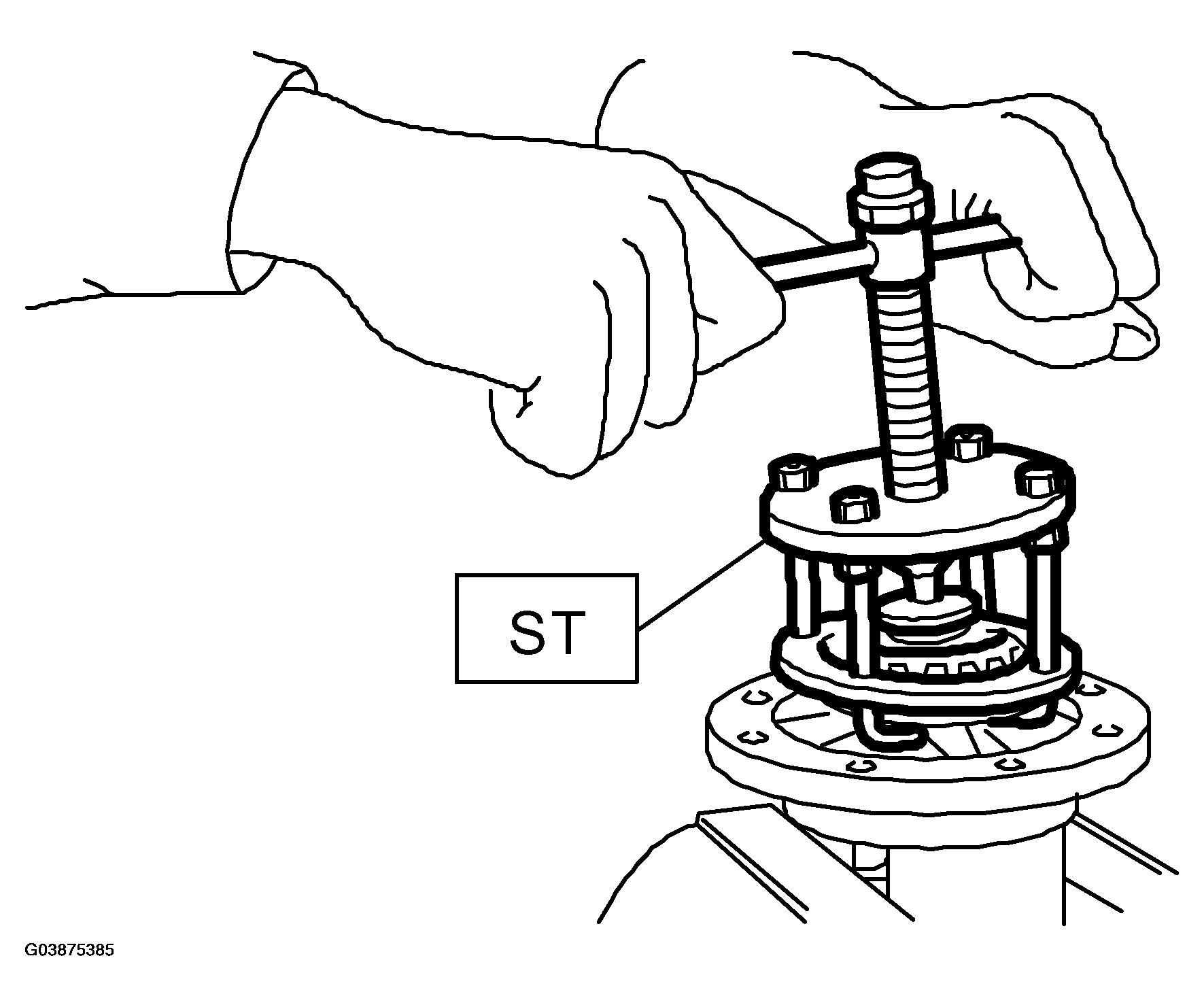

Remove the roller bearing using ST.

ST 32005174 PULLER SET

Fig 4: Removing Roller Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.
