Front Differential Assembly: Adjustment/Replacement: Installation

Install the differential side retainers using ST.

ST 32005023 WRENCH ASSY

Install the bearing outer race to transmission case.

Install the differential assembly.

NOTE: Be careful not to fold the sealing lip of oil seal.

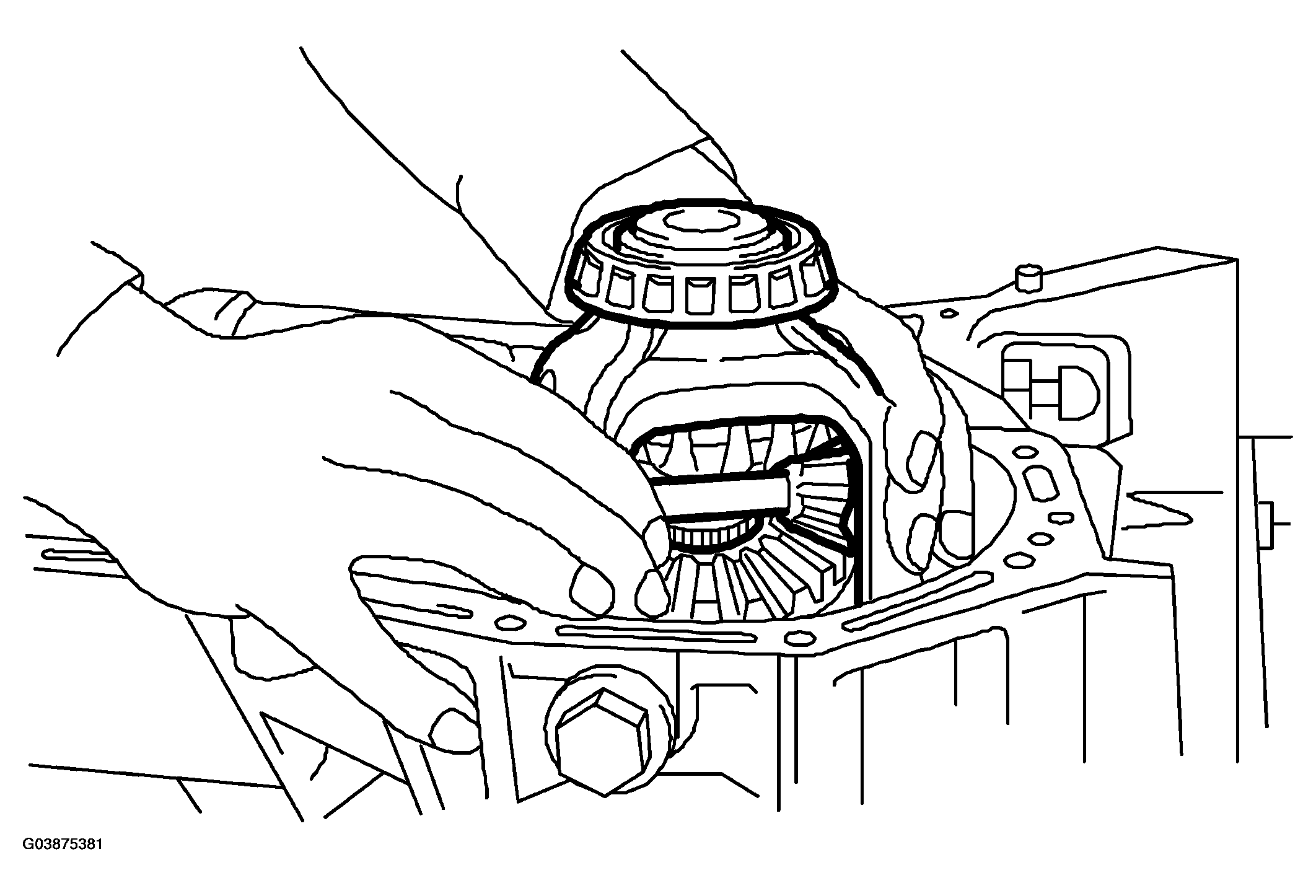

Fig 1: Installing Differential Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the main shaft assembly.

Install the drive pinion assembly.

Install the transmission case.

Install the transfer case with extension case assembly.

Install the manual transmission assembly to vehicle.
