Front Differential Assembly: Adjustment/Replacement: Removal

Remove the manual transmission assembly from vehicle.

Remove the transfer case with extension case assembly.

Remove the transmission case.

Remove the drive pinion shaft assembly.

Remove the main shaft assembly.

Remove the differential assembly.

NOTE:

Be careful not to confuse the right and left roller bearing outer races.
Be careful not to damage the retainer oil seal.

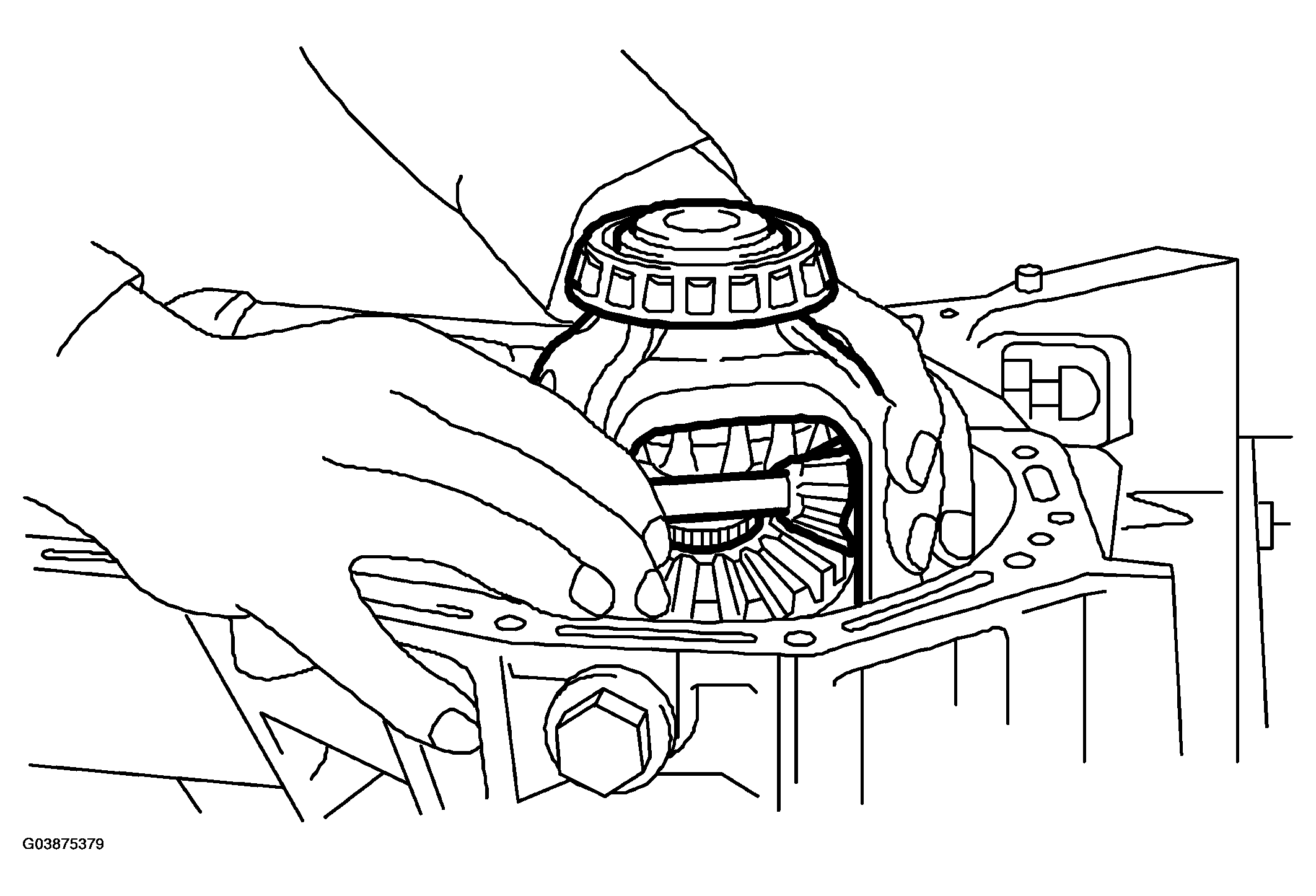

Fig 1: Removing Differential Assembly
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the differential side retainers using ST.

ST 32005023 WRENCH ASSY

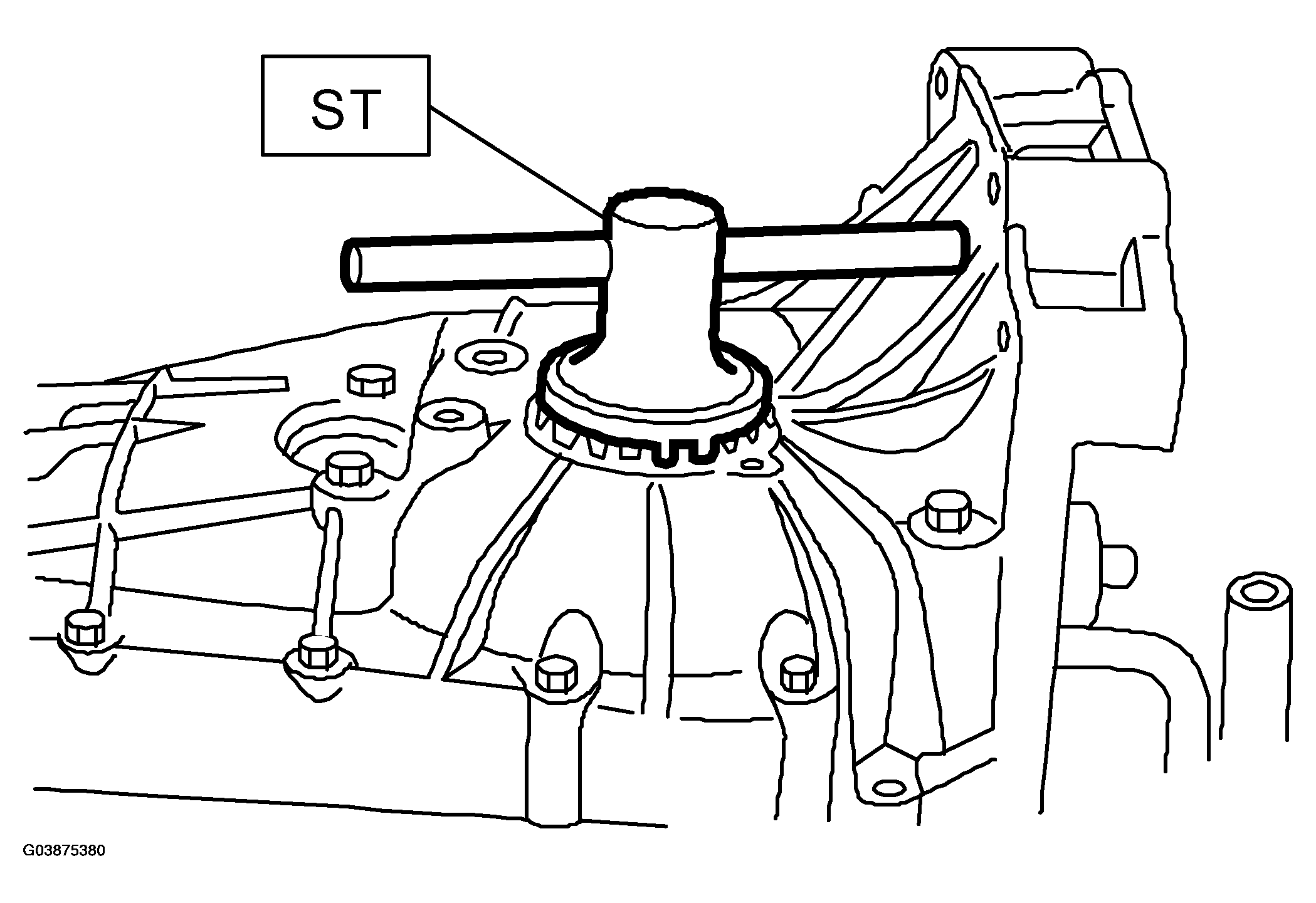

Fig 2: Removing Differential Side Retainers

Courtesy of SAAB-SCANIA OF AMERICA, INC.
