Side Retainer

Install a new oil seal.

ST 32005024 DIFFERENTIAL SIDE OIL SEAL INSTALLER

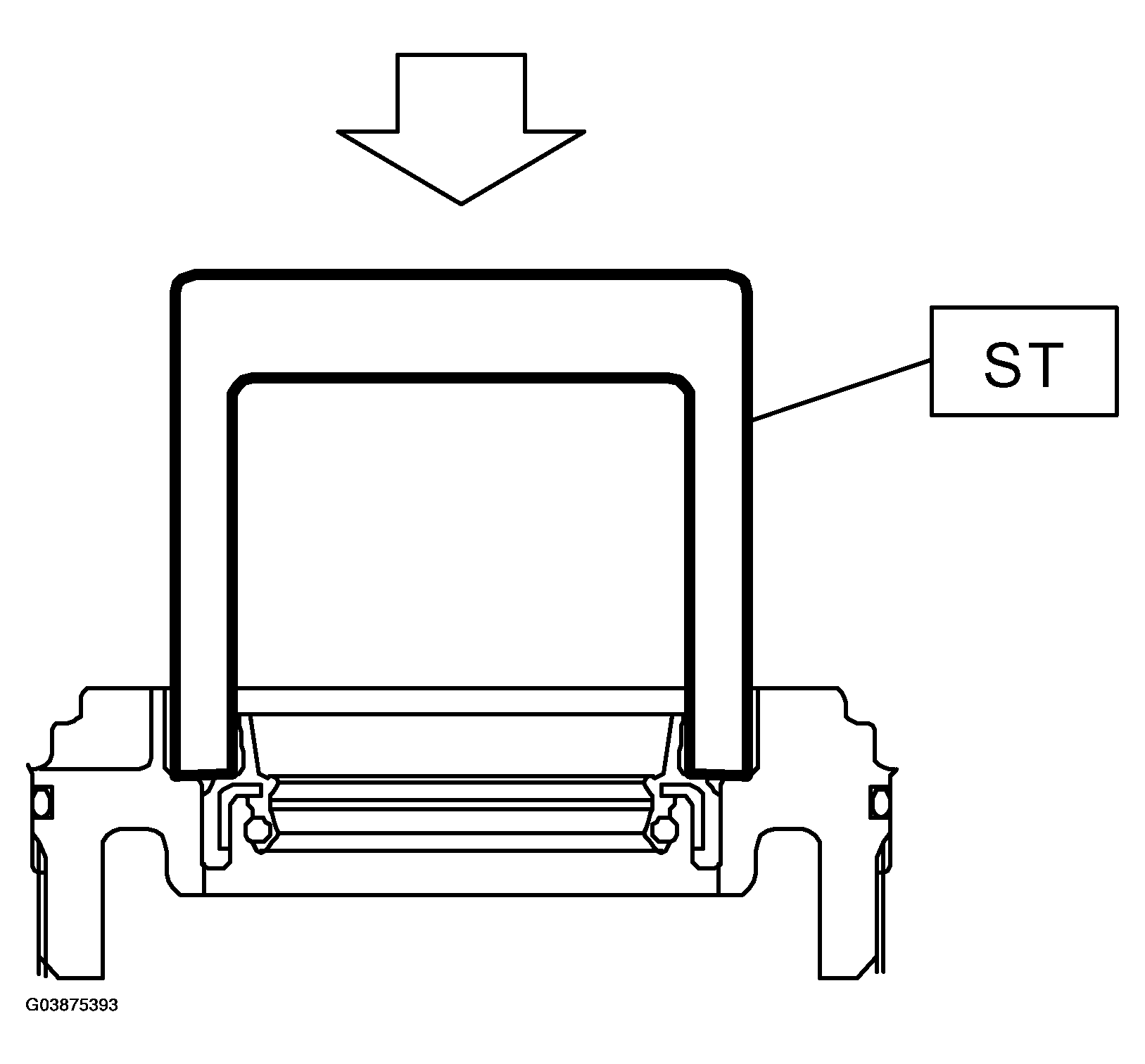

Fig 1: Installing Oil Seal

G03875393

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install a new O-ring.

NOTE: Do not stretch or damage the O-ring.

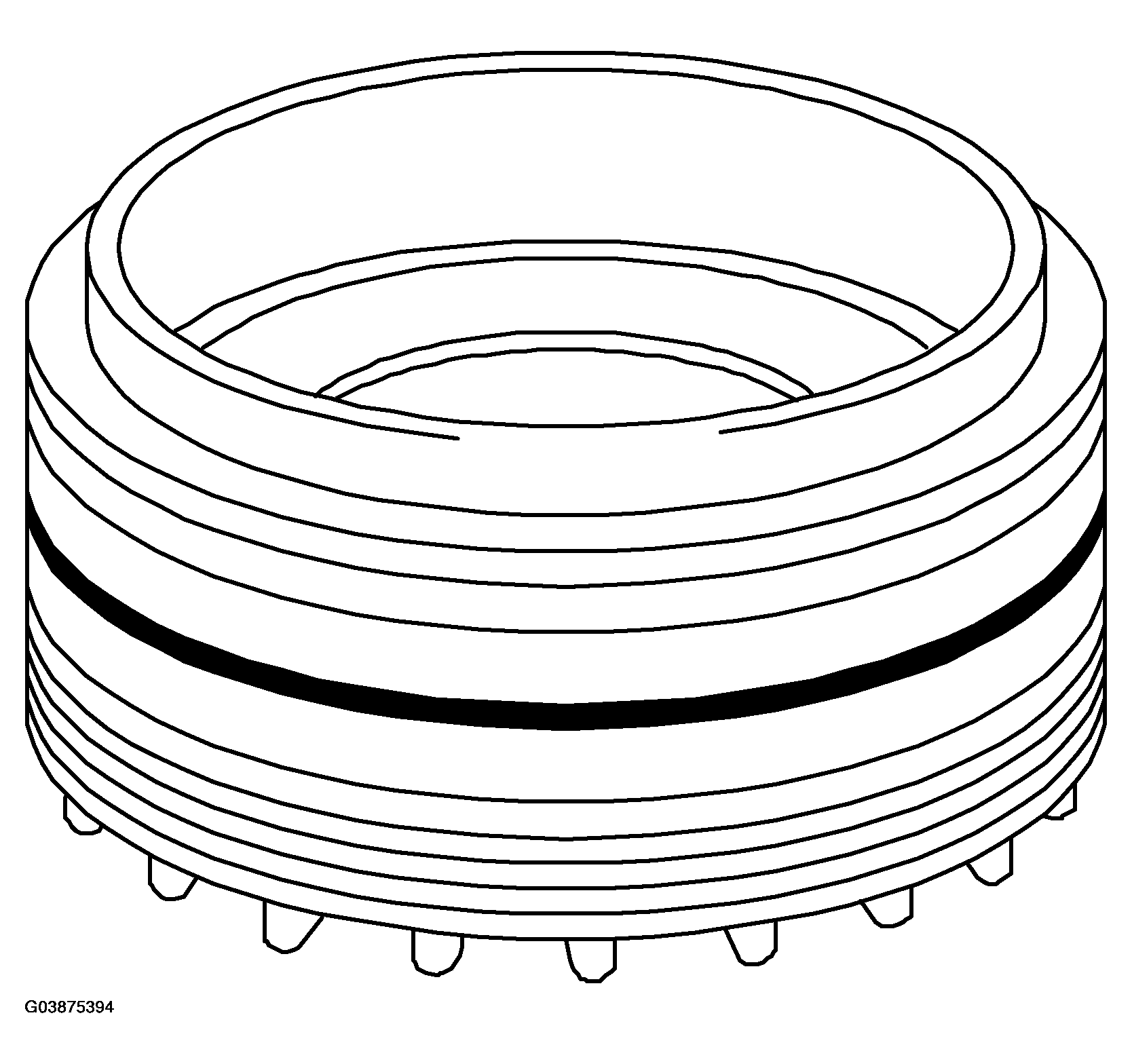

Fig 2: Installing O-Ring

G03875394

Courtesy of SAAB-SCANIA OF AMERICA, INC.
