Main Shaft Assembly: Adjustment/Replacement: Installation

Install the needle bearing and oil seal onto the front of transmission main shaft assembly.

NOTE:
  • Wrap the clutch splined section with vinyl tape to prevent damage to oil seal.
  • Apply grease (Unilube #2 or equivalent) to the sealing lip of oil seal.
  • Use a new one.

Install the needle bearing outer race knock pin hole into transmission case knock pin.

NOTE: Align the end face of seal with surface (A) when installing oil seal.

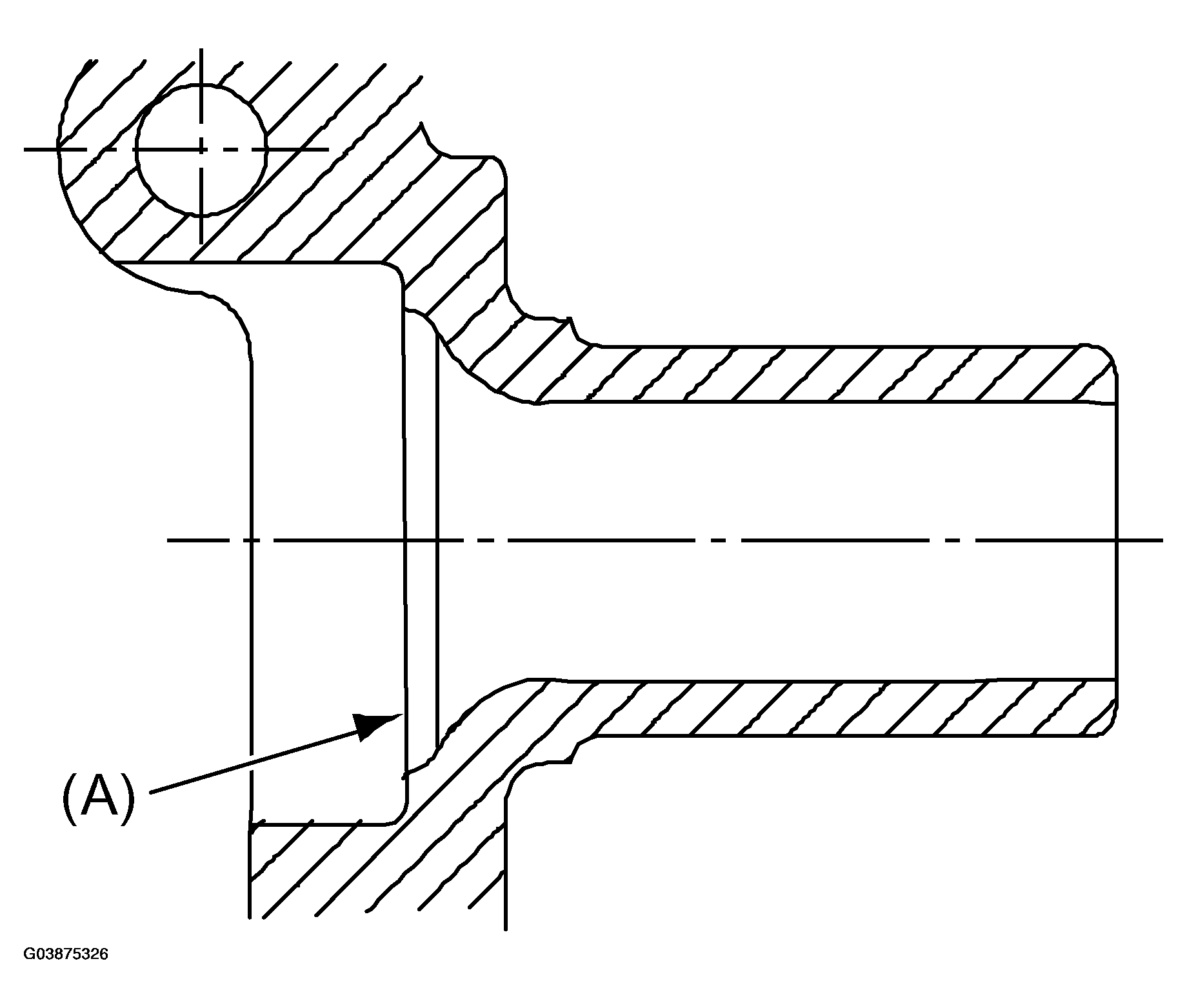

Fig 1: Installing Needle Bearing And Oil Seal
G03875326Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the drive pinion assembly.

Install the transmission case.

Install the transfer case with extension case assembly.

Install the manual transmission assembly to vehicle.
