Crimp J39, engine harness, Trionic

Location: Approx. 60 mm from the branching point to the ignition coil with integrated amplifier, cyl. 4, towards the combustion sensor.

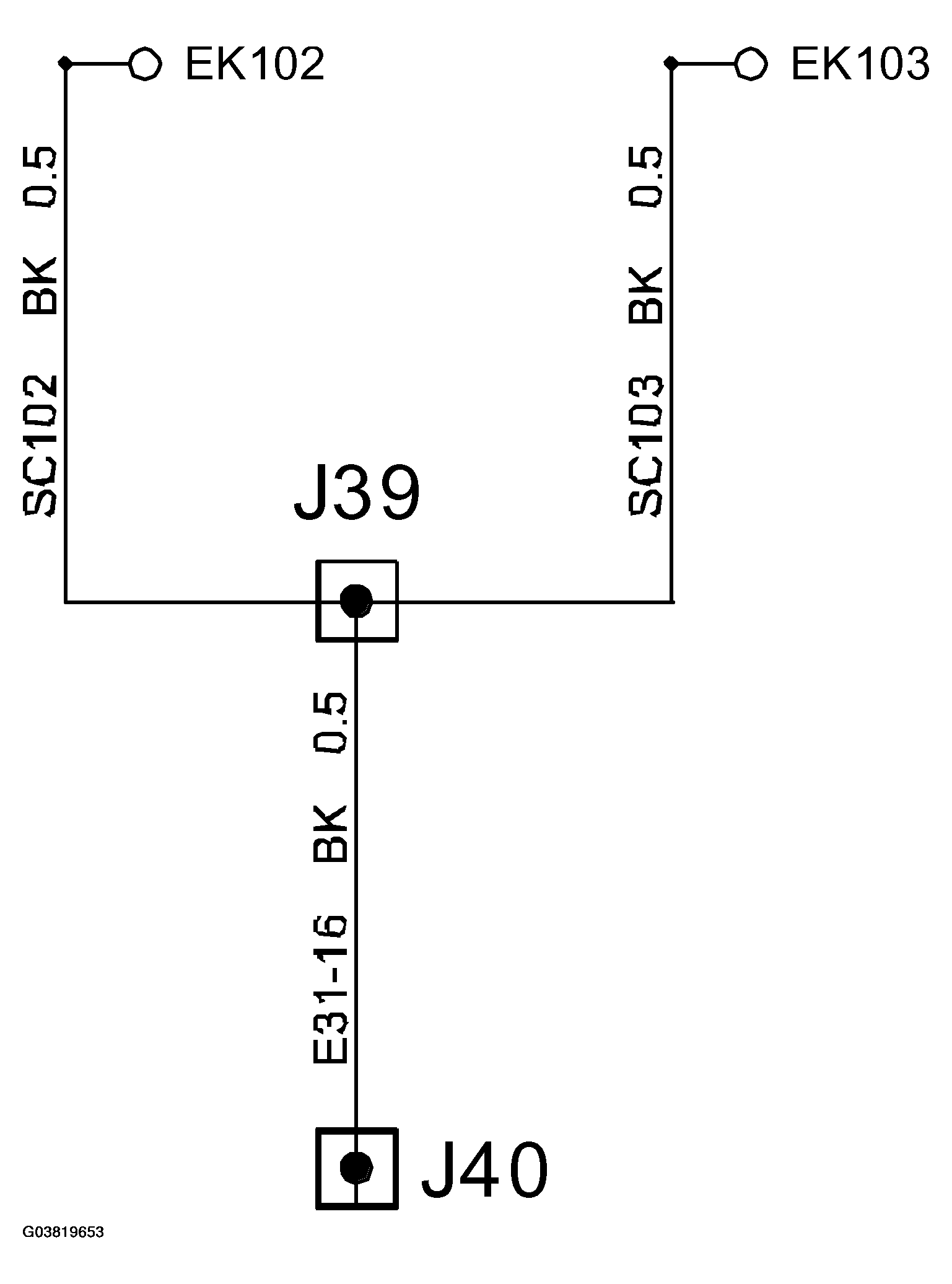

Fig 1: Identifying Engine Harness Trionic - Crimp J39
