Backrest rake motor: Fitting

Fit the backrest rake motor. Hold the opposite side of the shaft when fitting the motor and upper clip.

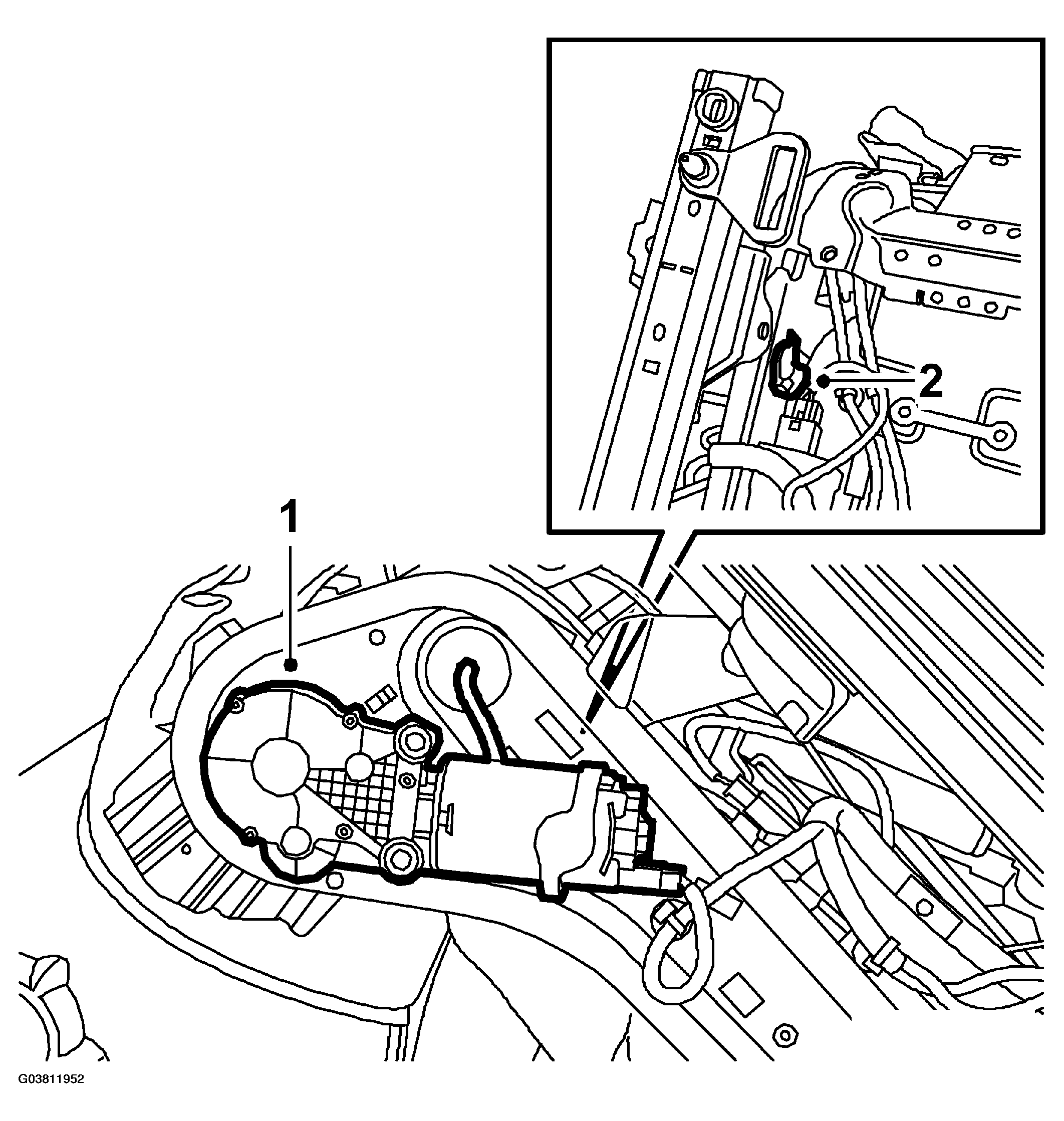

Fig 1: Illustration For Step (1 And 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the lower clip to the motor.
Plug in the backrest rake motor.
Fit the cover on the same side as the seatbelt buckle.
Fit FRONT SEAT SIDE PANEL .
Fit the seat.
Test run the backrest adjustment motor.
