Backrest rake motor: Removing

  1. Remove the seat.
  2. Remove FRONT SEAT SIDE PANEL .
  3. Remove the cover on the same side as the seatbelt buckle.
  4. Unplug the motor.
  5. Remove the upper and lower clip from the motor.

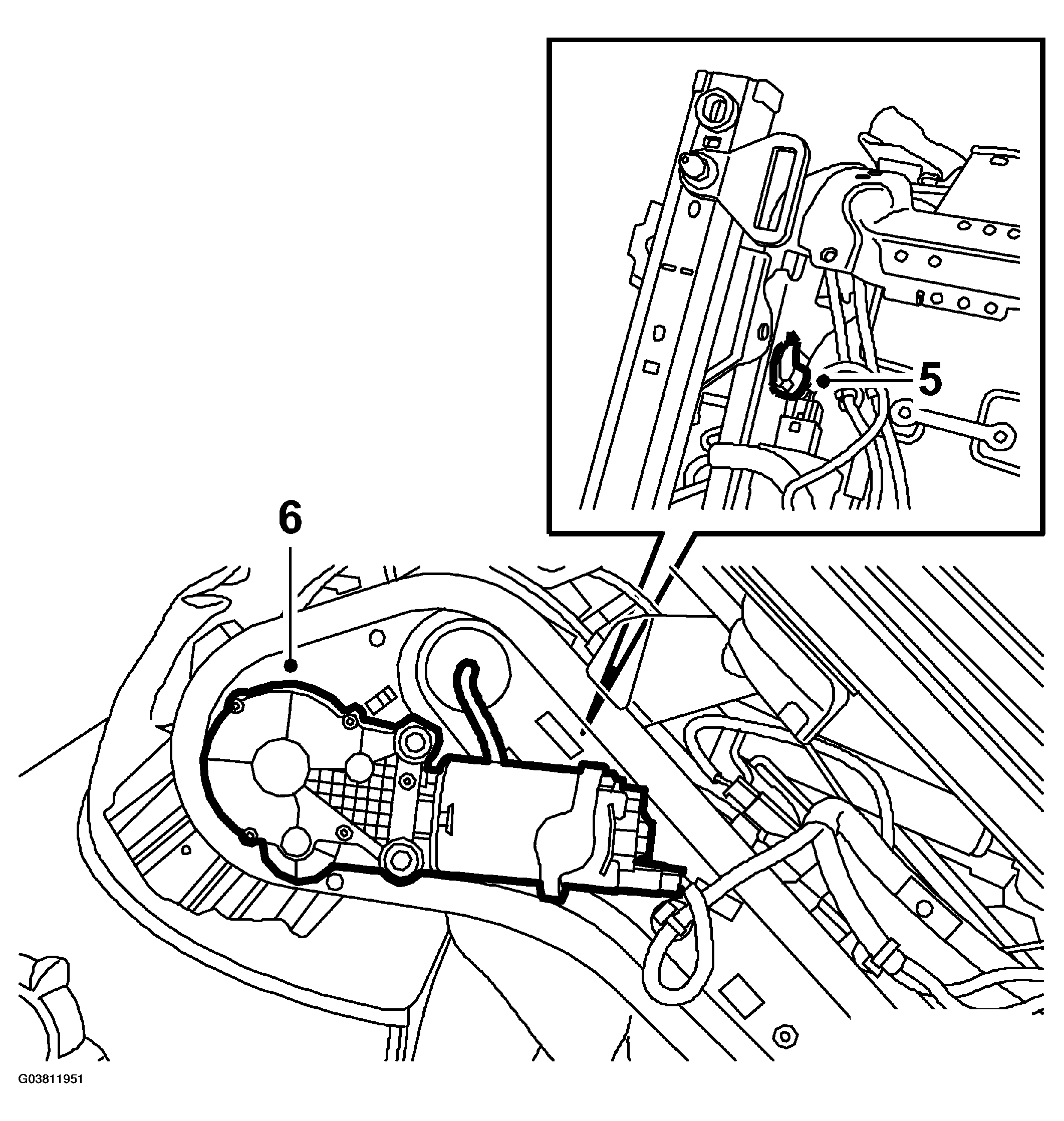

    Fig 1: Illustration For Step (5 And 6)
    G03811951Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Pull the backrest rake motor straight up.
