To remove

  1. Retract the soft top.
  2. Remove the head restraint sleeves.
  3. Fold down the backrest.
  4. Remove the backrest cover.
  5. Remove the rear lower cover.
  6. Unplug the heating pad connector.

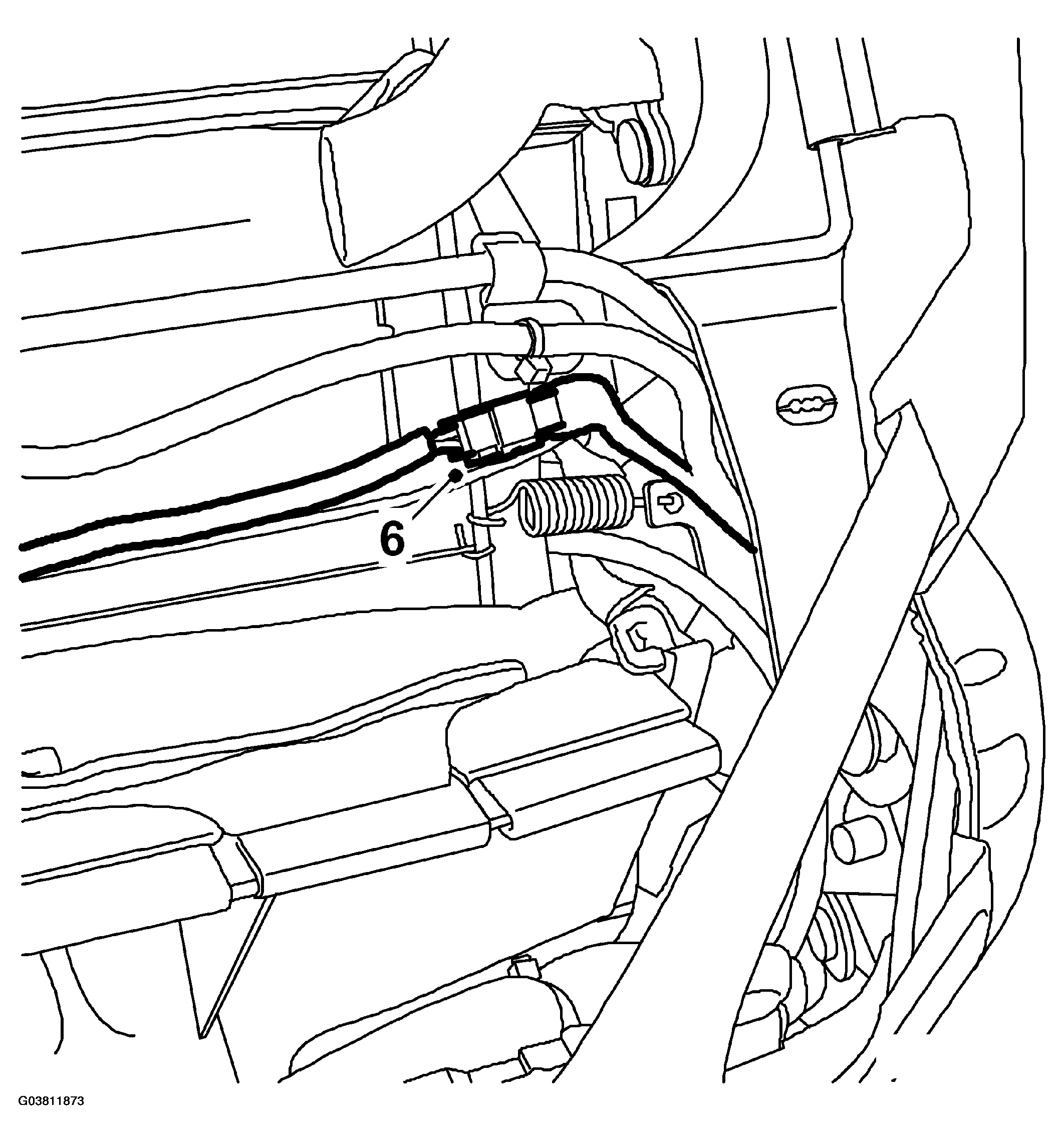

    Fig 1: Unplugging Heating Pad Connector
    G03811873Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Cut the cable ties securing the straps on the reverse of the upholstery.

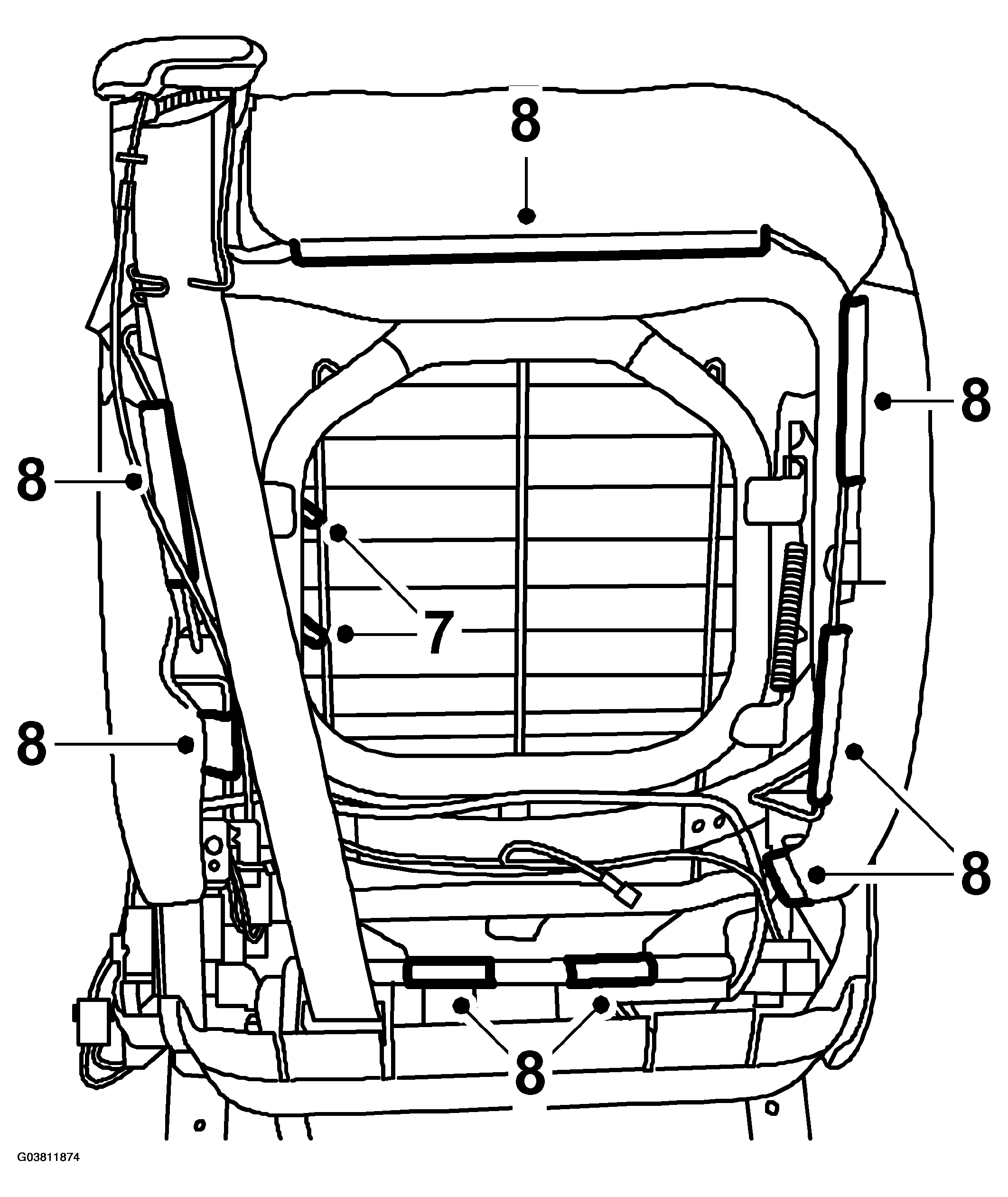

    Fig 2: Illustration For Step (7 And 8)
    G03811874Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the trim strips.
  9. Remove the backrest upholstery and foam cushion from the frame.
  10. Remove the staples from the upholstery. Remove the upholstery.

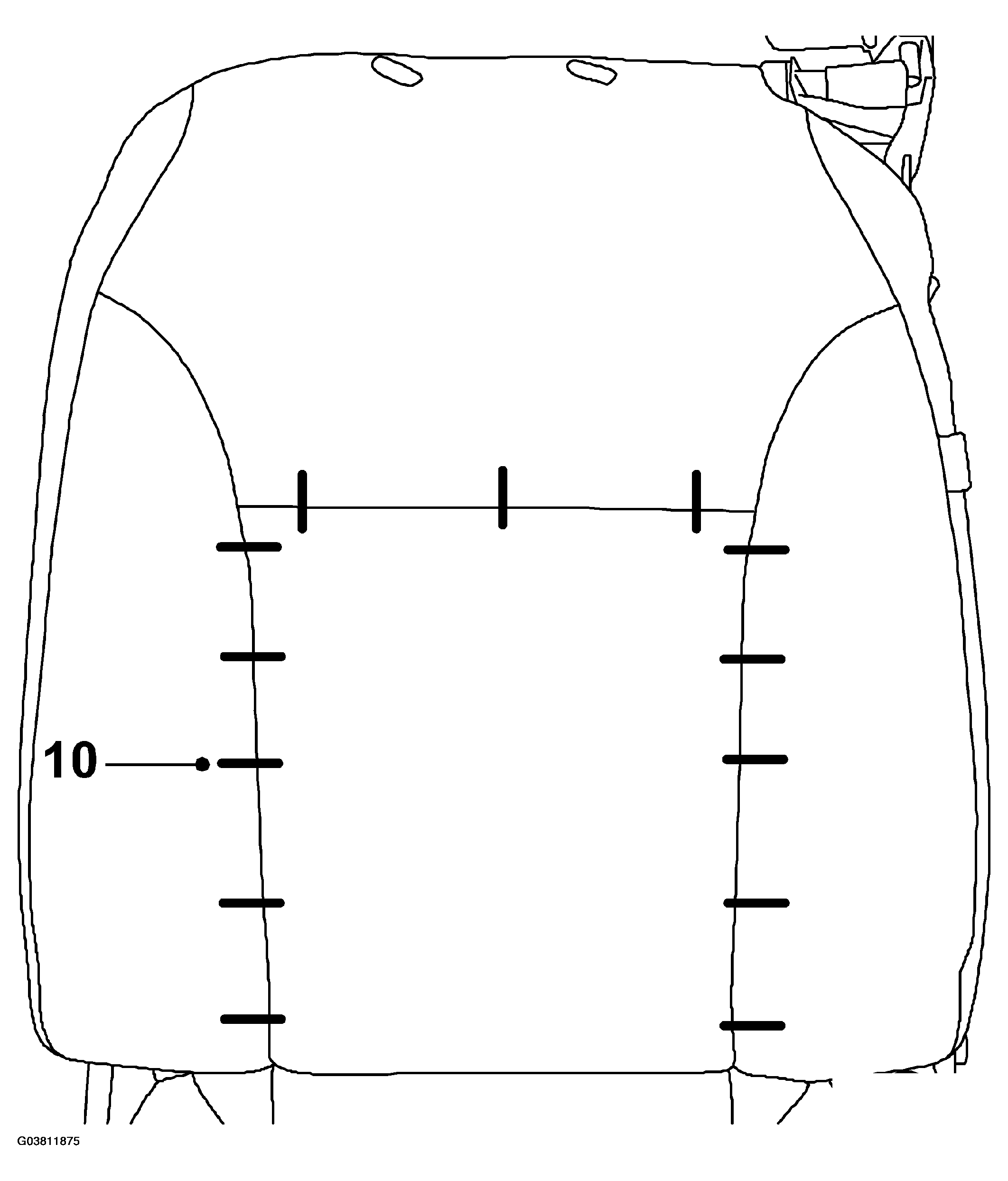

    Fig 3: Removing Staples
    G03811875Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Carefully pull the heating pad off the foam cushion.
    NOTE: The heating pad is adhered to the foam cushion. Take care not to damage the cushion.
