Control module, seat (357k)
Control module, seat (357k)

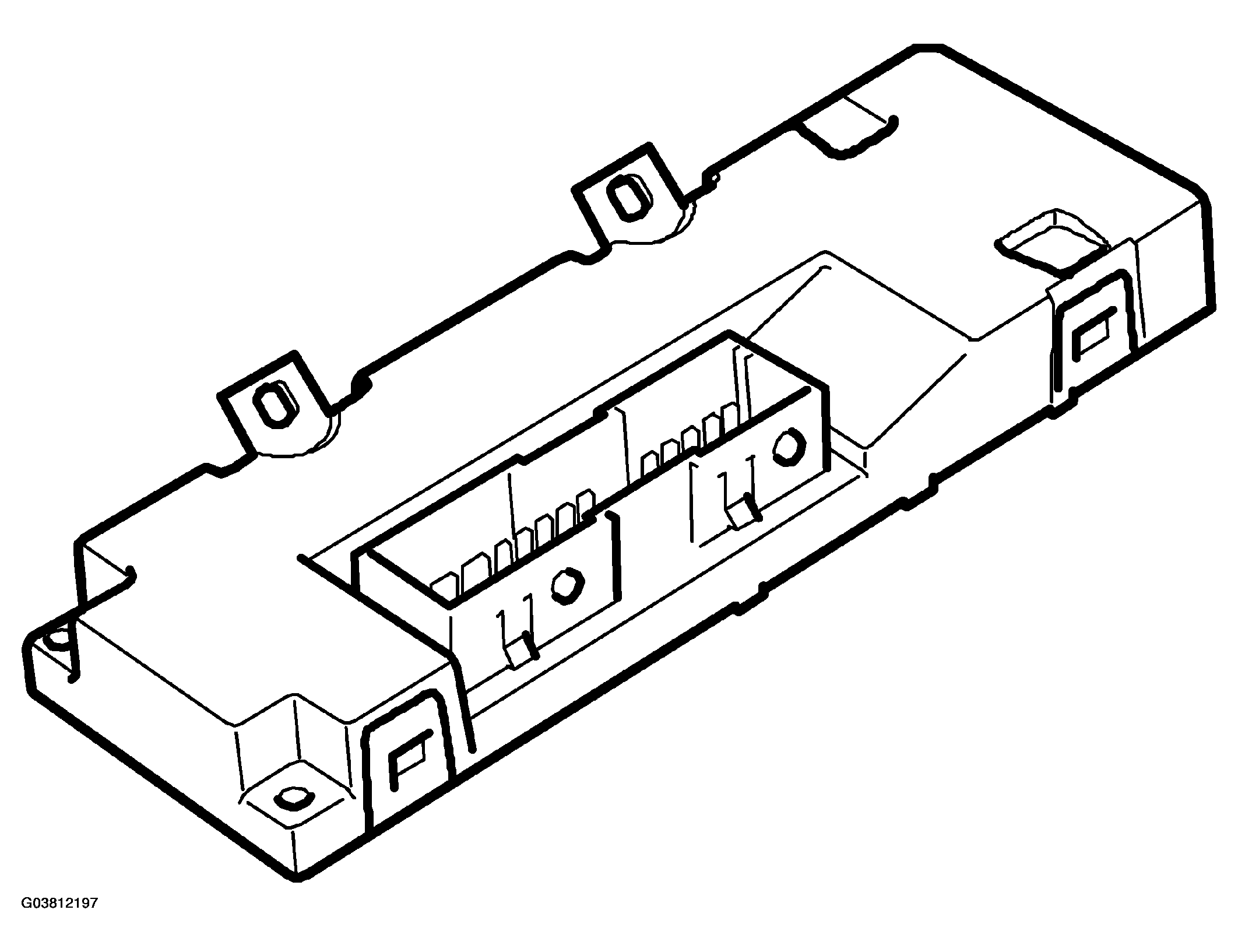

Fig 1: Identifying Control Module Seat (357K)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SEAT CONTROL MODULE SPECIFICATION
Power supply +30
59 pin
Ground
58 pin
Courtesy of SAAB-SCANIA OF AMERICA, INC.
