Technical data
›
DVD module
DVD module

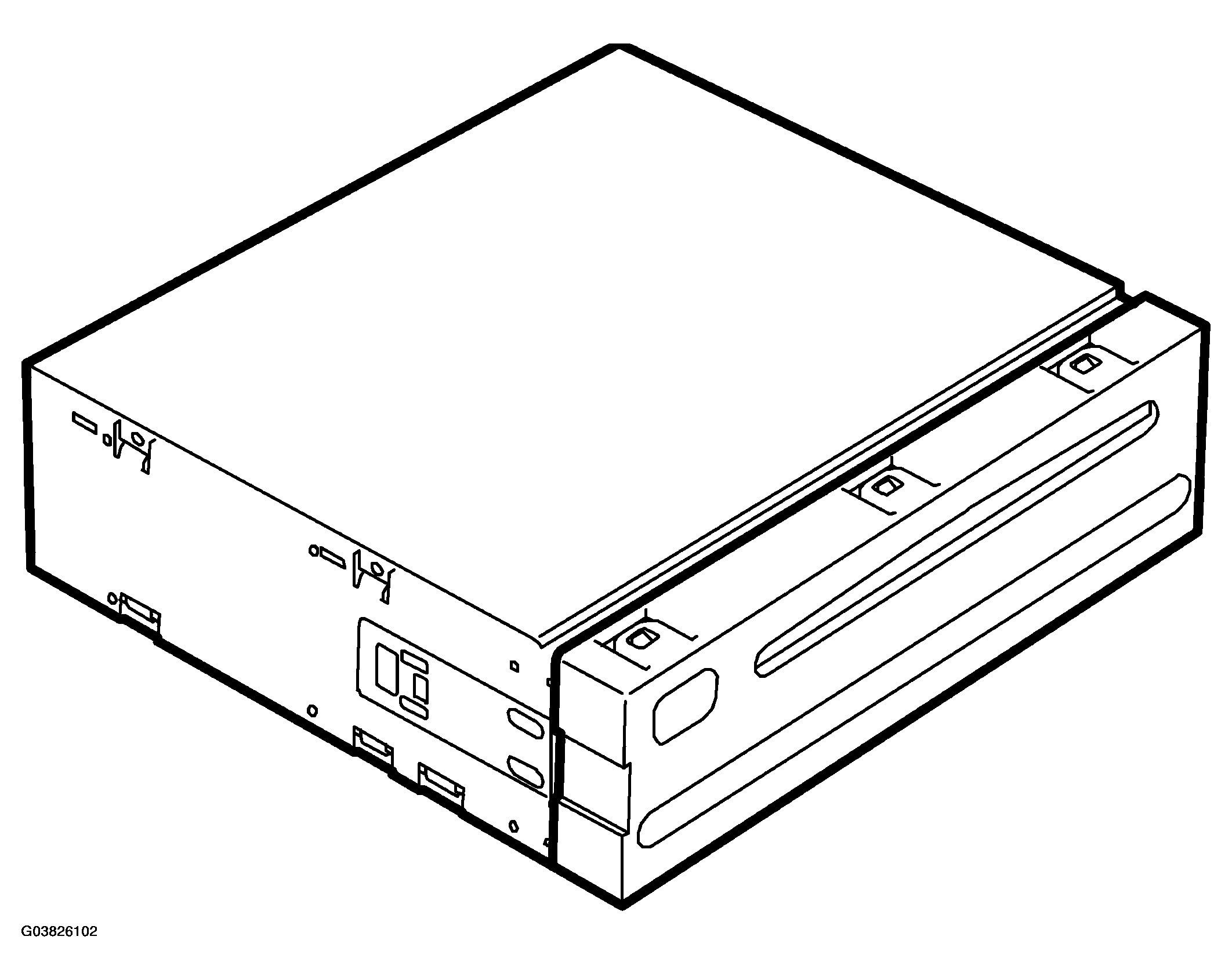

Fig 1: Identifying DVD Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
DVD MODULE TECHNICAL DATA
Ground
Pin no.
1
+30
Pin no.
2
O-bus (receiver)
O-bus connection
1
O-bus (transmitter)
O-bus connection
2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
