Technical data: Microphone

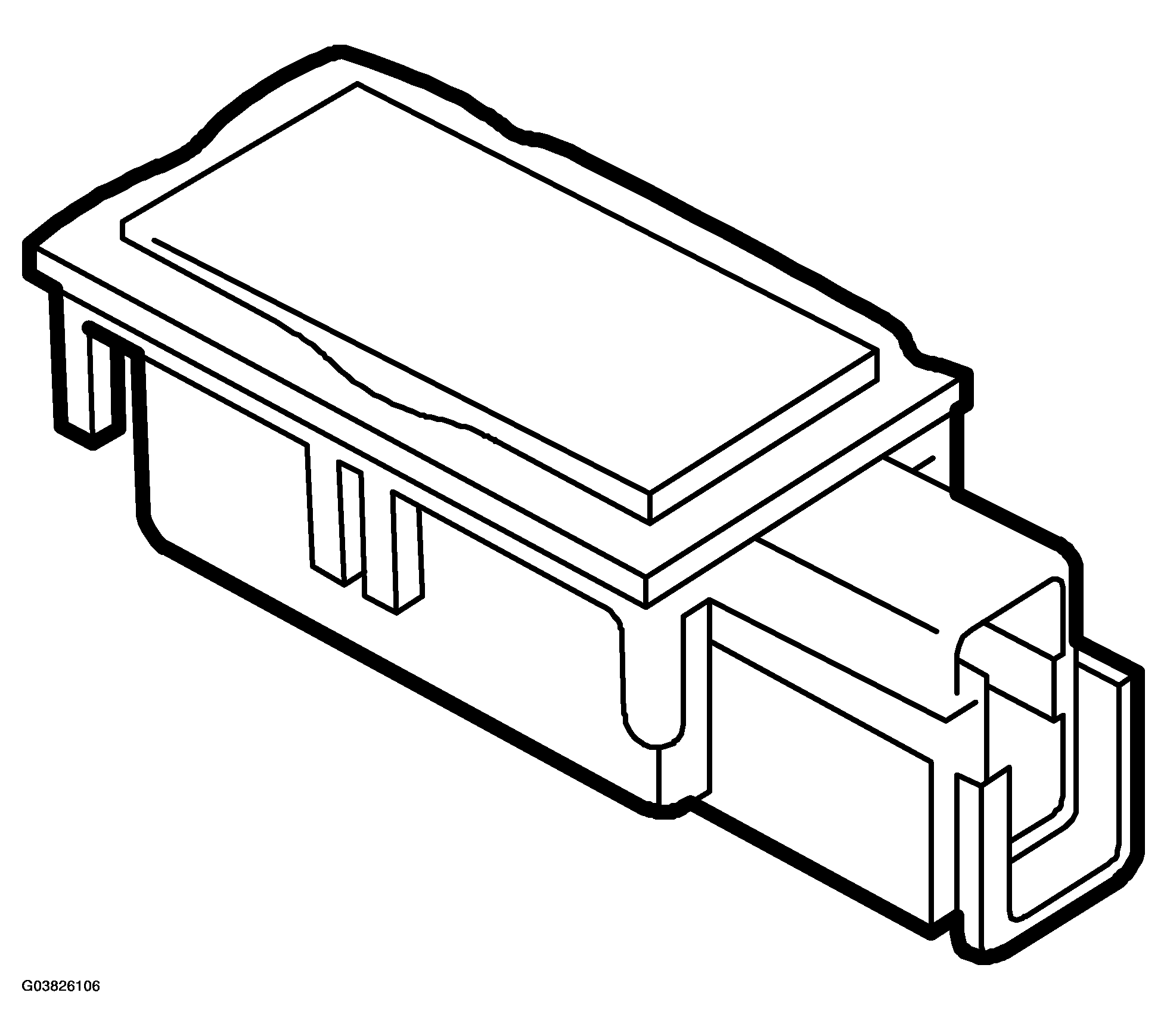

Courtesy of SAAB-SCANIA OF AMERICA, INC. MICROPHONE CONNECTOR TECHNICAL DATA
| Make |
Peiker |
| Type |
Condenser microphone with an amplifier incorporated in the plastic housing. |
| Location |
In the roof console. |
| Frequency response |
300 Hz - 5 kHz 3 dB. |
| High level output (active) |
Pin No. 1 |
| Low level output (passive) |
Pin No.2 |
| Ground |
Pin No.3 |
