Crimp connection J2, front harness: Notes

Location:  Approx. 60 mm from branching of grounding point G30 towards the left headlamp

Fig 1: Identifying J2 Crimp Connection Diagram (Front Harness)
G03824529Courtesy of SAAB-SCANIA OF AMERICA, INC.


Location:  Approx. 60 mm from branching of grounding point G30 towards the left headlamp

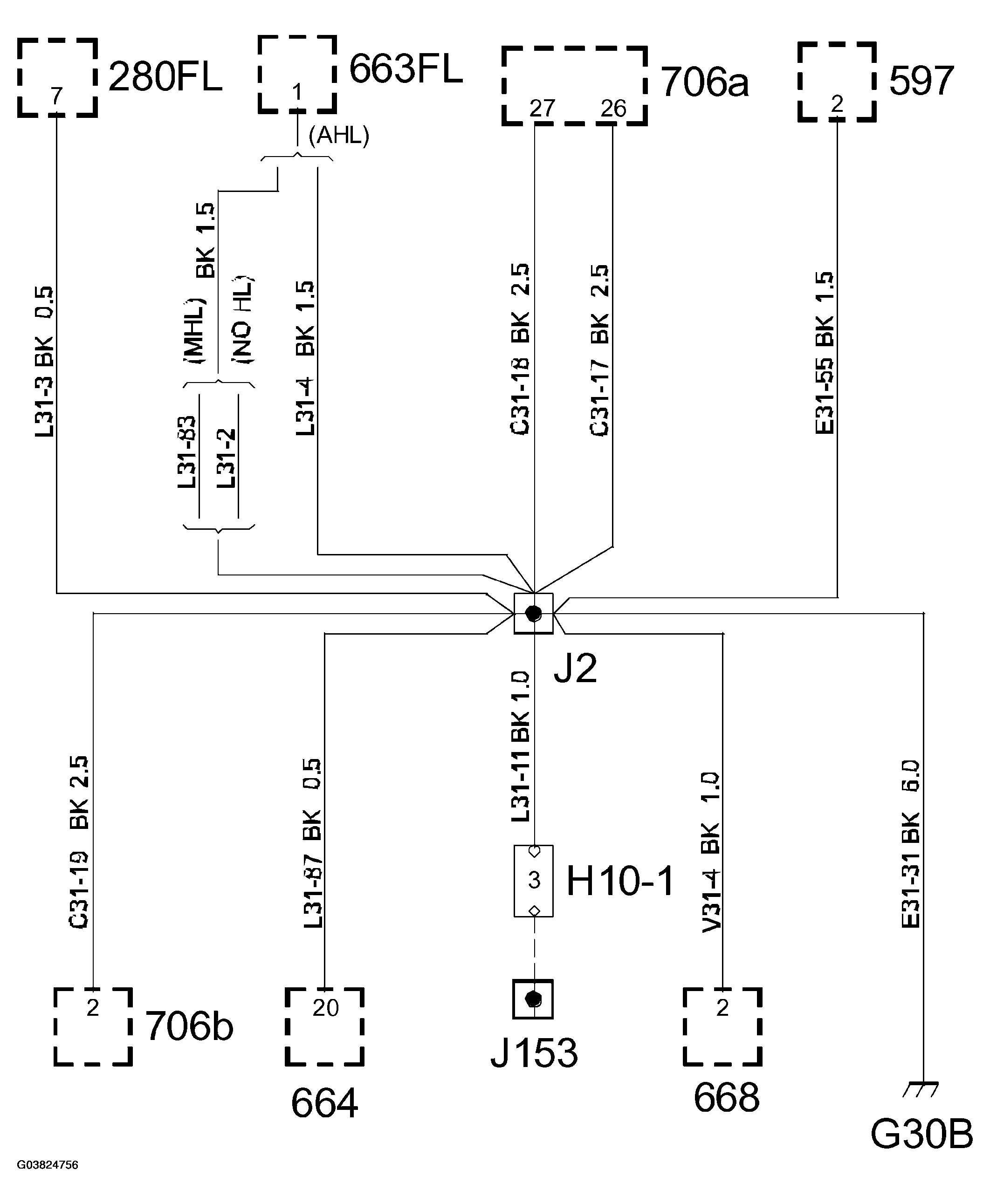

Fig 1: Crimp Connection J2, Front Harness Circuit
G03824756Courtesy of SAAB-SCANIA OF AMERICA, INC.
