Grounding point G30B: Notes

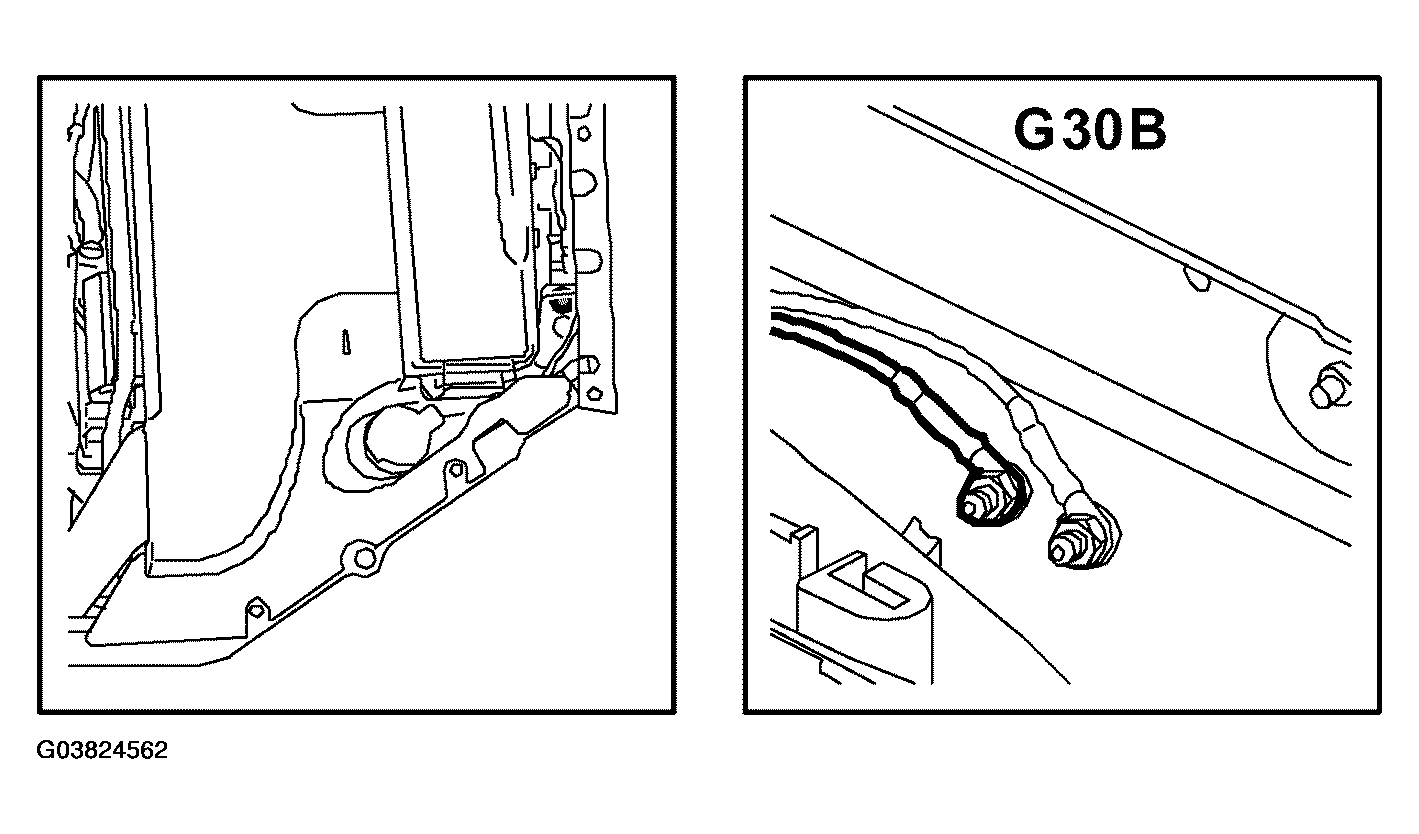

Fig 1: Identifying Grounding Point G30B And Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Rear grounding point on side panel above rear left wheel housing.

The grounding point is connected to grounding point G30A via crimp J2, engine bay electrical centre 342, and crimp J1.

Fig 1: Identifying Grounding Point G30B

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Rear grounding point on side panel above rear left wheel housing.

The grounding point is connected to grounding point G30A via crimp J2, engine bay electrical centre 342, and crimp J1.
