To remove

  1. Raise the car.
  2. Cut the front pipe between the flexible section and the silencer to the size given, 87 mm. Use 83 95 667 PIPE CUTTER/EXHAUST SYSTEM  .

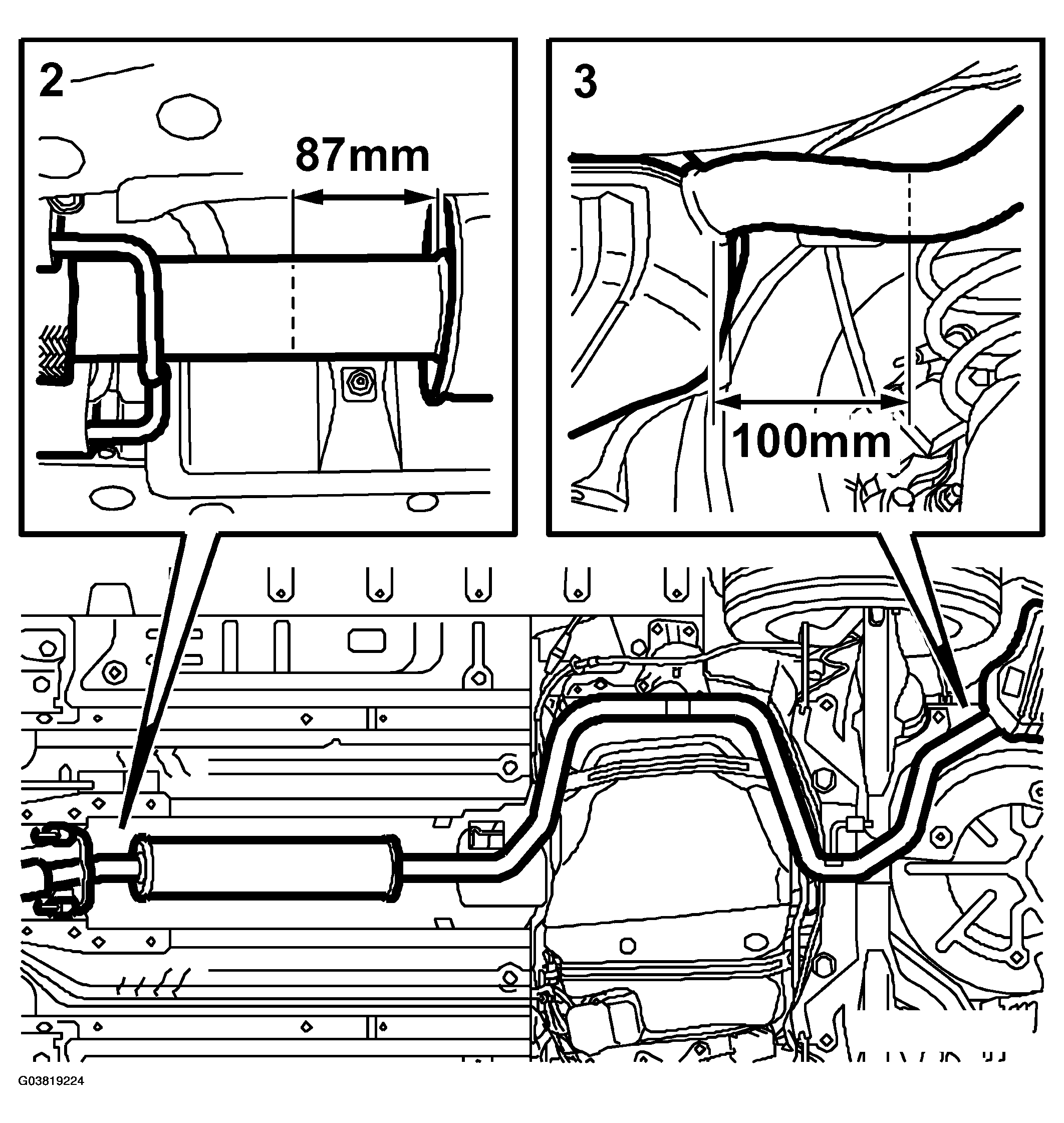

    Fig 1: Illustration For Step (2 And 3)
    G03819224Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Cut the exhaust pipe at the rear silencer to the size given, 100 mm. Use 83 95 667 PIPE CUTTER/EXHAUST SYSTEM  .
  4. Remove the front silencer.
