Fuse 2, main fuse box 727: Notes

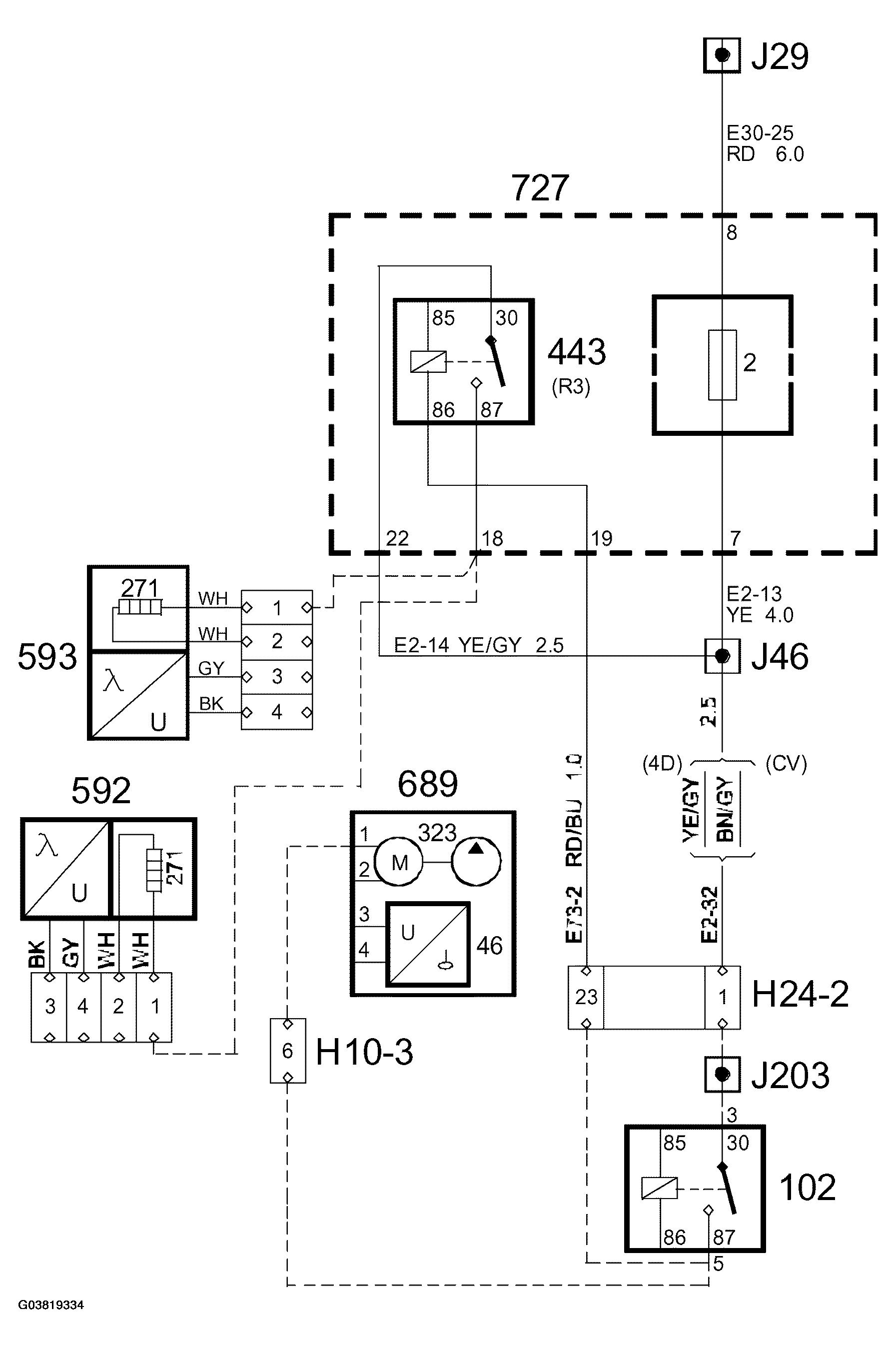

Fig 1: Circuit Diagram Fuse 2, Main Fuse Box 727
G03819334Courtesy of SAAB-SCANIA OF AMERICA, INC.
