Technical data
›
Fuel tank
Fuel tank

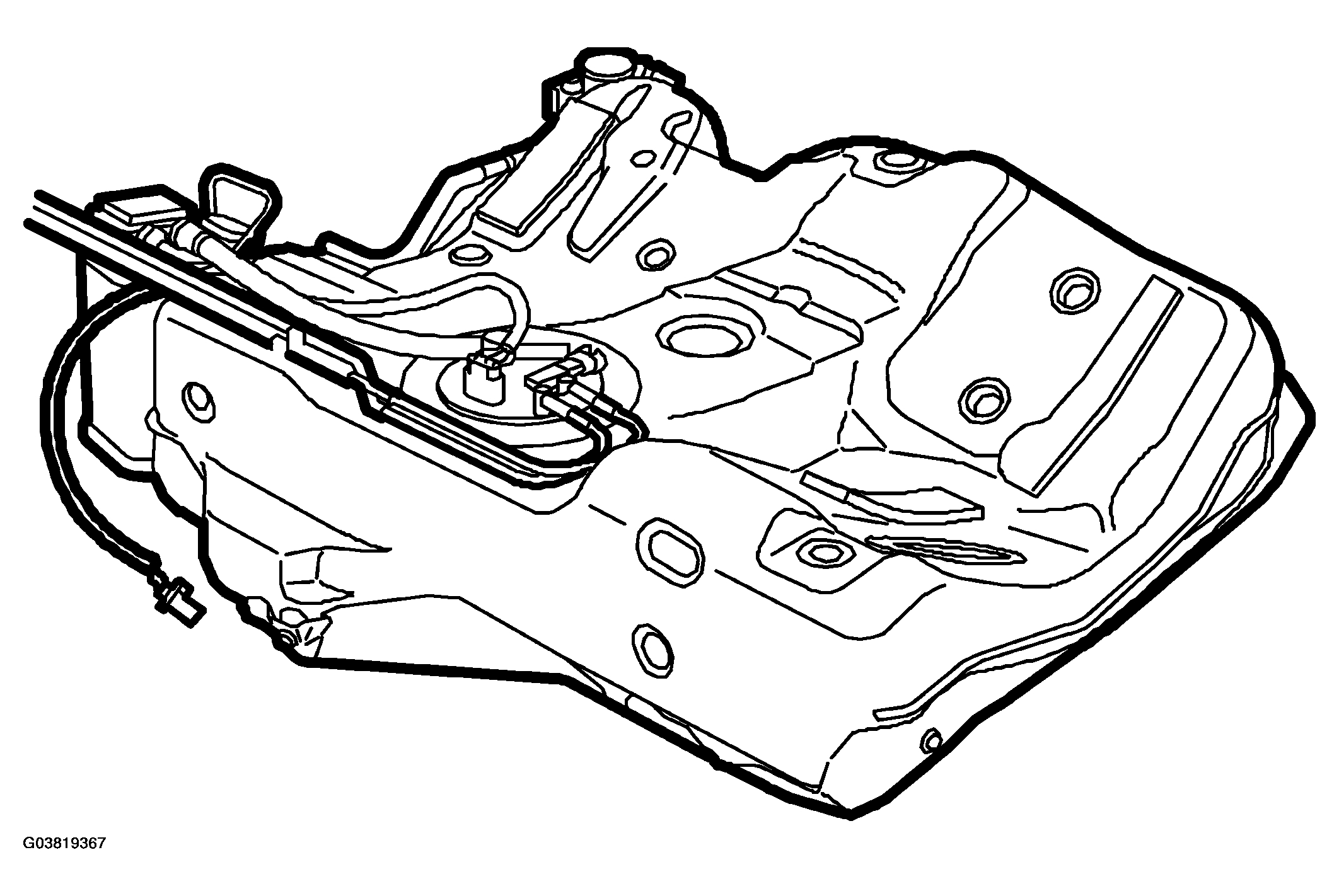

Fig 1: Identifying Fuel Tank
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CAPACITY REFERENCE
Total capacity
58 L
ORVR (US/CA)
62 L
Fuel remaining when low fuel warning lamp comes on
10 L
