To remove

  1. Remove Solenoid, fuel filler flap (434 a), 4D, Solenoid, fuel filler flap, CV (434a)
  2. Remove the filler cap sleeve using 82 93 474 Removal tool. Start removing from the rear edge of the filler cap sleeve so that the locking clips disengage.

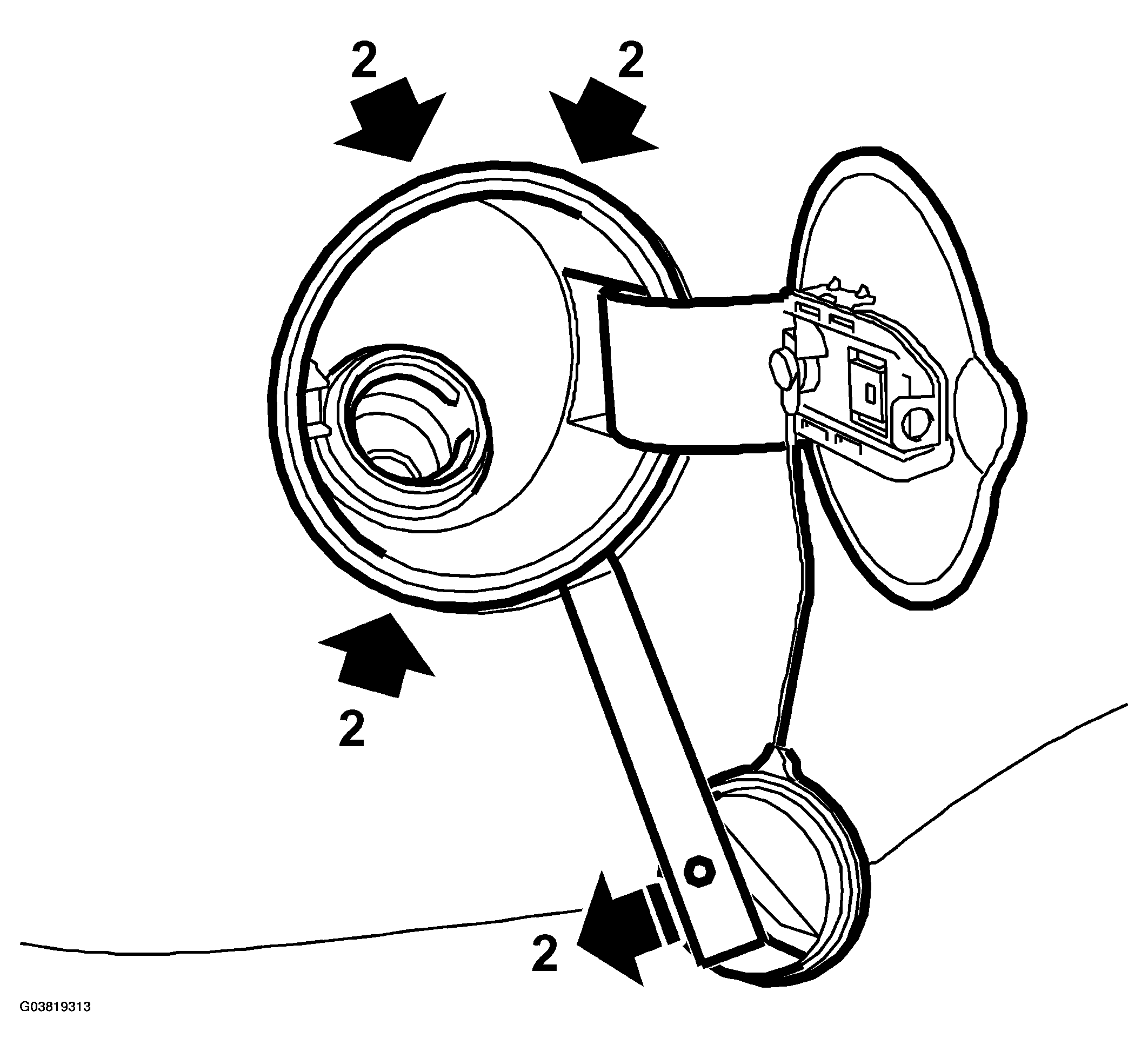

    Fig 1: Removing Filler Cap Sleeve
    G03819313Courtesy of SAAB-SCANIA OF AMERICA, INC.
