To remove

Reduce the fuel pressure by removing fuse 2 when the engine is running (fuse 2 is in the electrical box in front of the battery). When the engine has stopped, turn the ignition key to LOCK and refit the fuse.

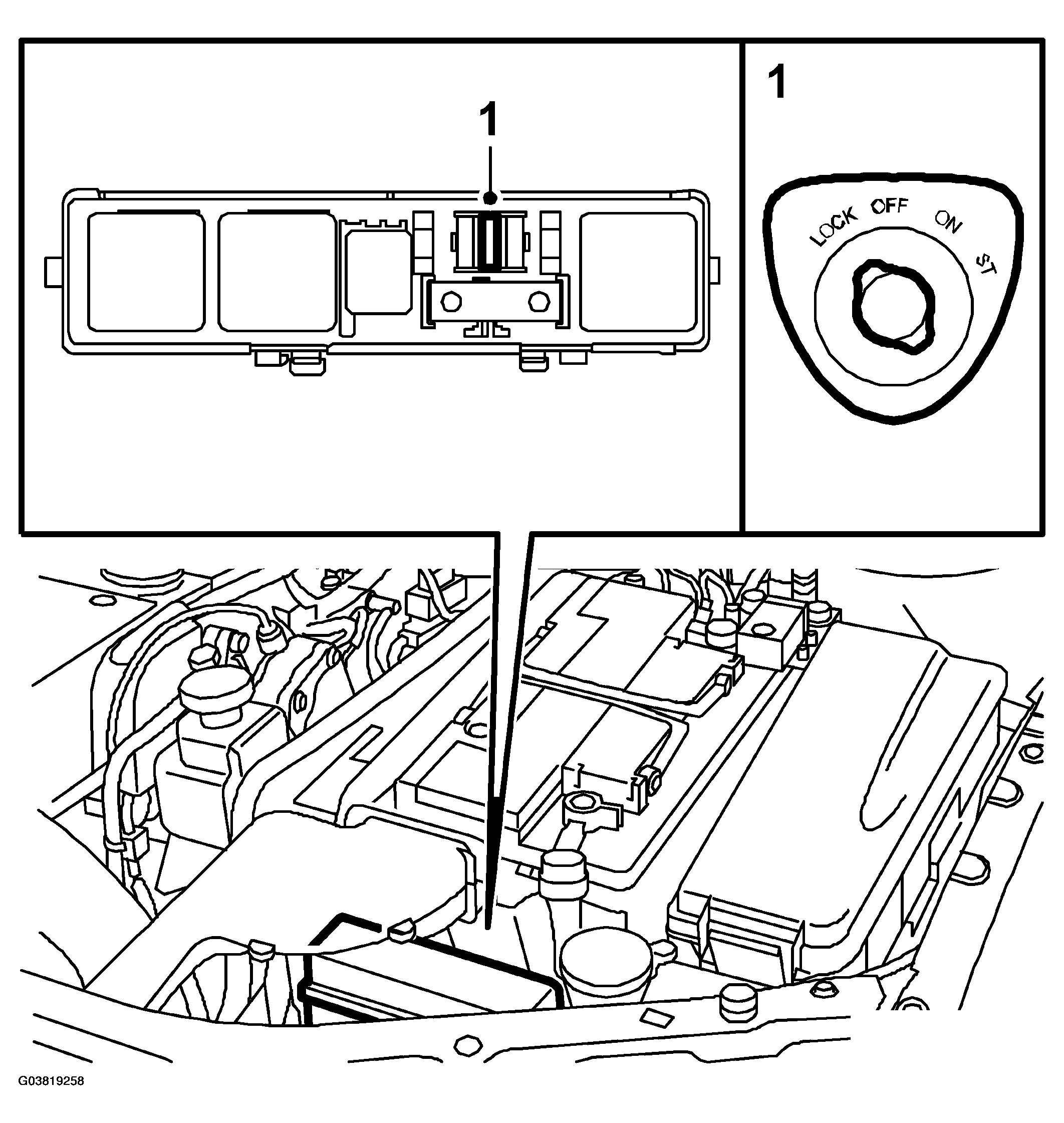

Fig 1: Locating Fuse No. 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Drain the fuel tank. Refer to EMPTYING THE FUEL TANK .
Raise the car.
Remove the exhaust system, refer to EXHAUST SYSTEM .
Unplug the connector on the fuel tank and remove this from its bracket.

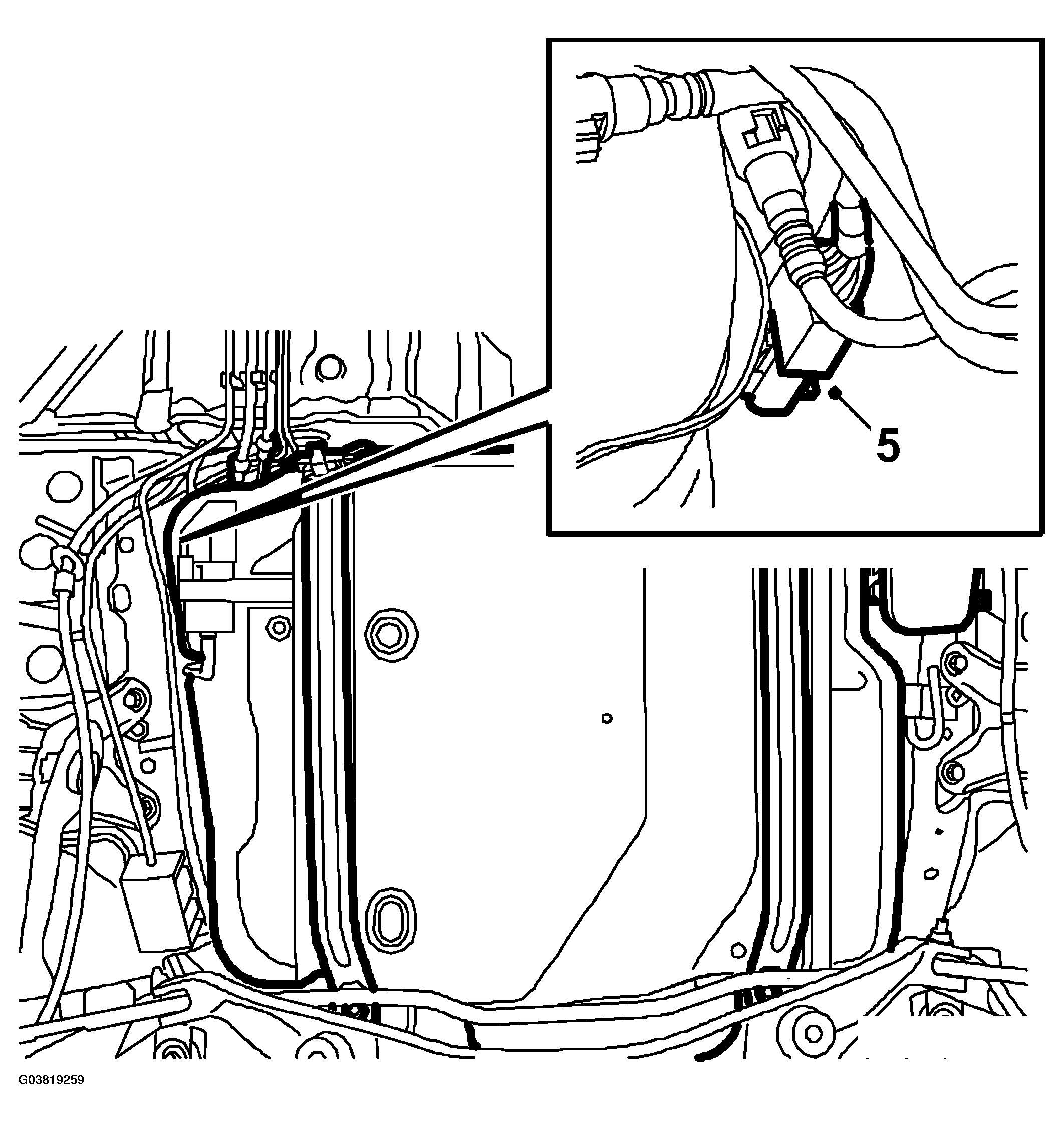

Fig 2: Unplugging Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Place a receptacle under the tank.

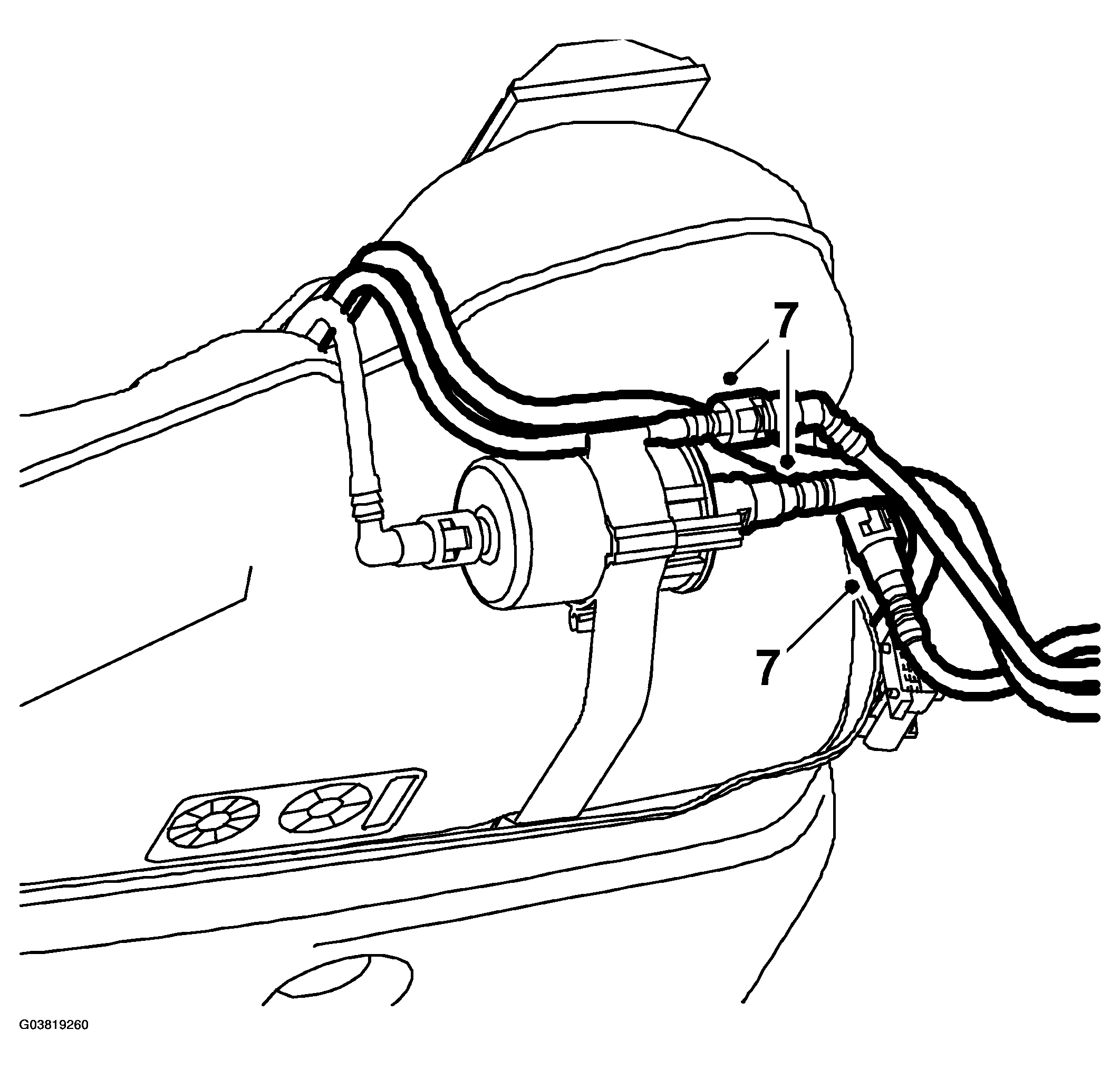

Fig 3: Disconnecting Fuel Lines From Fuel Tank
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Disconnect the fuel lines from the fuel tank. Plug the lines with suitable plugs.
Remove the hose clip and bend aside the filler pipe hose.

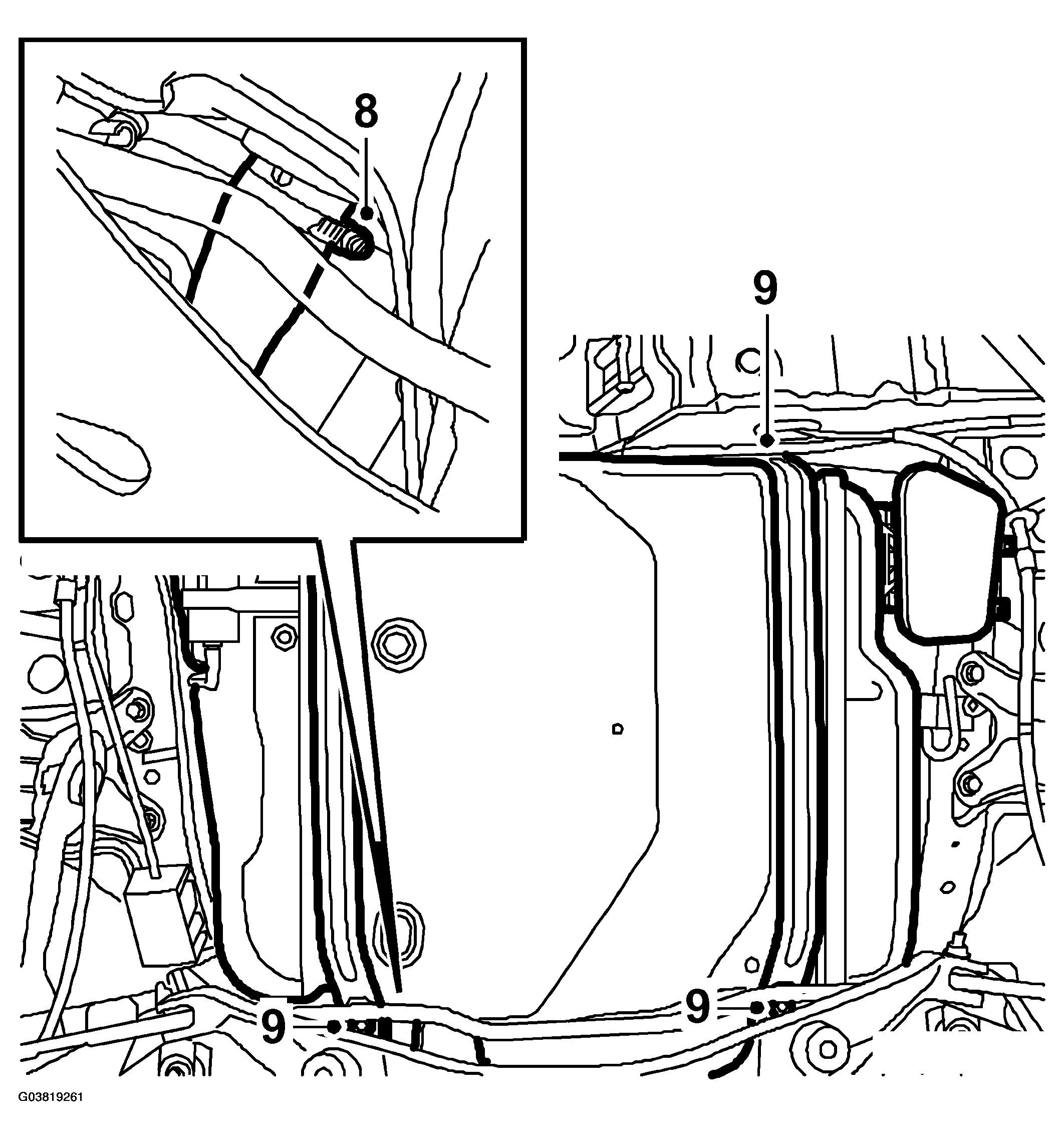

Fig 4: Illustration For Step (8 And 9)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Place a single-support lift under the tank, remove the tank straps and fuel tank. Be careful when removing the tank, ensure that no components or connections are damaged.
