Crimp J203, main wiring harness: Trionic: Notes

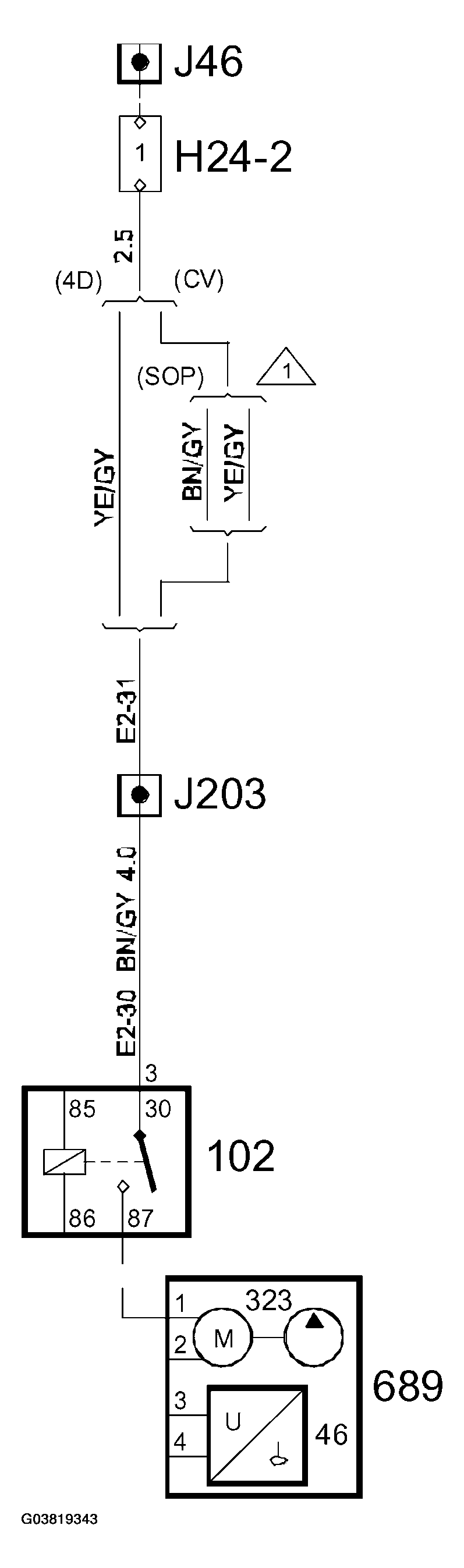

Fig 1: Circuit Diagram - Crimp J203, Main Wiring Harness Trionic
G03819343Courtesy of SAAB-SCANIA OF AMERICA, INC.
