Crimp J45, engine harness, Trionic: Notes

Location:  Approx. 250 mm from branching point connector H24-2 towards the engine control module

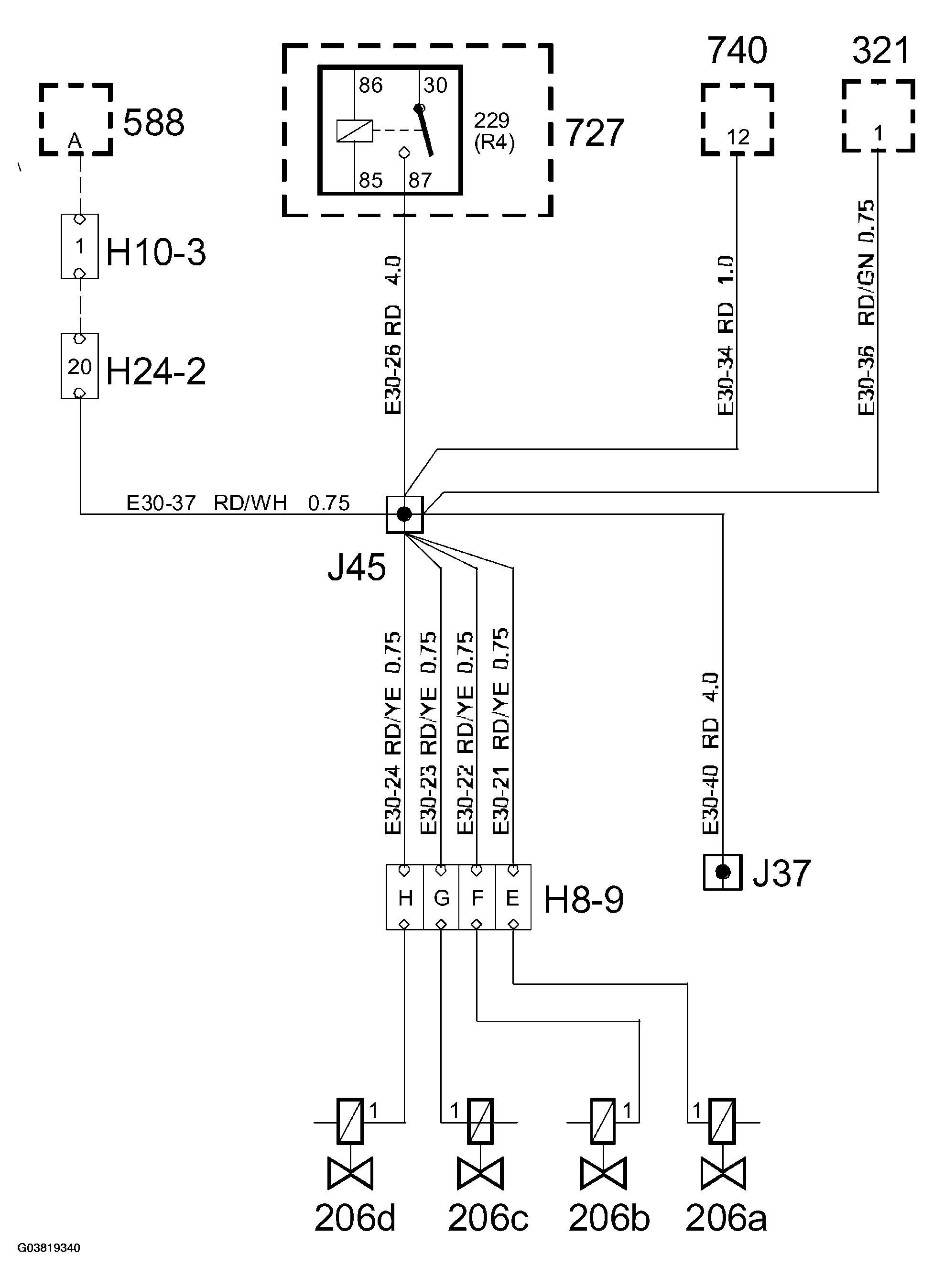

Fig 1: Circuit Diagram Crimp J45, Engine Harness, Trionic

Courtesy of SAAB-SCANIA OF AMERICA, INC.
