TRIONIC T8 Fuel Control System
›
Adjustment / Replacement
›
Upper heated oxygen sensor (592)
›
To remove
To remove
Unplug the oxygen sensor and carefully lower the cable.

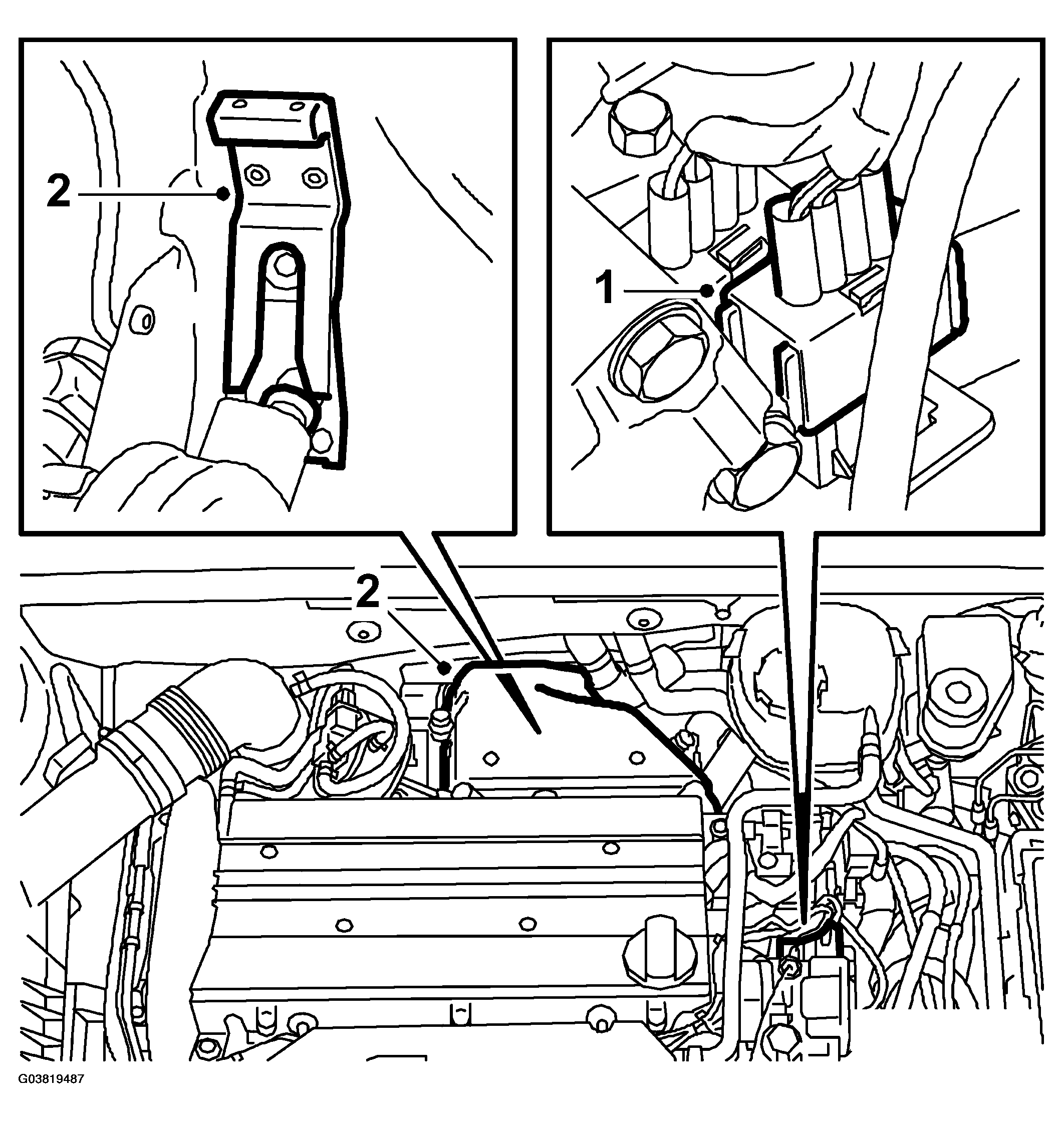

Fig 1: Illustration For Step - 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the heat shield over the turbocharger (note the clip underneath the heat shield, see
Fig 1
.)
Remove the oxygen sensor.

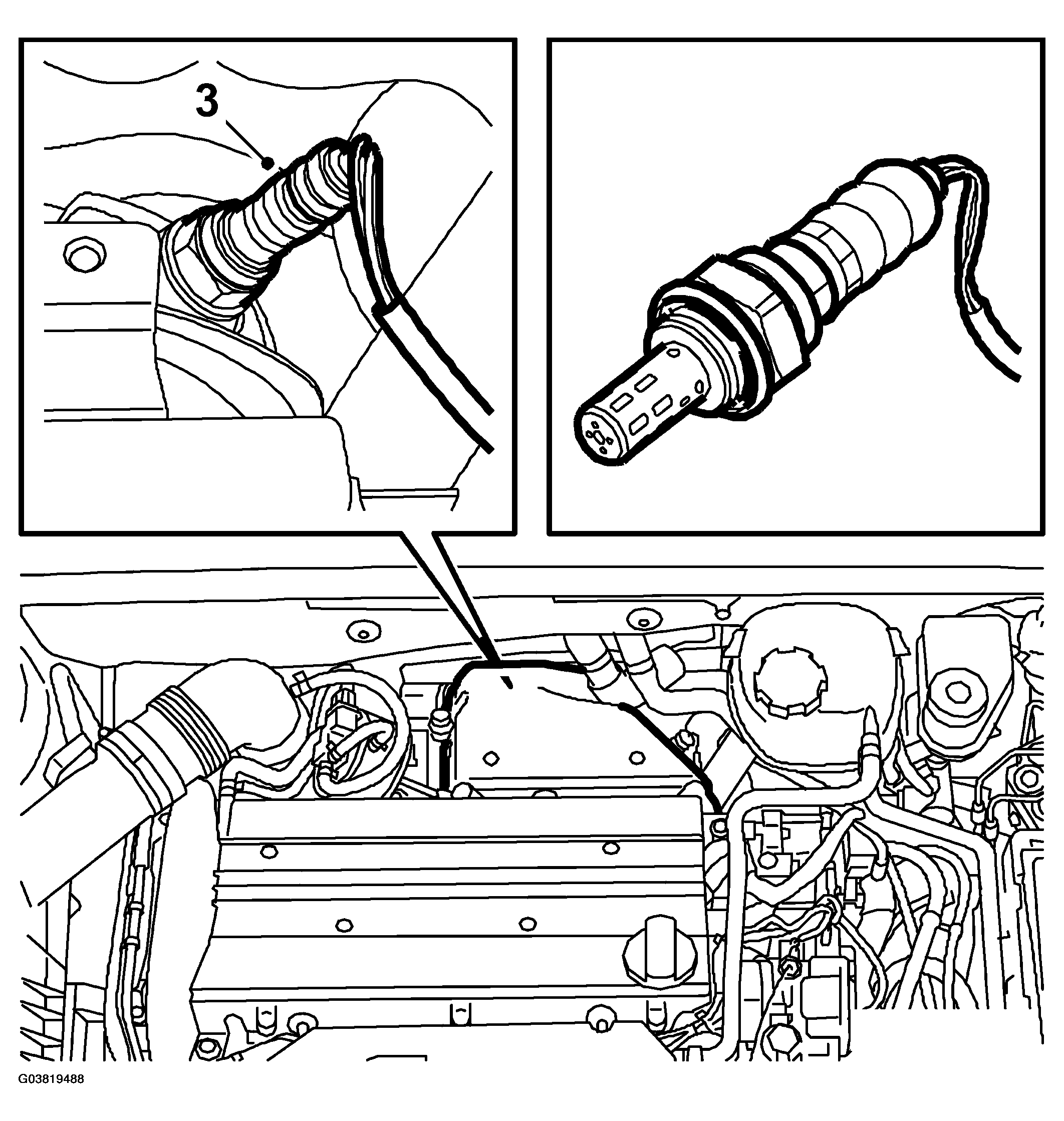

Fig 2: Removing Oxygen Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
