TRIONIC T8 Fuel Control System
›
Component location
›
Connector H33-1
Connector H33-1
Location:
black connector on the console to the left of the ignition switch

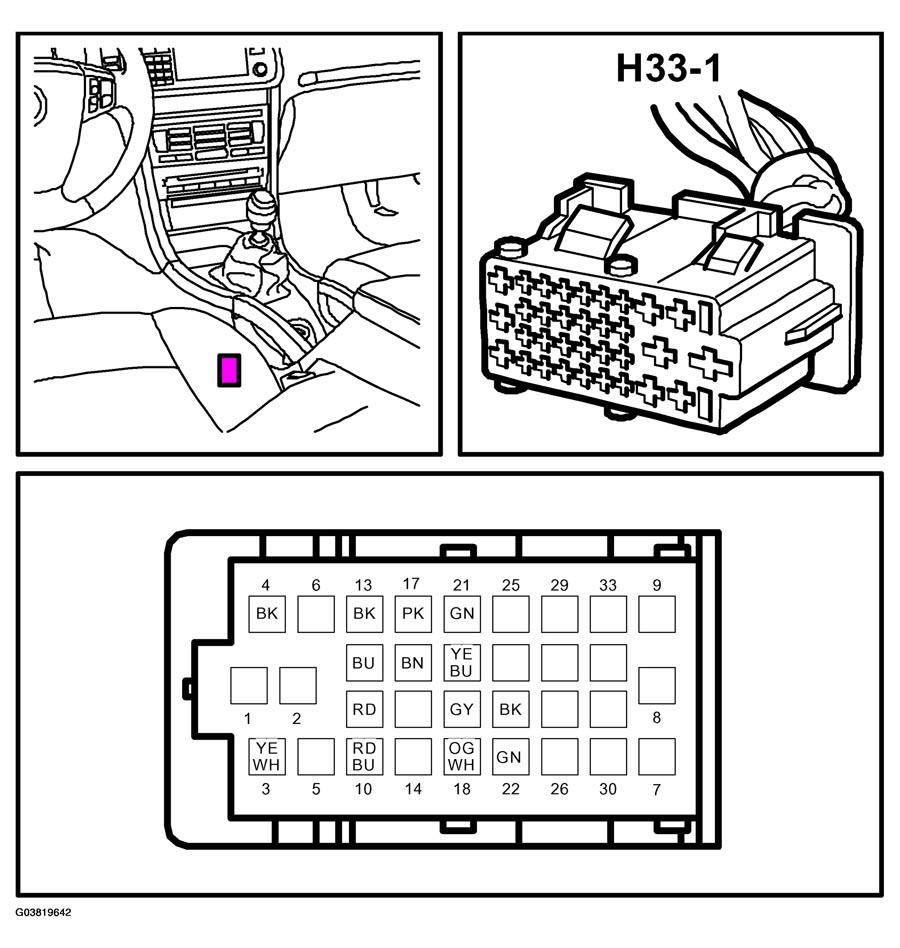

Fig 1: Identifying Connector H33-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
