Crimp J36, engine harness, Trionic: Notes

Location:  Approx. 110 mm from branching of engine control module switch A towards the ignition coils

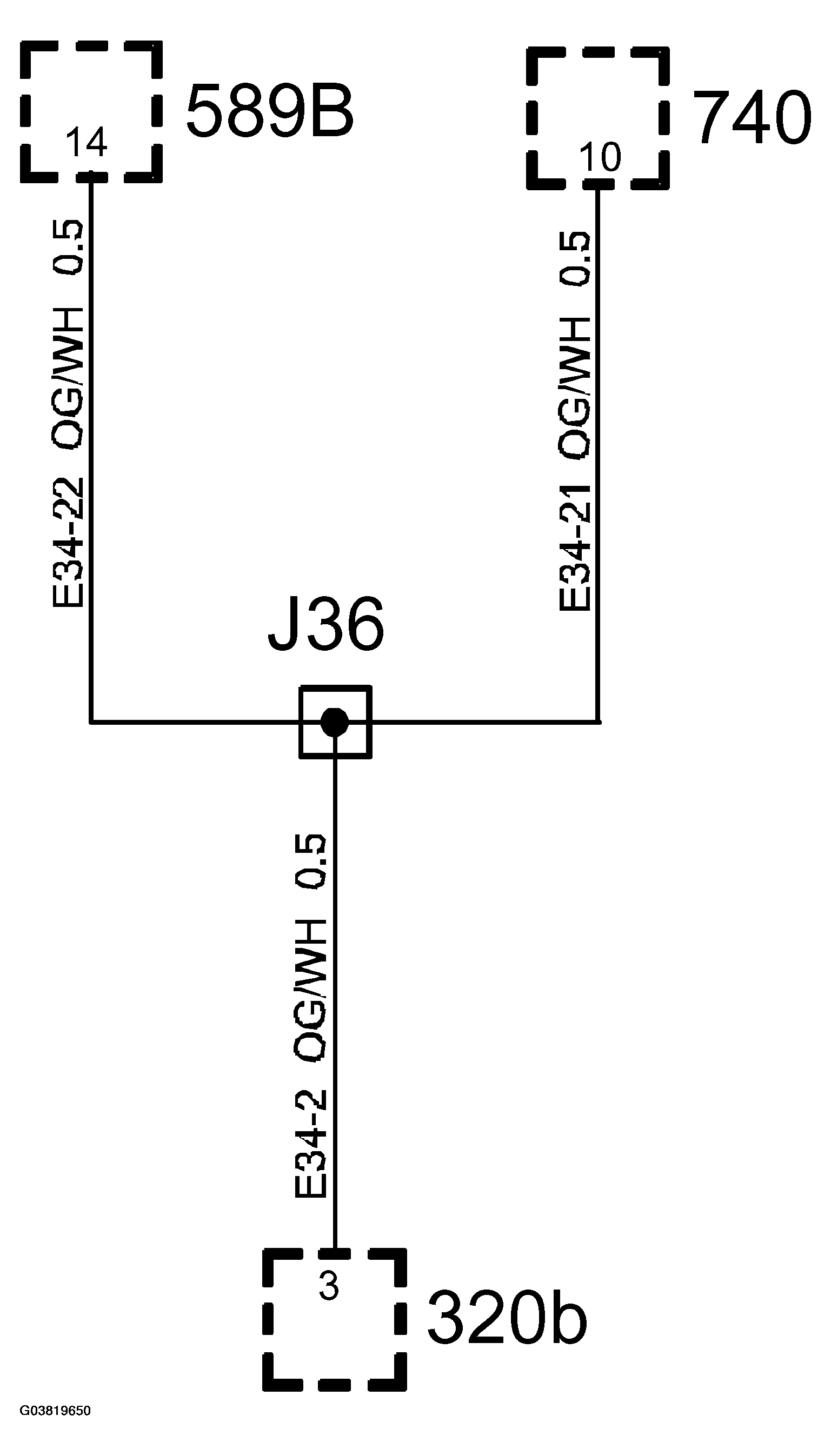

Fig 1: Identifying Engine Harness Trionic - Crimp J36
G03819650Courtesy of SAAB-SCANIA OF AMERICA, INC.
