Crimp J37, engine harness, Trionic: Notes

Location:  Approx. 260 mm from branching of crankshaft sensor towards the engine control module

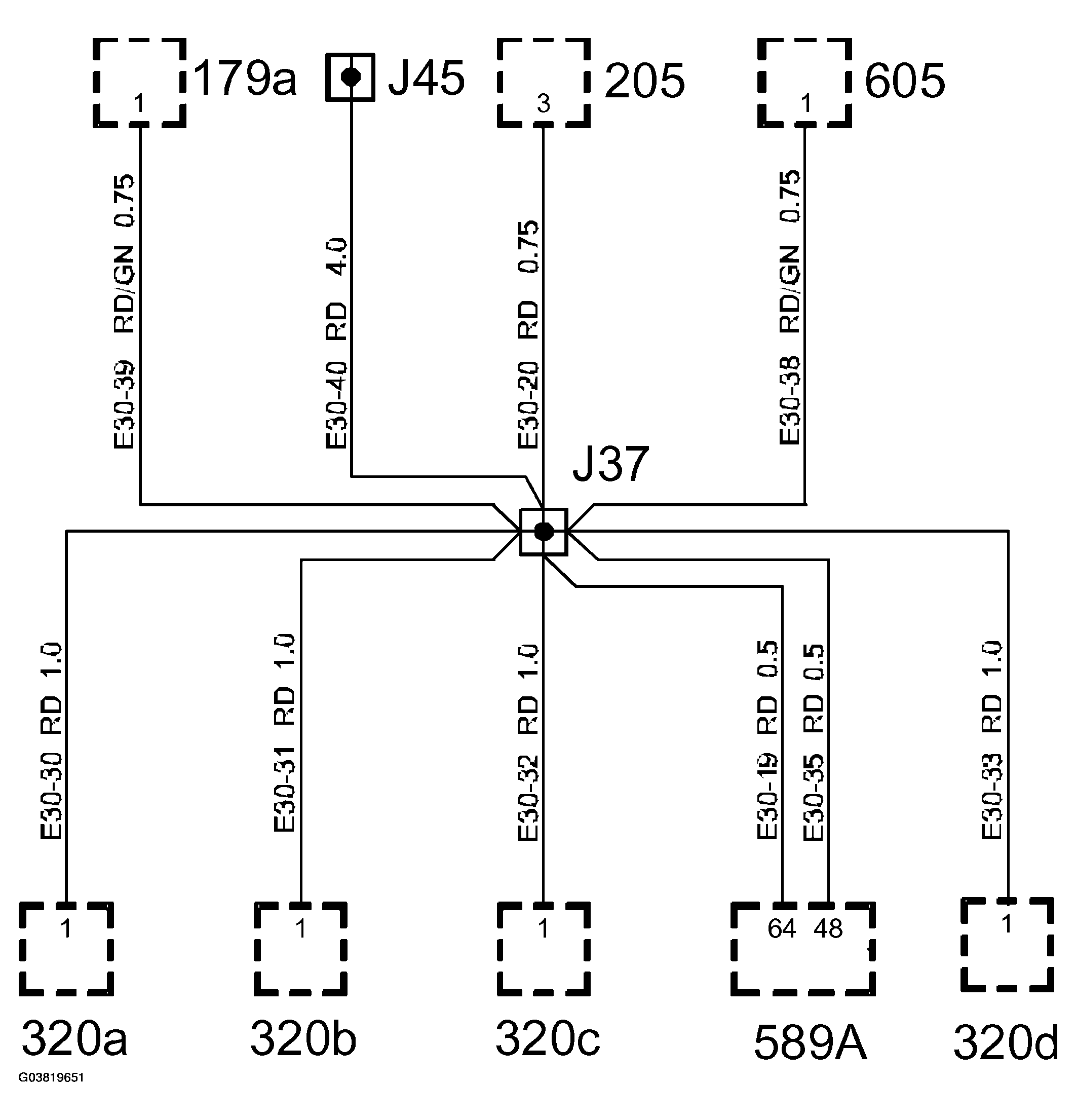

Fig 1: Identifying Engine Harness Trionic - Crimp J37
G03819651Courtesy of SAAB-SCANIA OF AMERICA, INC.
