Crimp J38, engine harness, Trionic: Notes

Location:  Approx. 160 mm from branching of engine control module switch A towards the ignition coils

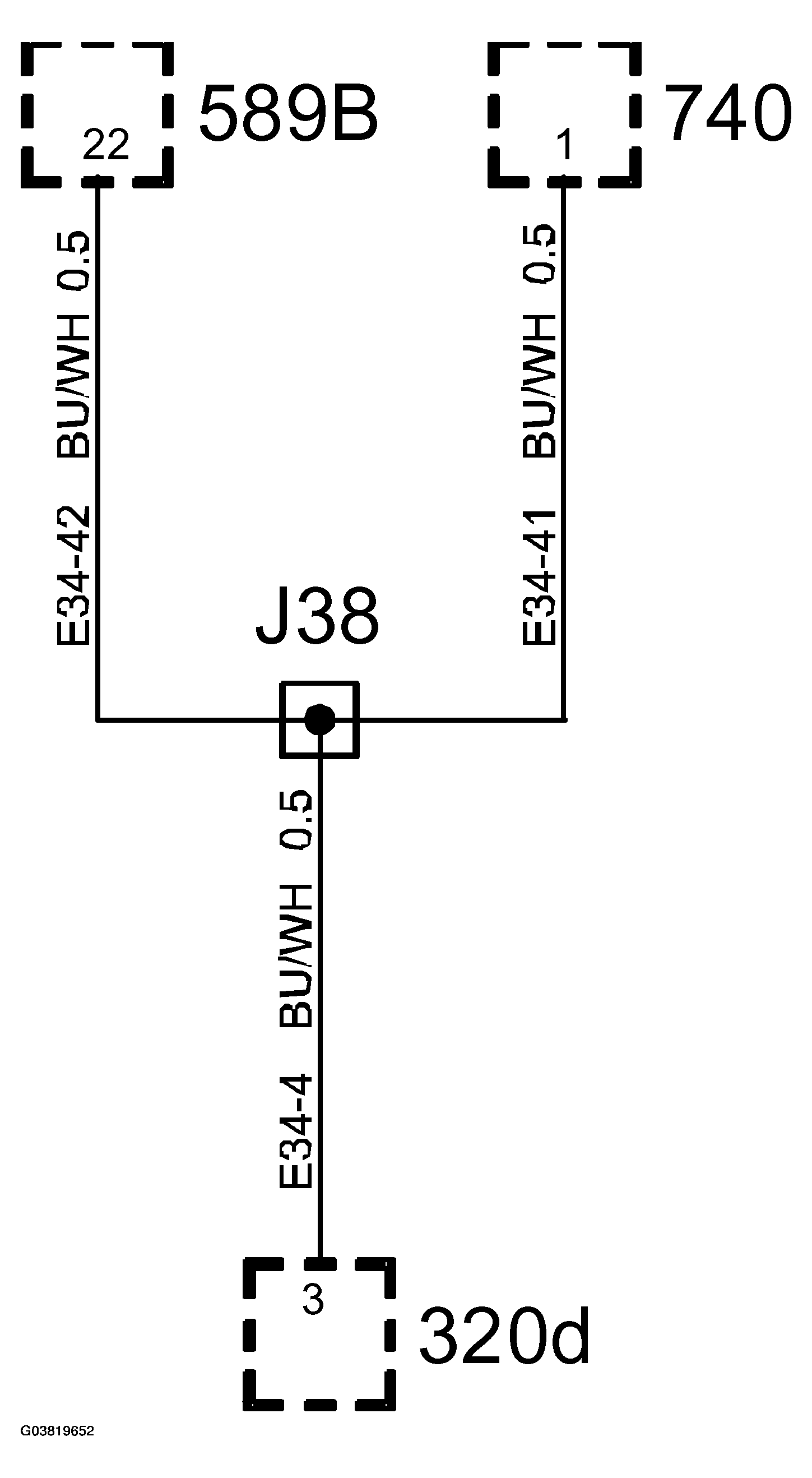

Fig 1: Identifying Engine Harness Trionic - Crimp J38
G03819652Courtesy of SAAB-SCANIA OF AMERICA, INC.
