Home › Saab › 2005 › 9-3 Linear, 2D Convertible, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Fault diagnosis, symptoms › Check Engine lamp, faulty function › Notes

Check Engine lamp, faulty function: Notes

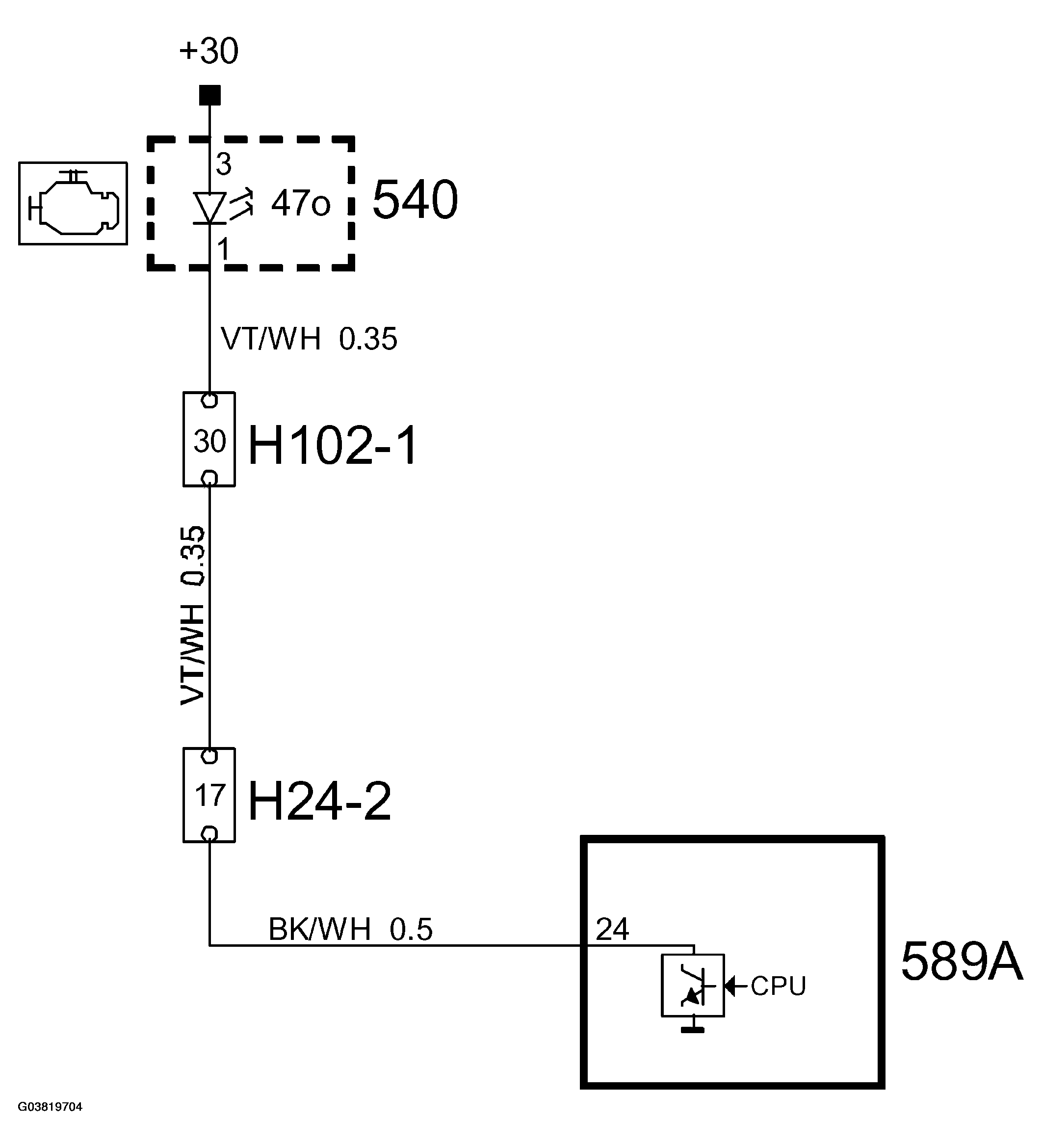

Fig 1: Identifying Circuit Diagram - Engine Lamp
G03819704Courtesy of SAAB-SCANIA OF AMERICA, INC.
