Relay, A/C compressor (156)

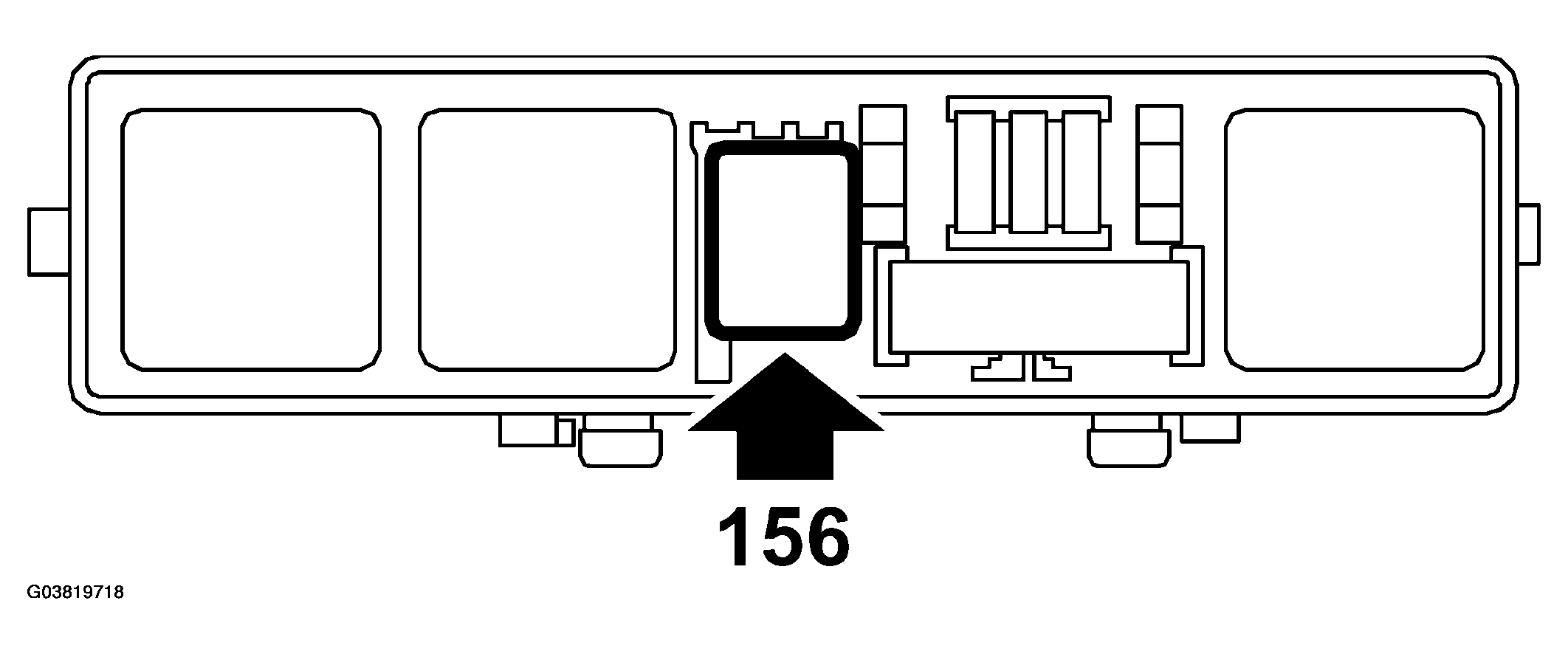

Fig 1: Identifying Relay, A/C Compressor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

COMPRESSOR SPECIFICATION

Resistance, winding at 20°C (68° F)	85+/-5 Ohm
Nominal control voltage	12 V
Nominal current	30 A
