Coolant level switch (242): Connection

PIN DESCRIPTION

Pin No.	Signal type	Description
1	Signal	Connects to BCM pin (A)13 in (K78)
2	Ground	Connects to grounding point G33S

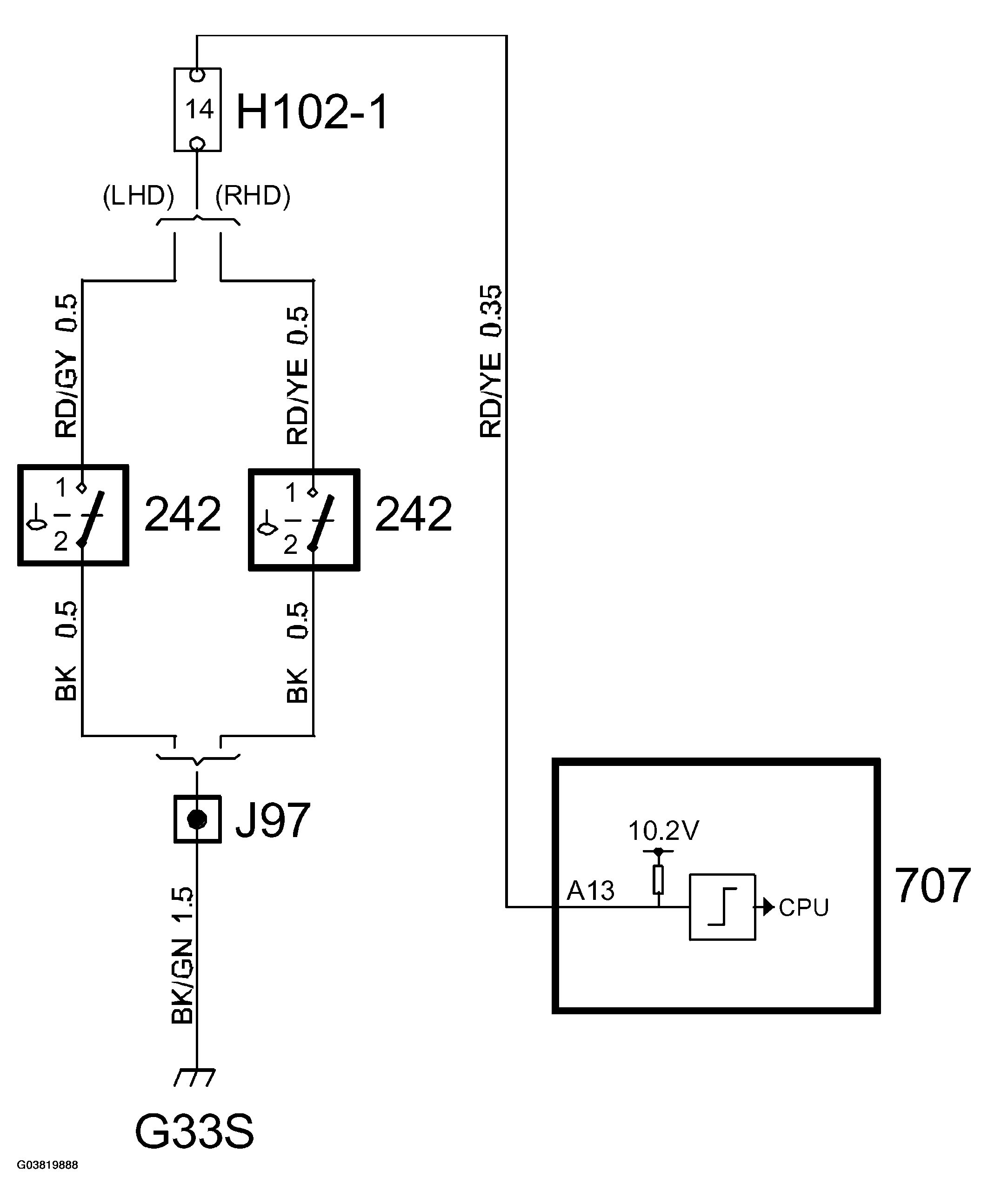

Fig 1: Identifying Coolant Level Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.
