Fuel level sensor (46), T8: Connection

PIN DESCRIPTION

Pin No.	Signal type	Description
2	Signal	The pin is supplied with 5 V via 487 Ohm internally in the ECM. Connected to ECM pin 10(A).
3	Ground	Sensor's ground. Connected to ECM pin 31(A).

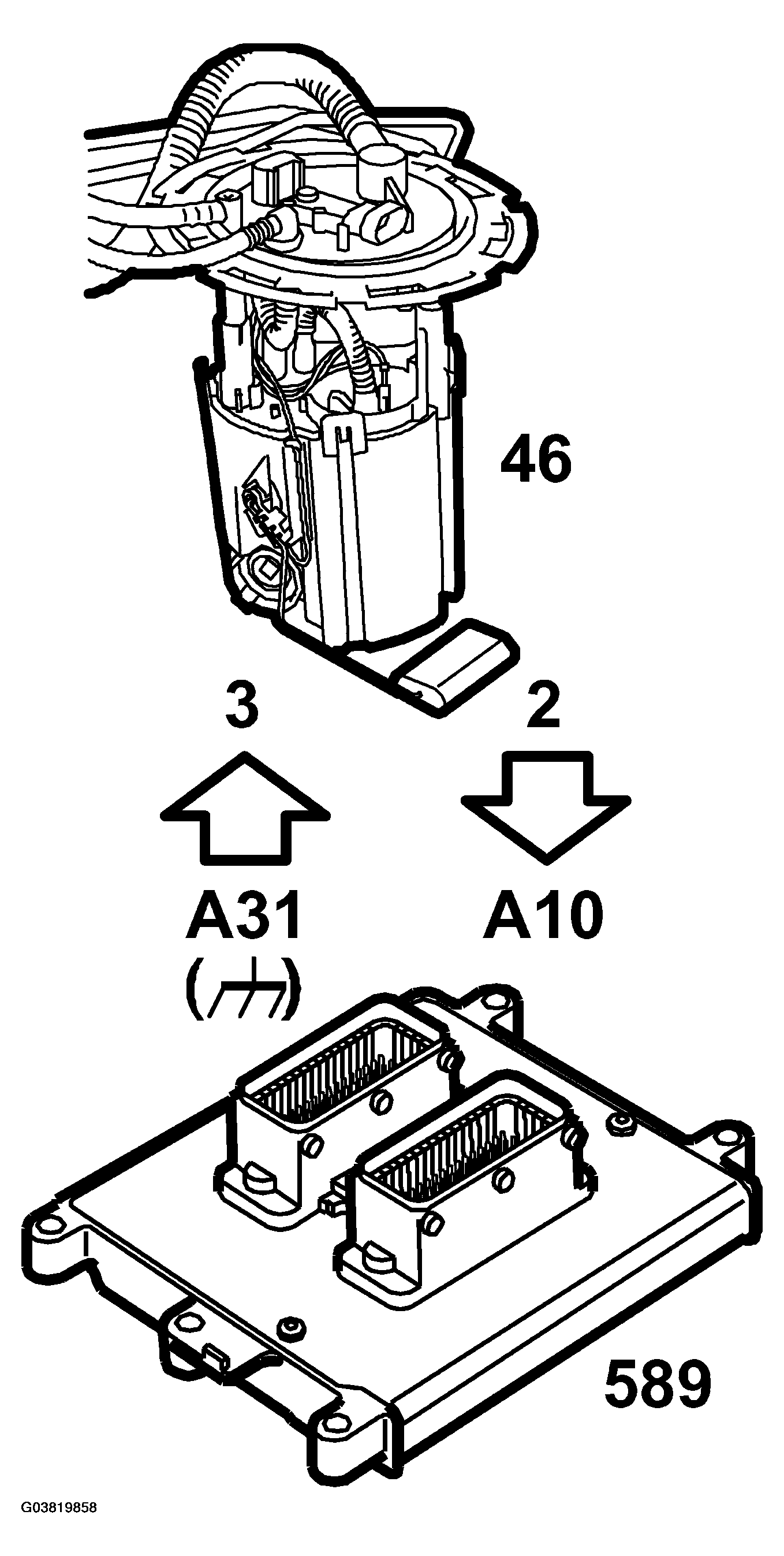

Fig 1: Identifying Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

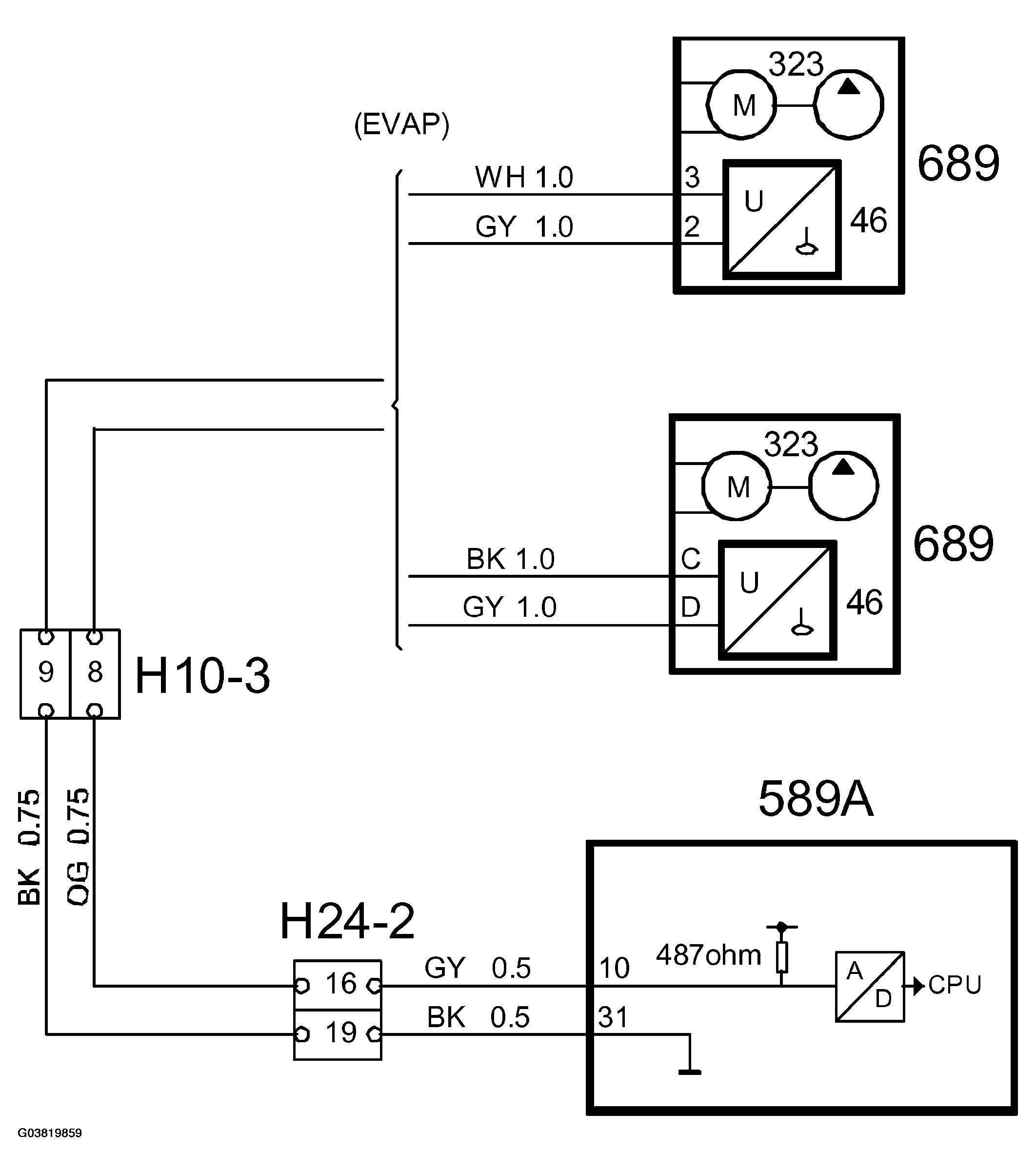

Fig 2: Identifying Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
