Limitation of engine torque, 2x: General: Brake

Maximum permitted engine torque must be limited when the brake pedal is depressed for reasons of durability.

Maximum permitted torque with brake pedal depressed is 200 Nm.

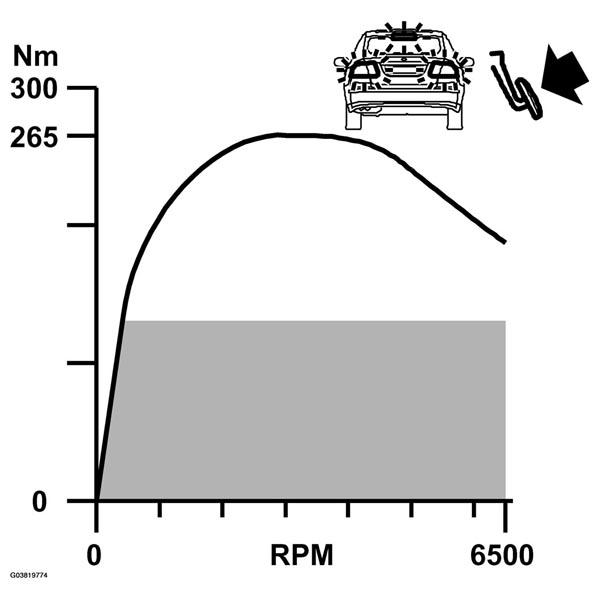

Fig 1: Identifying RPM Pattern - Brake

Courtesy of SAAB-SCANIA OF AMERICA, INC.
