Fuse 2, engine bay fuse box 342: Trionic

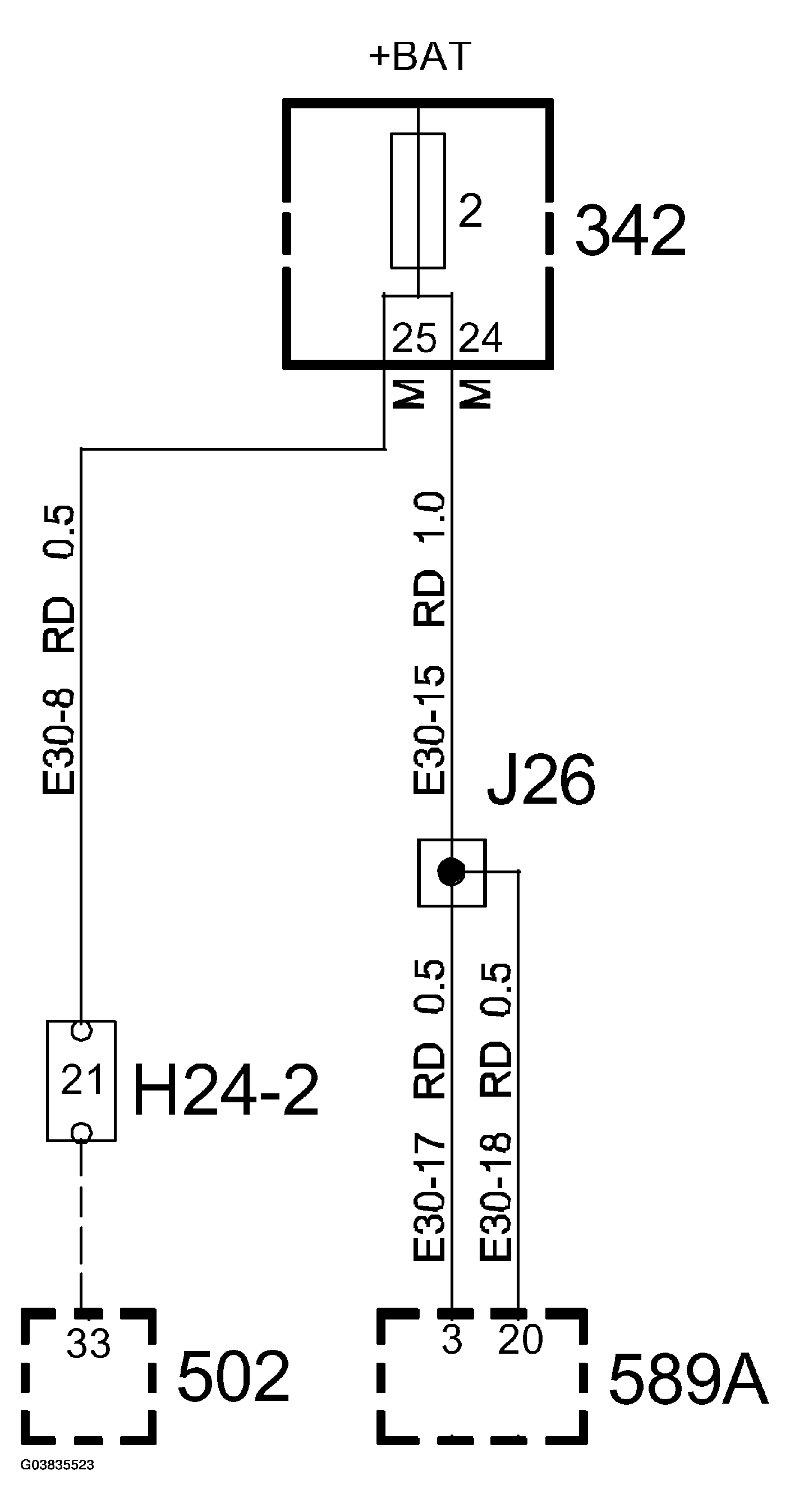

Fig 1: Engine Bay Fuse Box Wiring Diagram (Trionic)
G03835523Courtesy of SAAB-SCANIA OF AMERICA, INC.
