To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

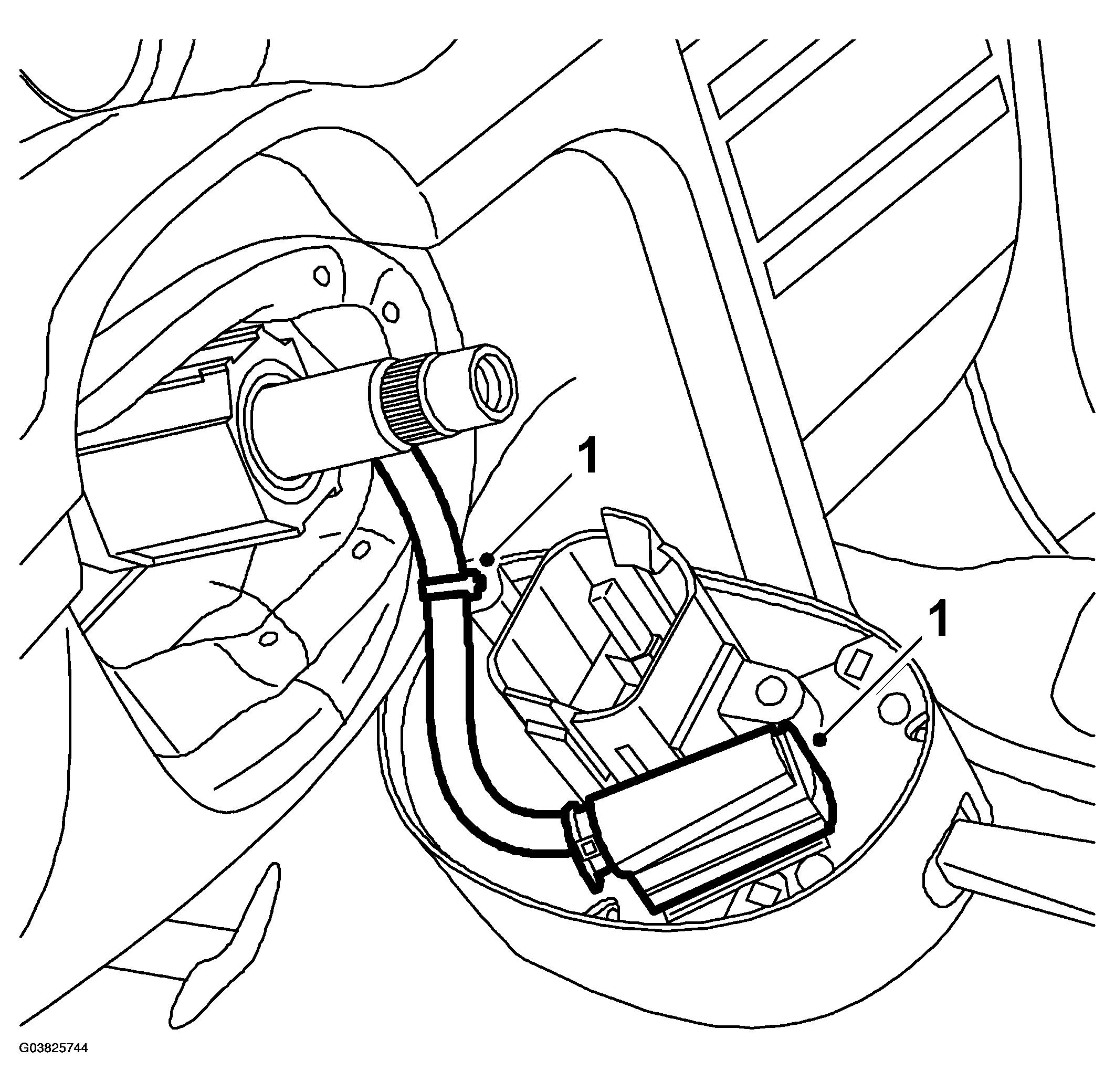

Plug in the control module connector and fit the clip.

Fig 1: Illustration For Step - 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

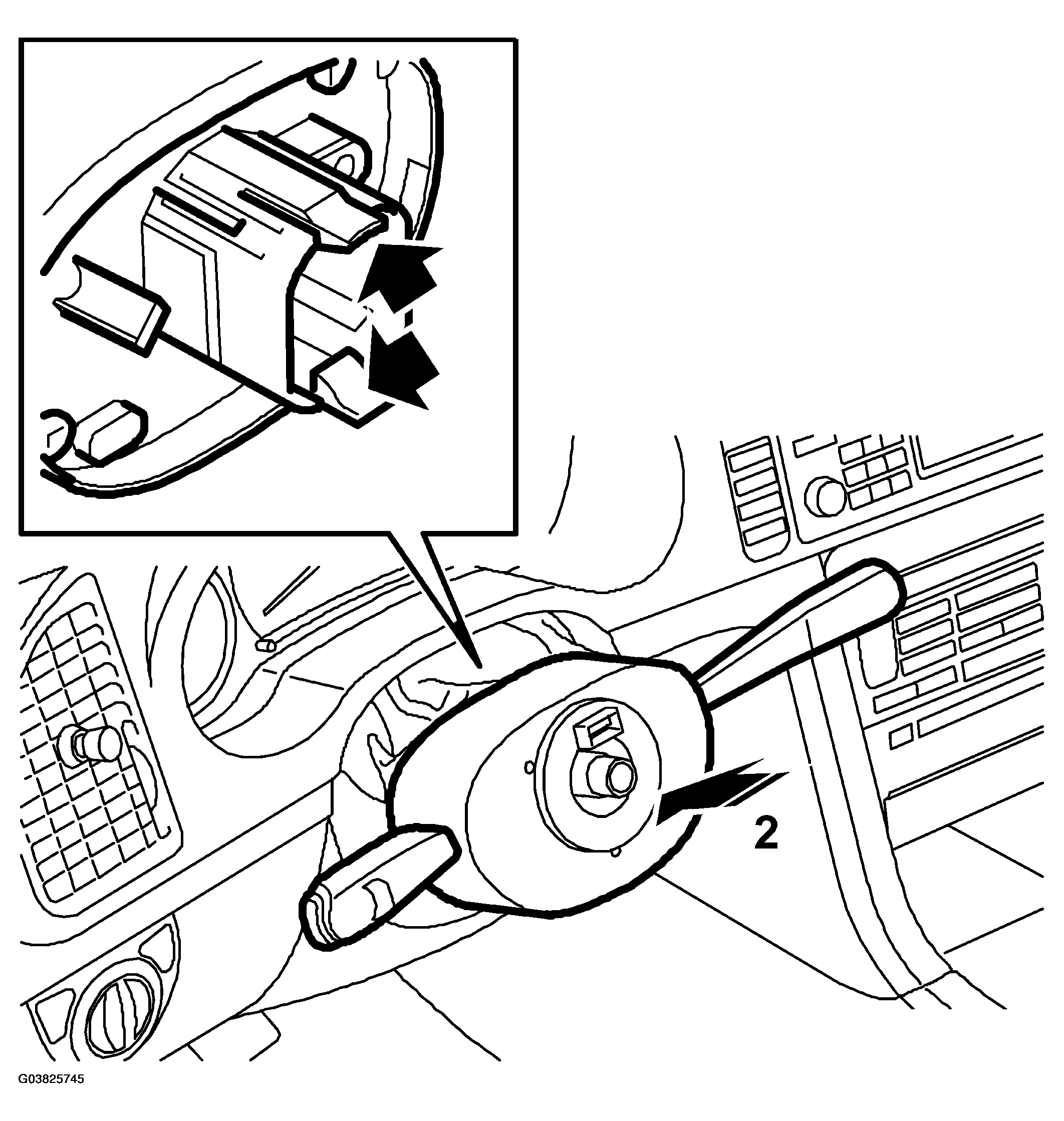

Fit the control module to the steering shaft.

Fig 2: Illustration For Step - 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

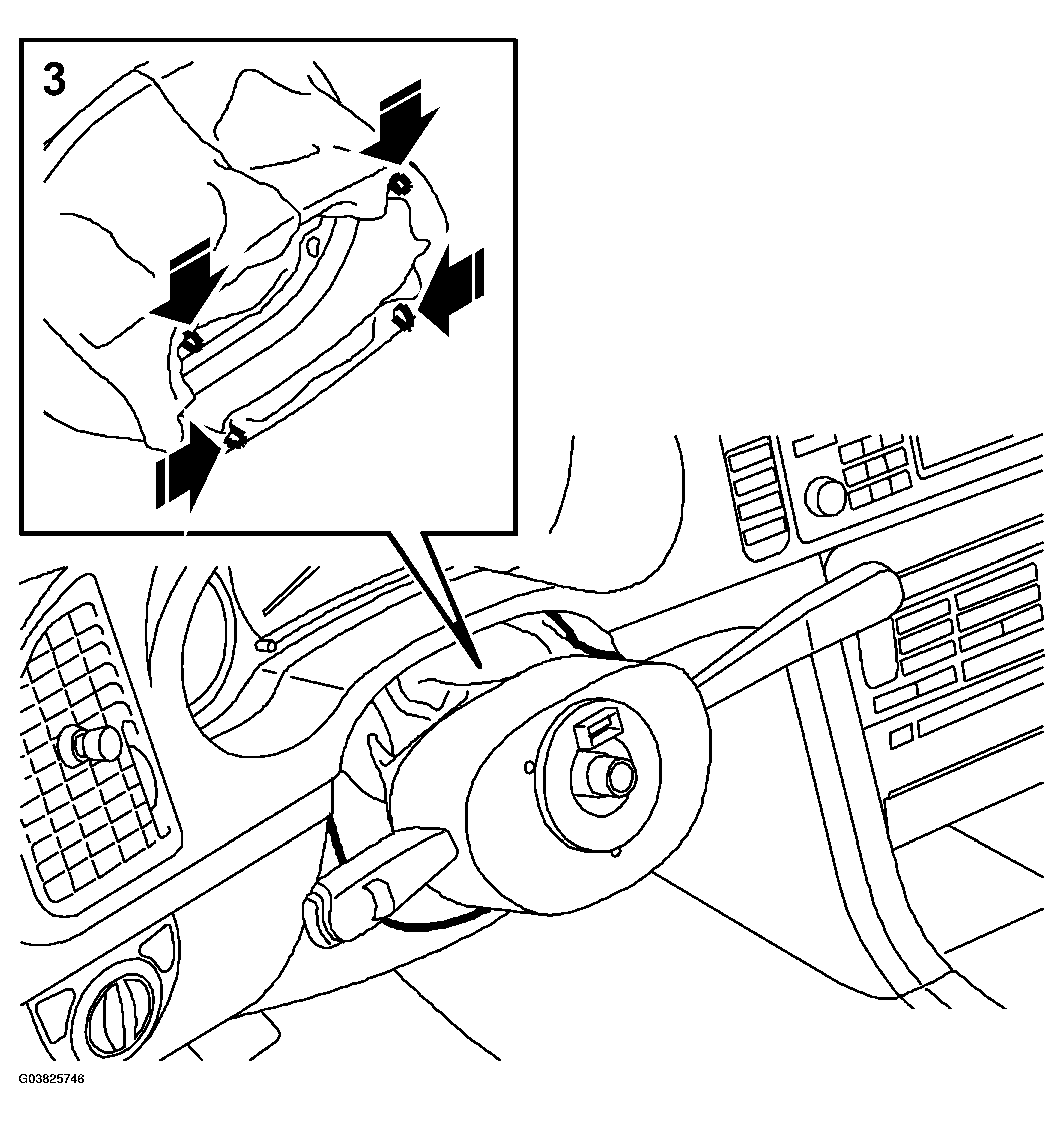

Fit the gaiter to the control module.

Fig 3: Fitting Gaiter To Control Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the steering wheel.
Carry out "PROCEDURE AFTER CHANGING THE CONTROL MODULE ".
