Crimp J145 Bootlid harness: Notes

Location:

4D:  Approx. 80 mm from the branching point of the right tail light towards left tail light

CV:  Approx. 110 mm from the branching point of the right tail light towards the left tail light

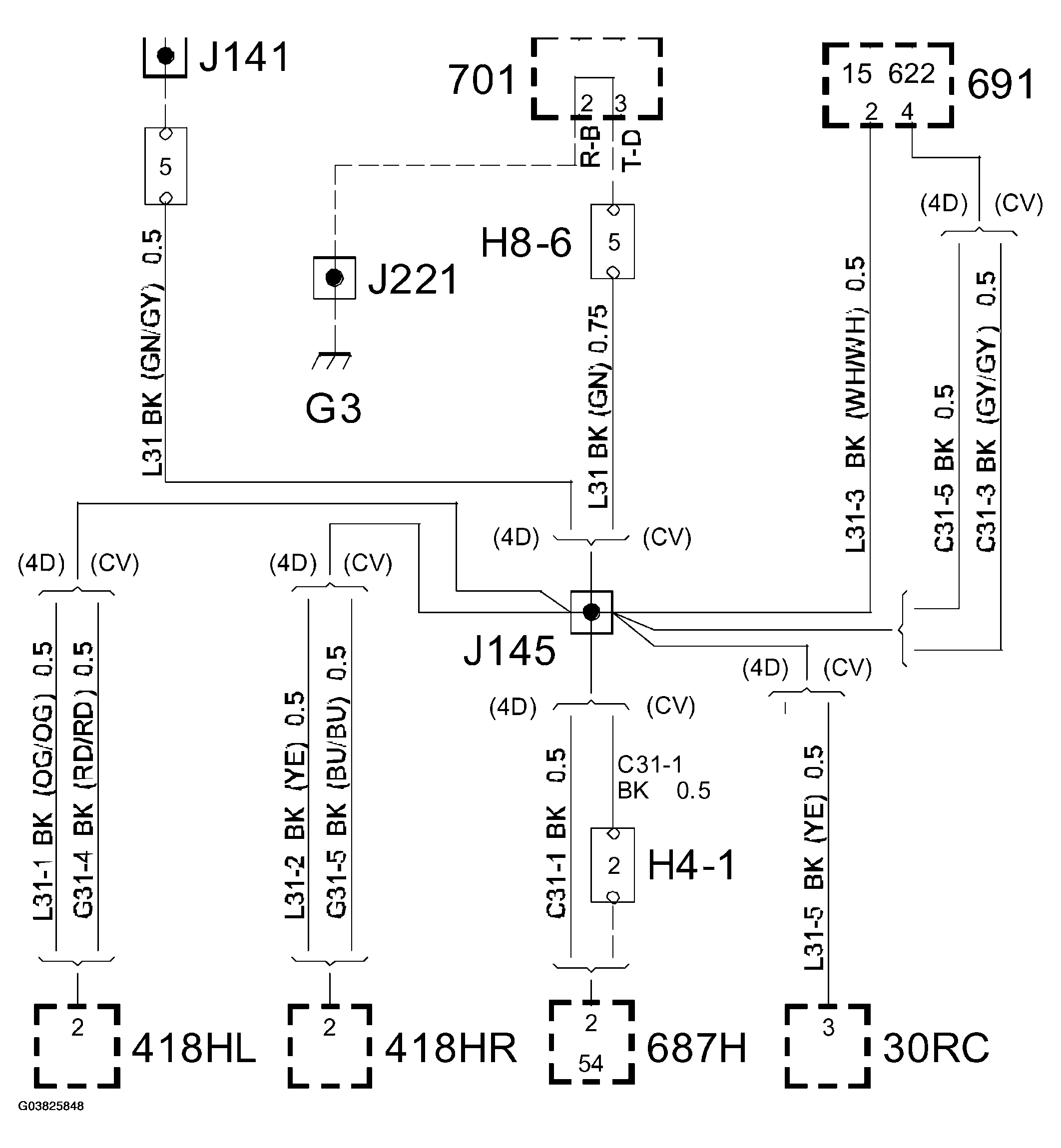

Fig 1: Identifying Crimp J145

Courtesy of SAAB-SCANIA OF AMERICA, INC.
