Backrest tab, front seat, Convertible
›
To remove
To remove
Fold the backrest down and remove the backrest tab clips using
82 93 474 REMOVAL TOOL
.

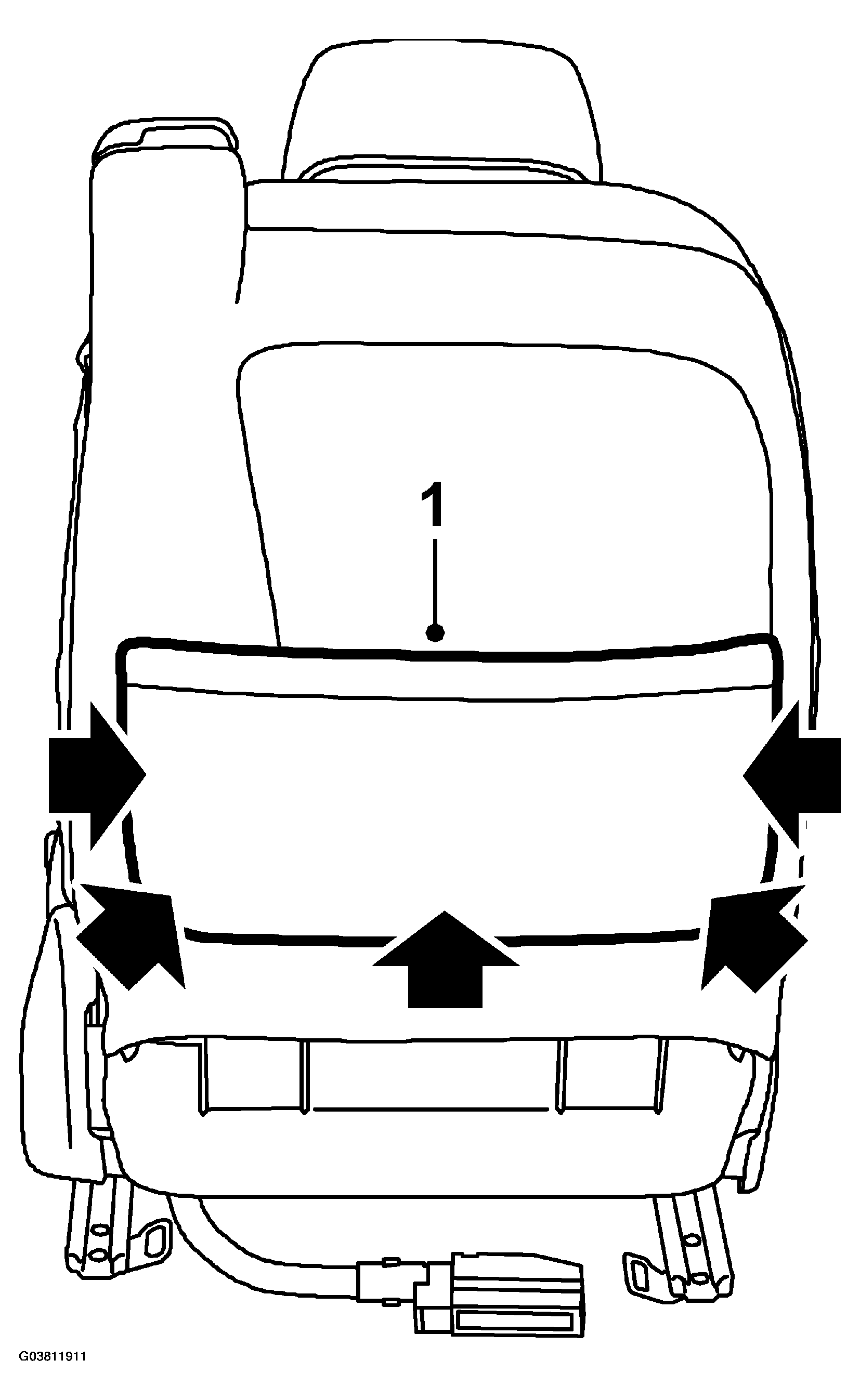

Fig 1: Removing Backrest Tab Clips
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift up the tab so that the hooks in the upper edge detach from the cover.

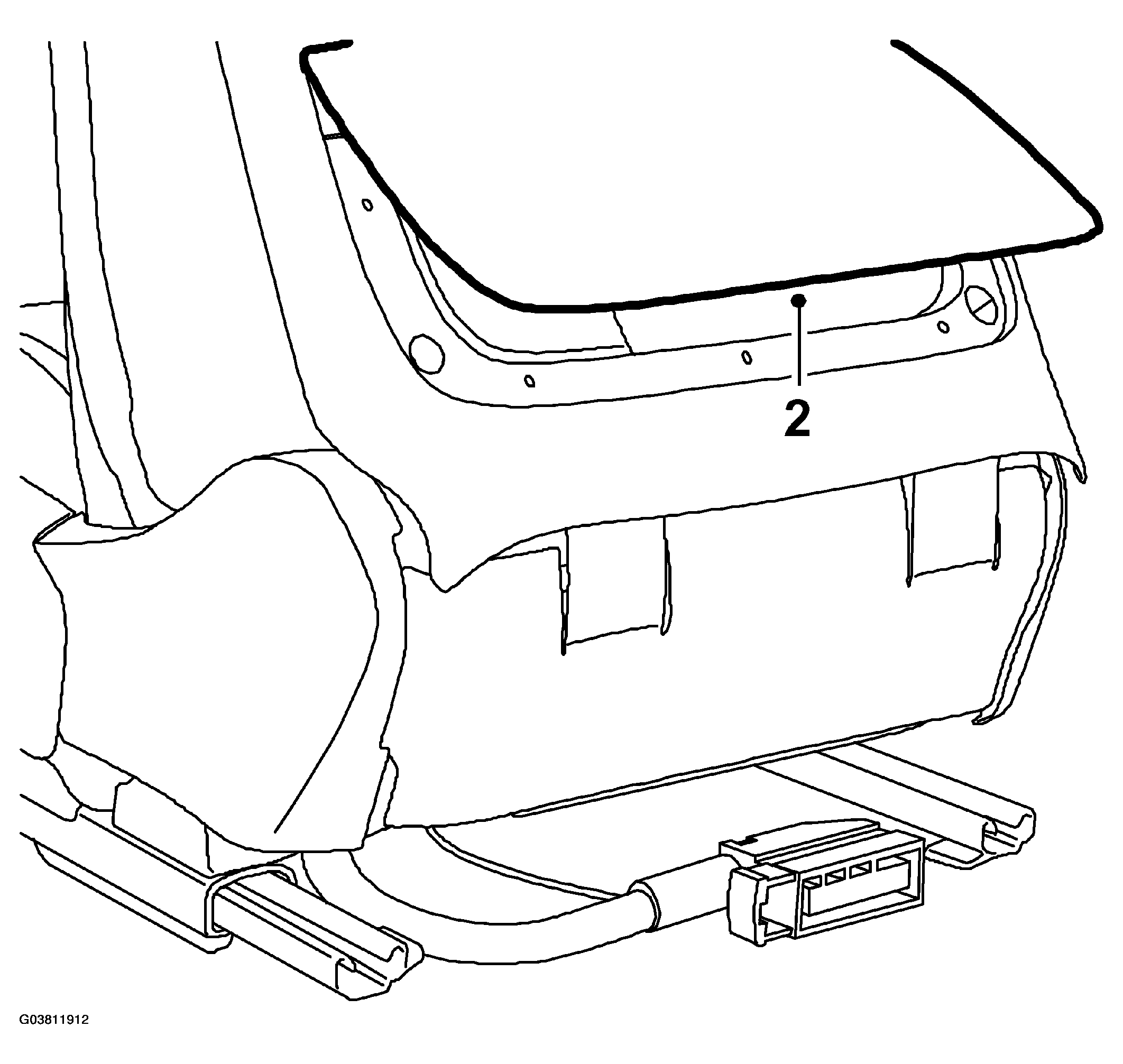

Fig 2: Lifting Up Tab
Courtesy of SAAB-SCANIA OF AMERICA, INC.
