Main components, Telematics

4D

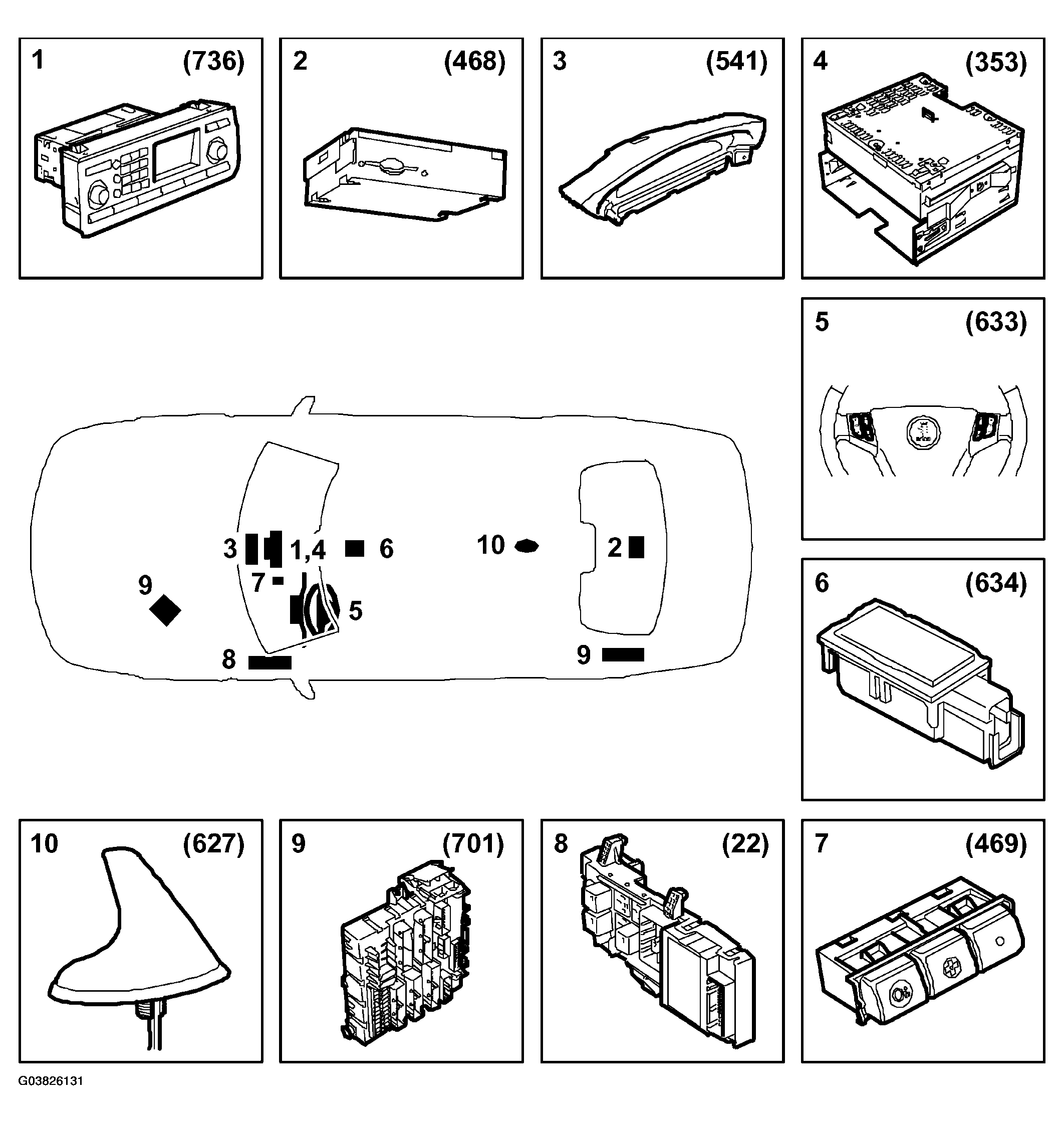

Fig 1: Identifying Telematics Main Components (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CV

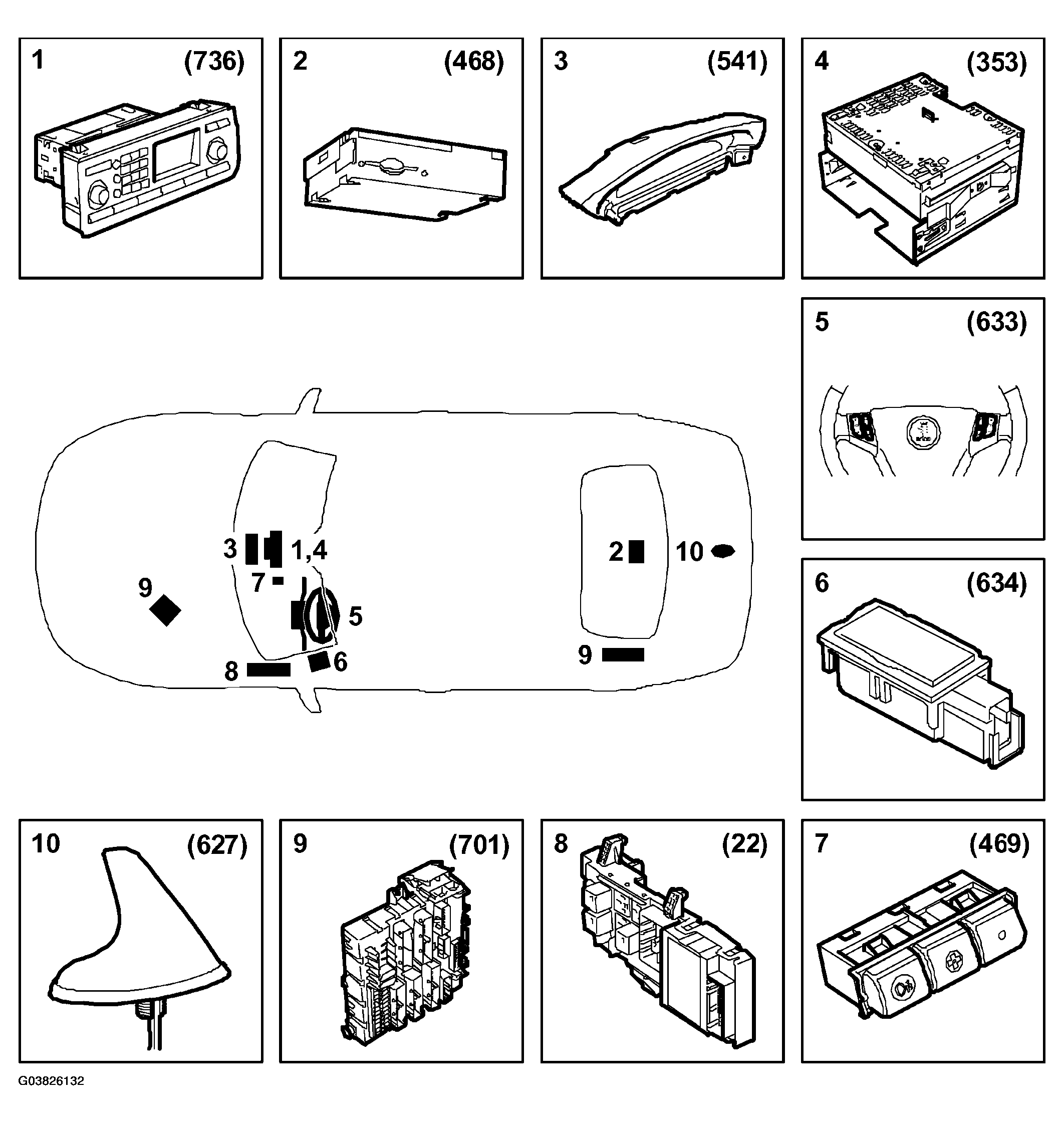

Fig 2: Identifying Telematics Main Components (CV)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Infotainment control panel 2-3 (736b, c)
2. Telematics unit (468)
3. SID (541c)
4. Entertainment head unit (353)
5. Steering wheel controls (633)
6. Microphone (634)
7. OnStar control panel (469)
8. Column integration module (703)
9. Rear electrical centre (701)
10. Antenna, mobile phone (627)
