To remove

  1. Open the tailgate.
  2. Remove the inner handle. Remove the trim clips.

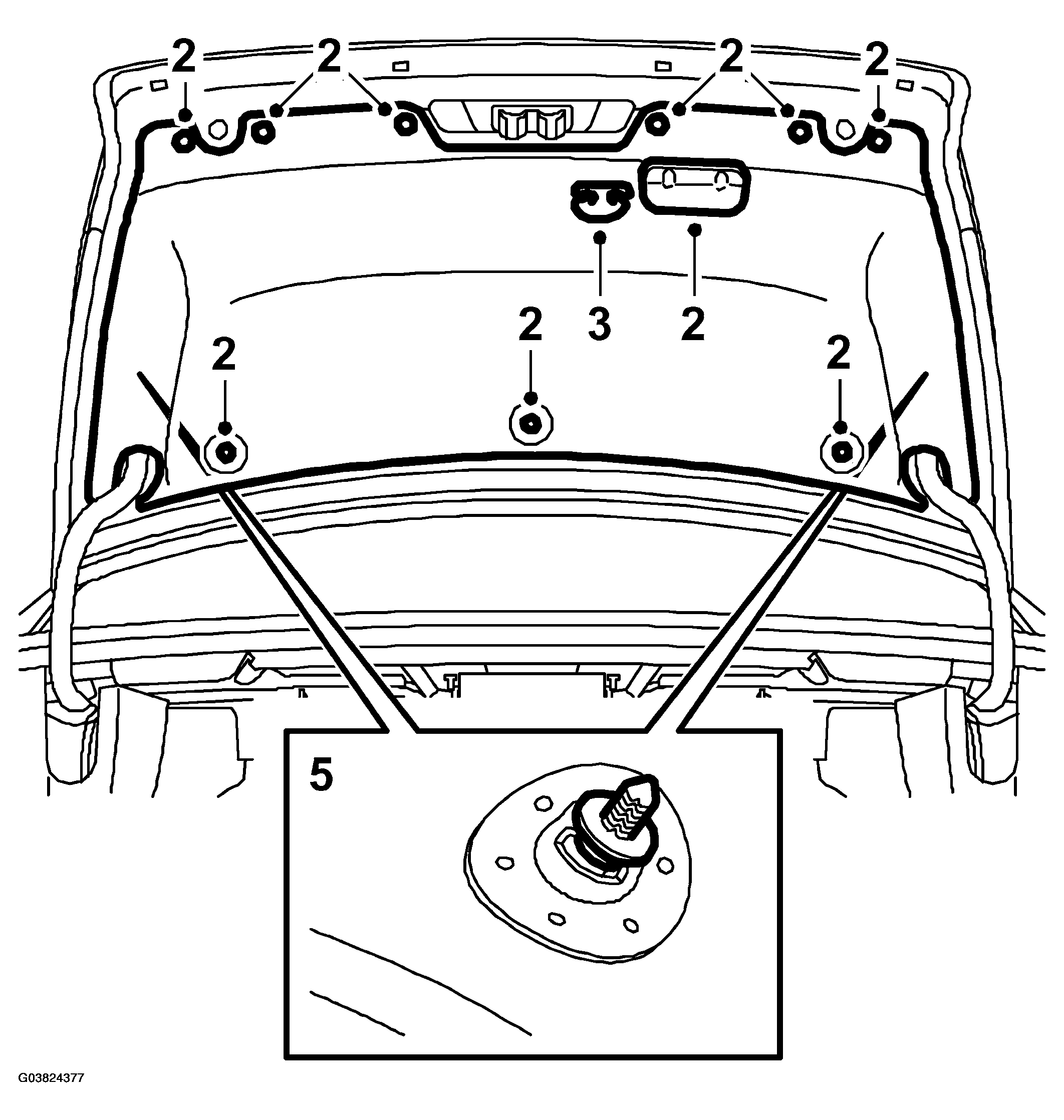

    Fig 1: Illustration For Step 2-3, 5
    G03824377Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. US/CA: Detach the emergency handle from the trim. Detach the wire from the emergency handle.
  4. Slightly bend aside the trim from the cover on the lock.
  5. Loosen the trim guide clips and lift away the trim from the boot lid.
  6. Remove the lamp housing nuts.

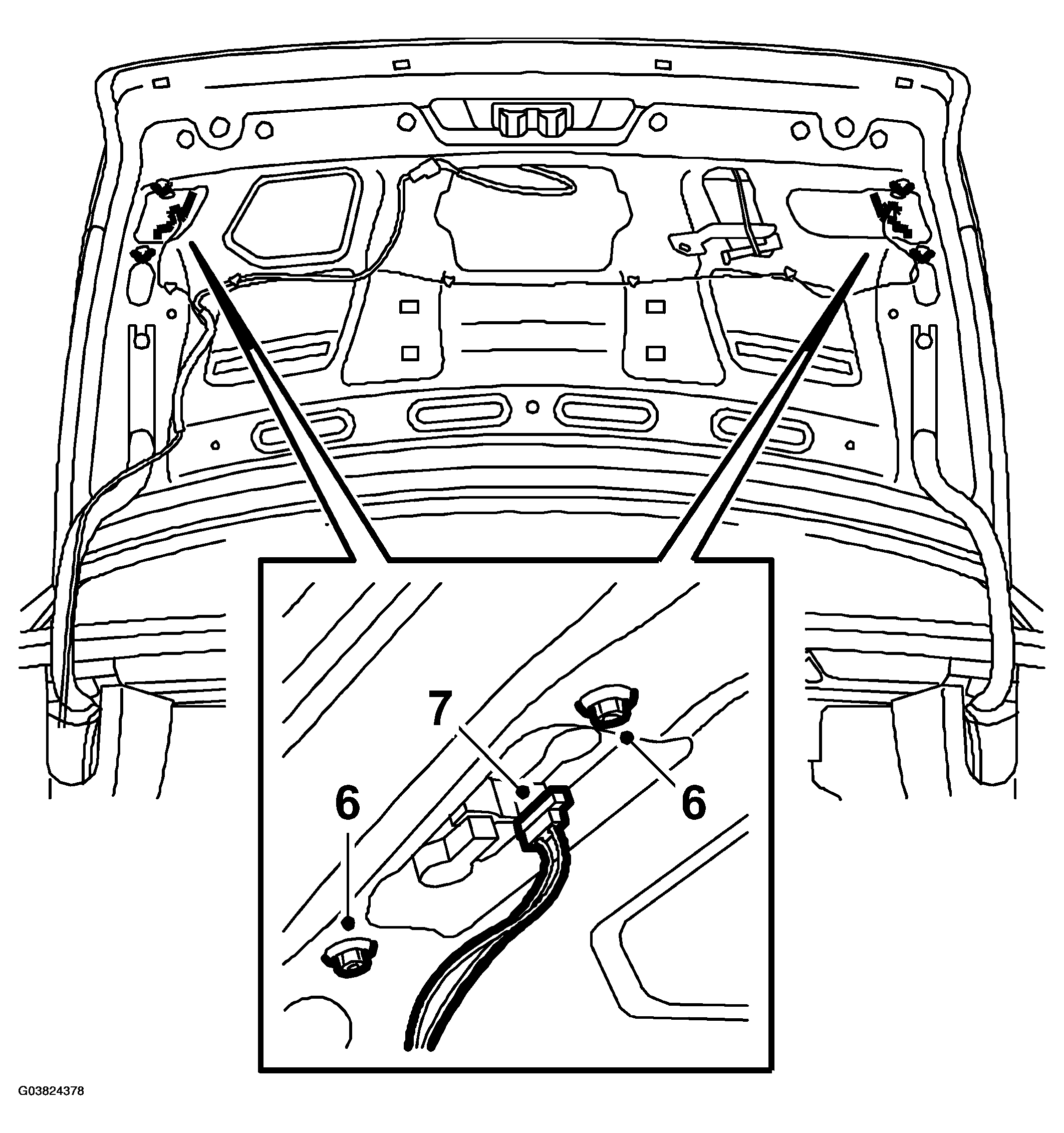

    Fig 2: Illustration For Step 6-7
    G03824378Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Separate the connector.
  8. Remove the lamp housing.
