Home › Saab › 2005 › 9-3 Linear, 2D Convertible, Standard › Repair and Diagnosis › Electrical › Horns › Lighting And Signaling Systems › Adjustment / Replacement › Load angle sensor, front › To fit

To fit

  1. Plug in the connector.

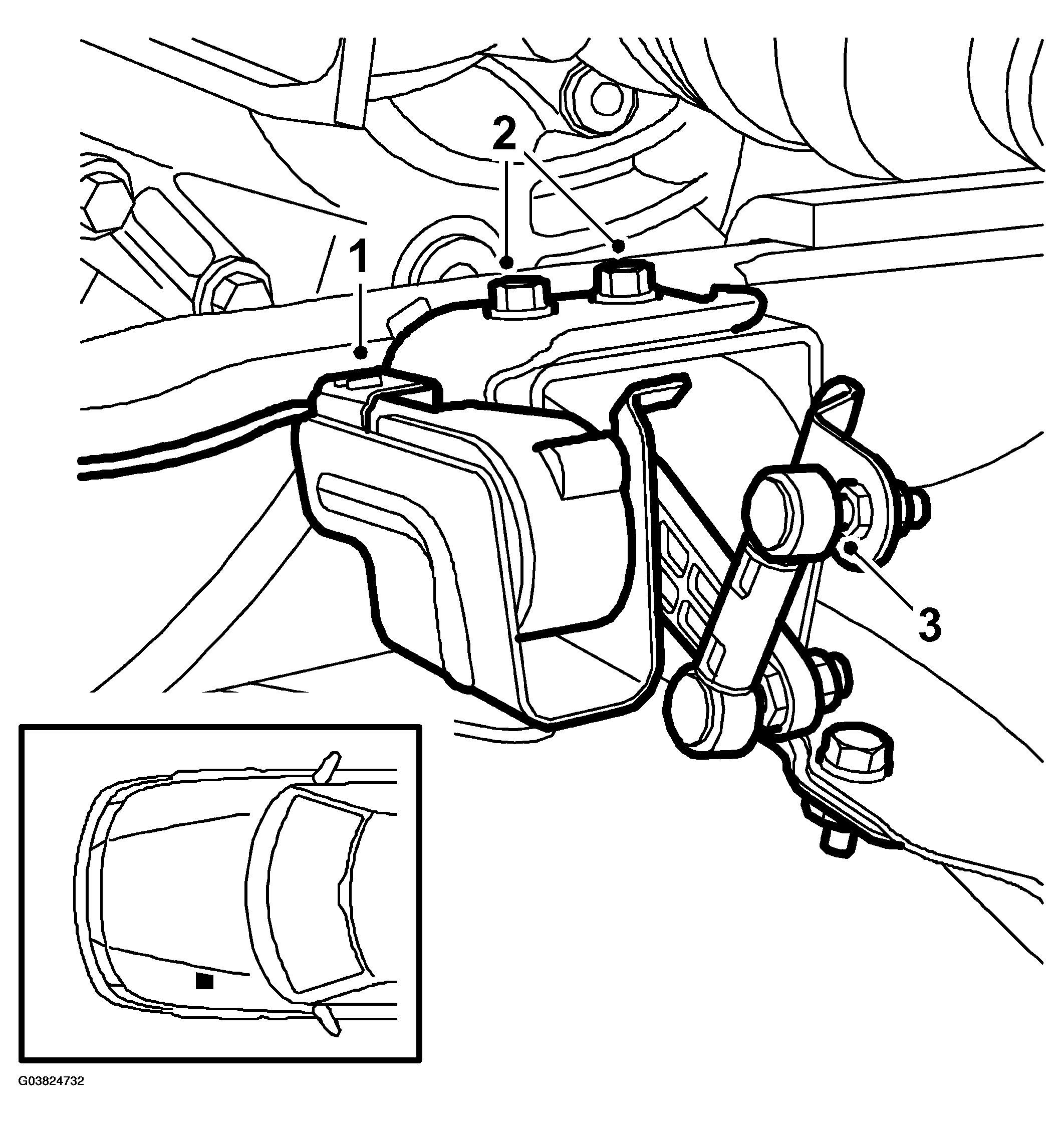

    Fig 1: Installing Load Angle Sensor, Front
    G03824732Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refit console with sensor.
  3. Refit upper ball section in link arm.
  4. Carry out AHL control module calibration  .
