Home › Saab › 2005 › 9-3 Linear, 2D Convertible, Standard › Repair and Diagnosis › Electrical › Horns › Lighting And Signaling Systems › Component Location › Crimp J10, front harness › Notes

Crimp J10, front harness: Notes

Location:  Approx. 230 mm from branching point grounding point G31 towards LH headlamp

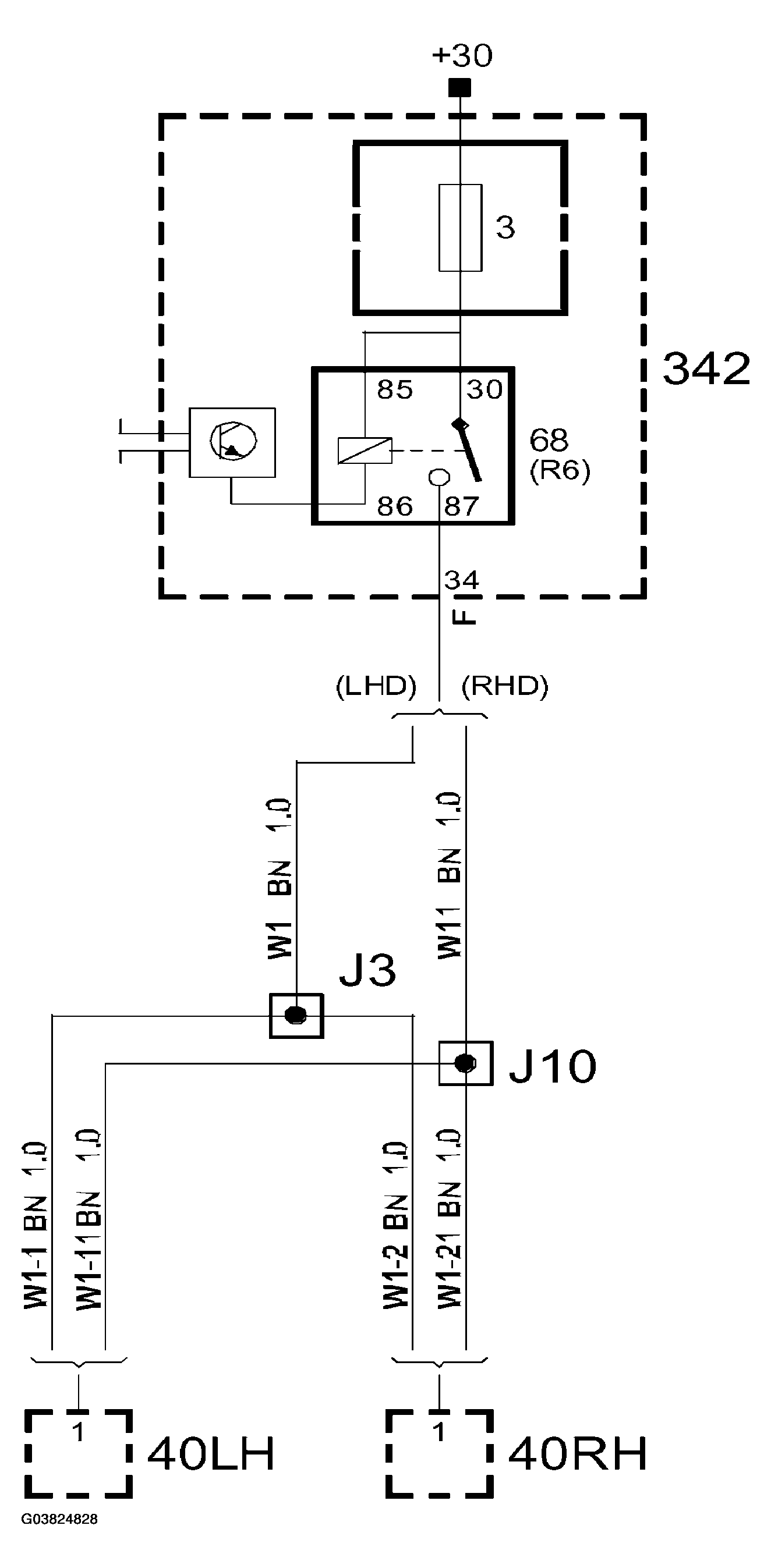

Fig 1: Crimp J10, Front Harness Circuit
G03824828Courtesy of SAAB-SCANIA OF AMERICA, INC.
